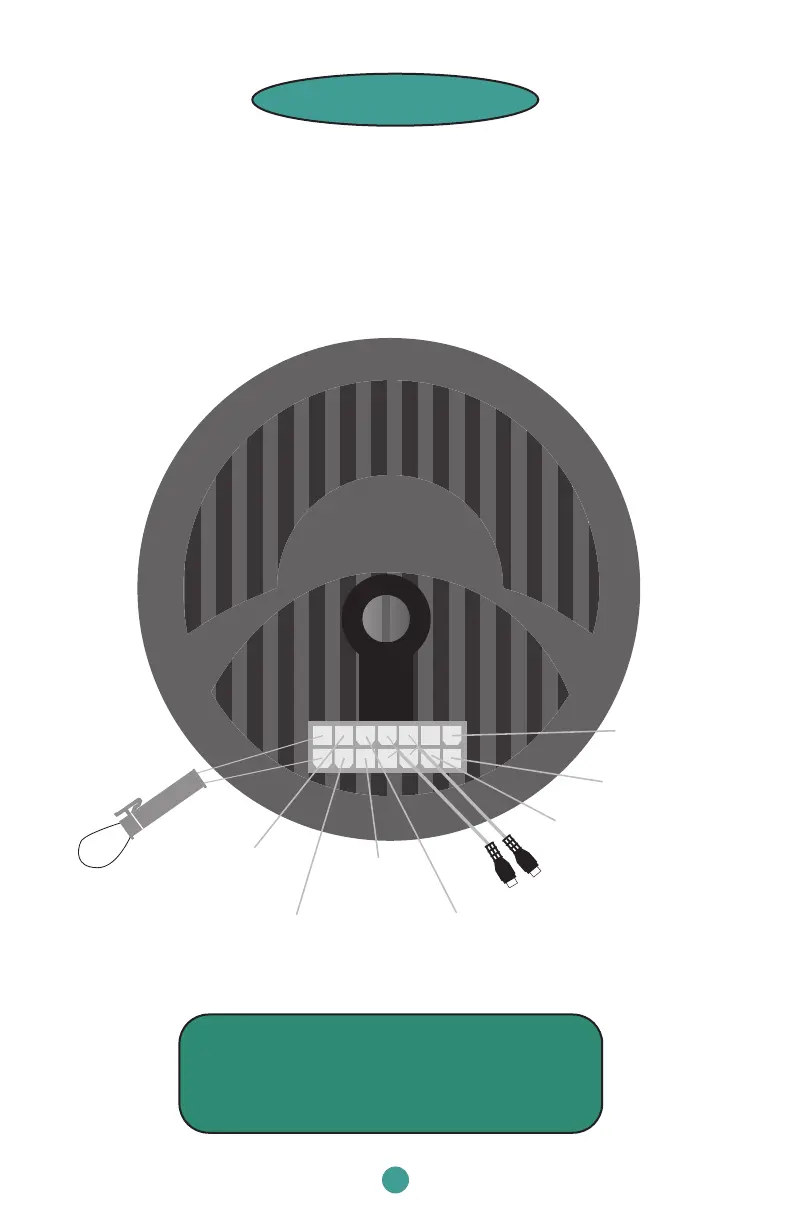

Bazooka EL10A - Wiring Diagram

OUT
HI+
HI-a HI-b
RCA-a
RCA-b
REMOTE
OUT
HI-
HI+a
HI+b
RCA+a
RCA+b
LEVEL
GRAY/TRACE
HI-LEV
INPUT (-)
GN/TRACE
HI-LEV
INPUT (-)
ORANGE
REMOTE
QUICK
DISCONNECT
YELLOW ON/OFF
JUMPER LOOP
GRAY
HI-LEV
INPUT (+)
GREEN
HI-LEV
INPUT (+)
RCA
PHONO PLUGS
Right & Left Low
Level Inputs
16 GAUGE
BLACK CHASSIS
GROUND
16 GAUGE RED
BATTERY (12v+)
NOTE:
REMOVE AUTO TURN-ON LOOP TO USE ORANGE
REMOTE WIRE FOR NORMAL REMOTE TURN-ON
WIRING DIAGRAM
9
When using high level inputs, take the time after you make all wiring con-
nections to run through the AM I IN PHASE procedure of this manual to
confirm that your inputs are in correct electrical phase and the proper bass
response is being produced.
6
1. With the top side of
the buckle facing up
(see figure 4), lace the
strap through the
mounting base as illus-
trated in figure 5.
2. After the strap is com-
pletely laced through
the mounting base,
make a loop with the
strap, where it runs
across the middle of
the base as illustrated
in figure 6. This loop
is necessary to access
the two mounting
holes in the base.
MOUNTING THE BAZOOKA
Bottom
Top
Figure 4
Figure 5
Figure 6
