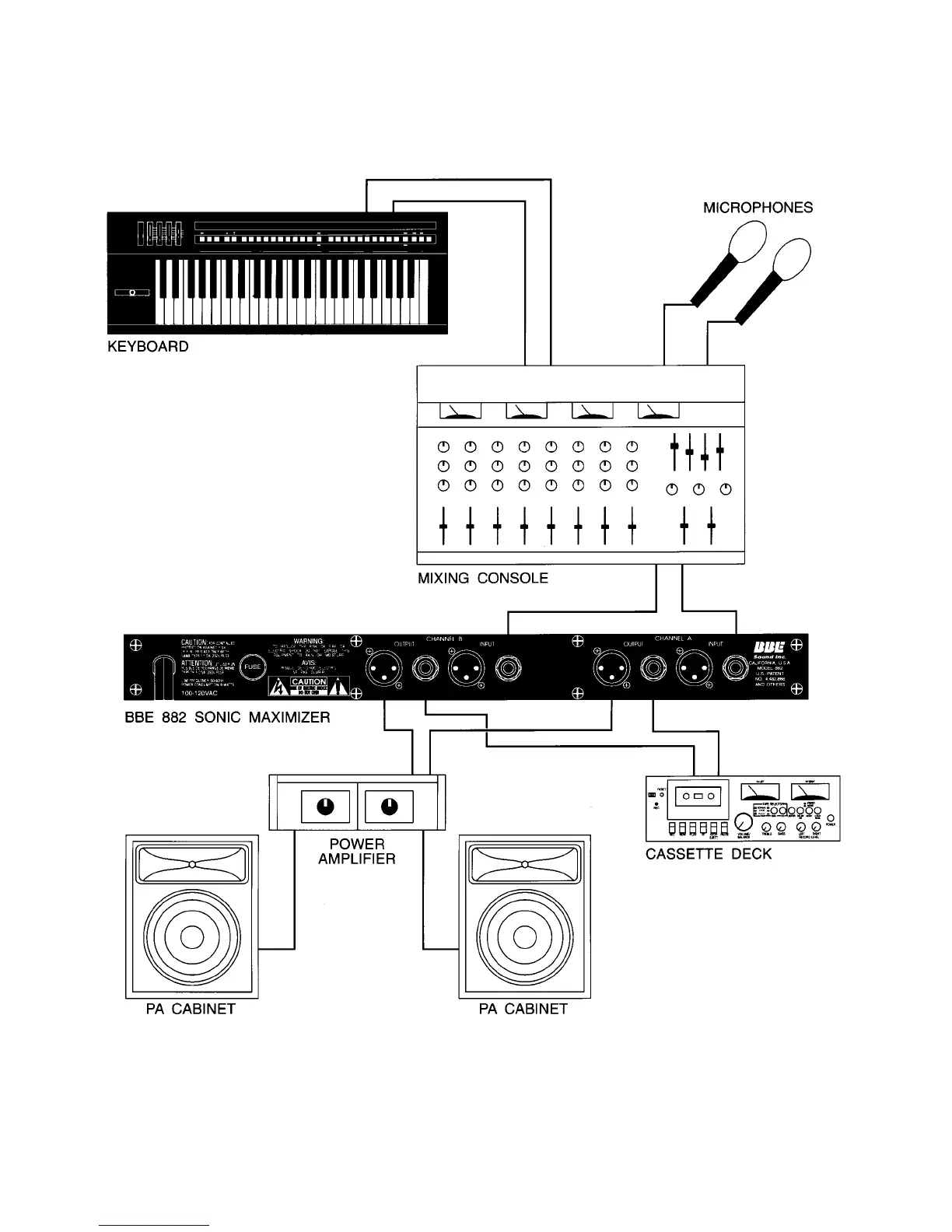

LIVE APPLICATION: NON-POWERED MIXER
6
Connect the BBE 882 to the output of the mixing console. The output of the BBE will drive
either a crossover or a power amplifier directly. (If an equalizer is being used, refer to “BBE and
Equalization” section under “General Operation.”)
