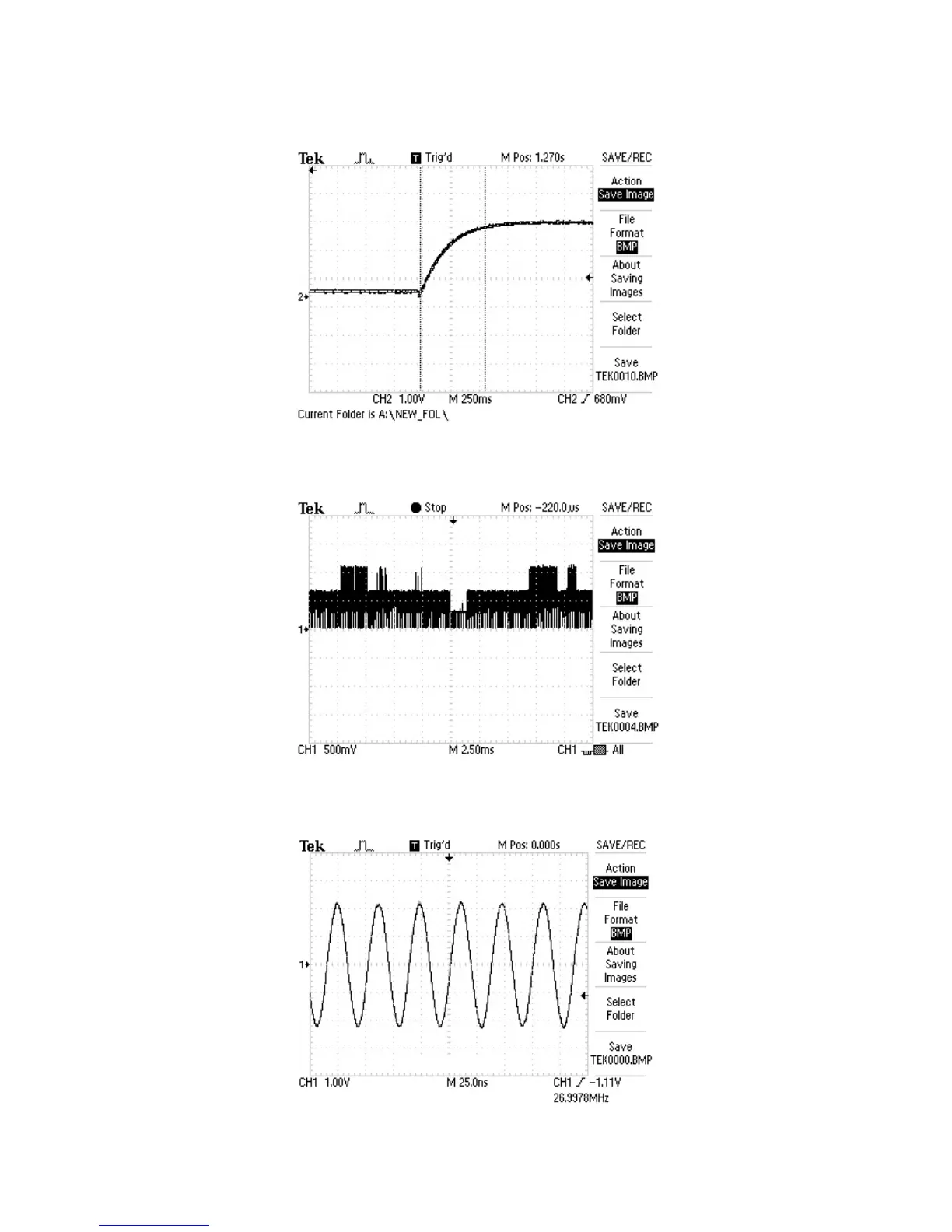

9. Reset signal URST waveform diagram.
10. Video signal waveform diagram.
11. 1KHZ audio signaal output waveform diagram(it is suggested to use test disc,if not,waveform
tested will change at any time,which will affect your judgment).
Vpp=4.60V
