LCD TV Service Manual
LCD26W57：

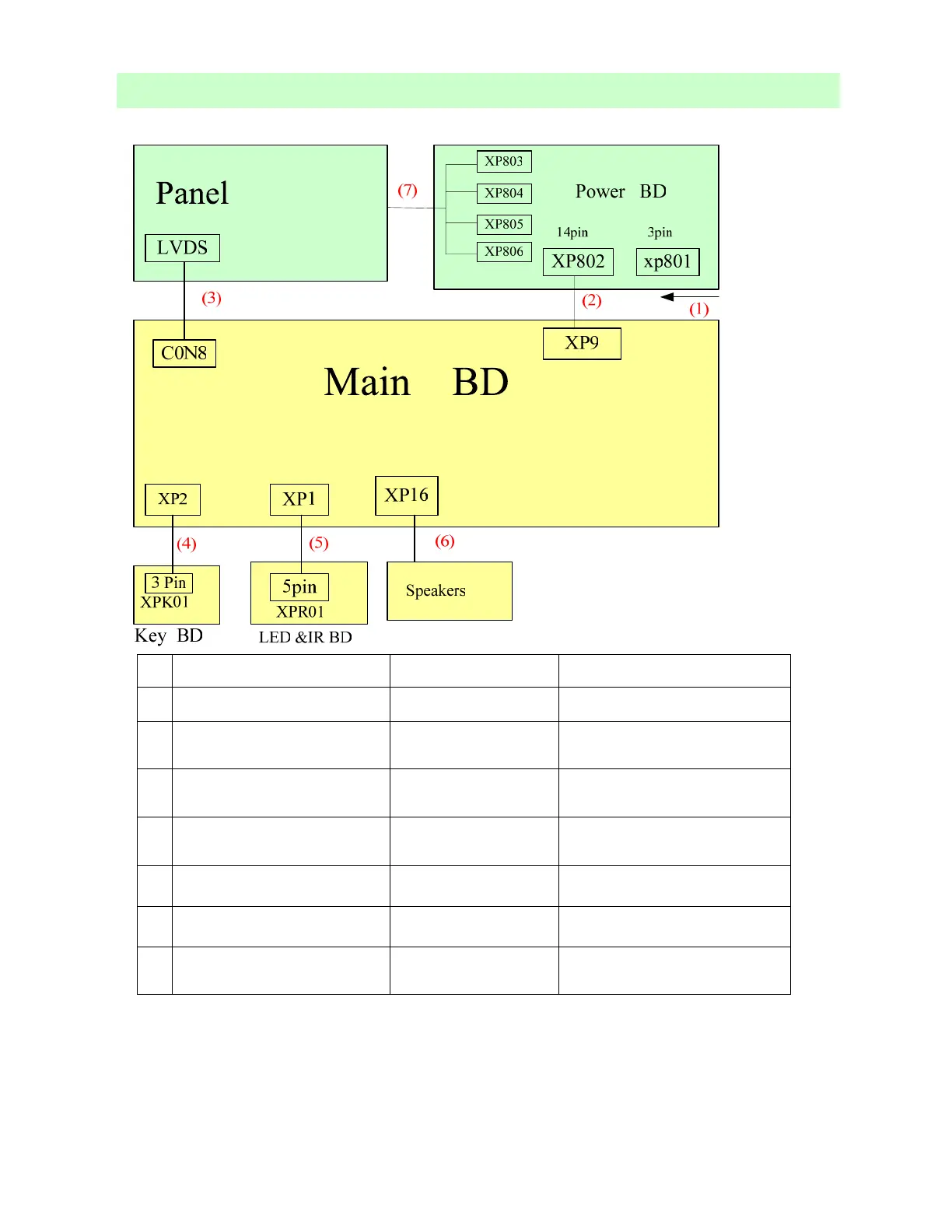

No DESCRIPTION SPECIPICATION NOTE
1
Main Power TJC2-3Y-250-2\ROH Power Inlet-->Power BD XP801
2
5V,12V power and communication
between Main BD and Power BD
TJC10T-14Y-450\ROH Power BD XP802<-->Main BD XP9
3
LVDS signal FPC-45-320-1\ROH Main BD C0N8<-->Panel
4
Buttons TJC10T-3Y-650\ROH Main BD XP2<--> Key BD XPK1
5
IR &Led TJC10T-5Y-400\ROH Main BD XP1<-->IR BD XPR01
6
Audio out put (R/L) TJC3H-4Y-650-900\ROH Main BD XP16<-->Speaker L/R
7
Back light power The connectors on the Panel
Power BD XP803、 XP804、XP805、
XP806<-->Panel
