- 17 -
LCD TV Service Manual
LCD32W57
：

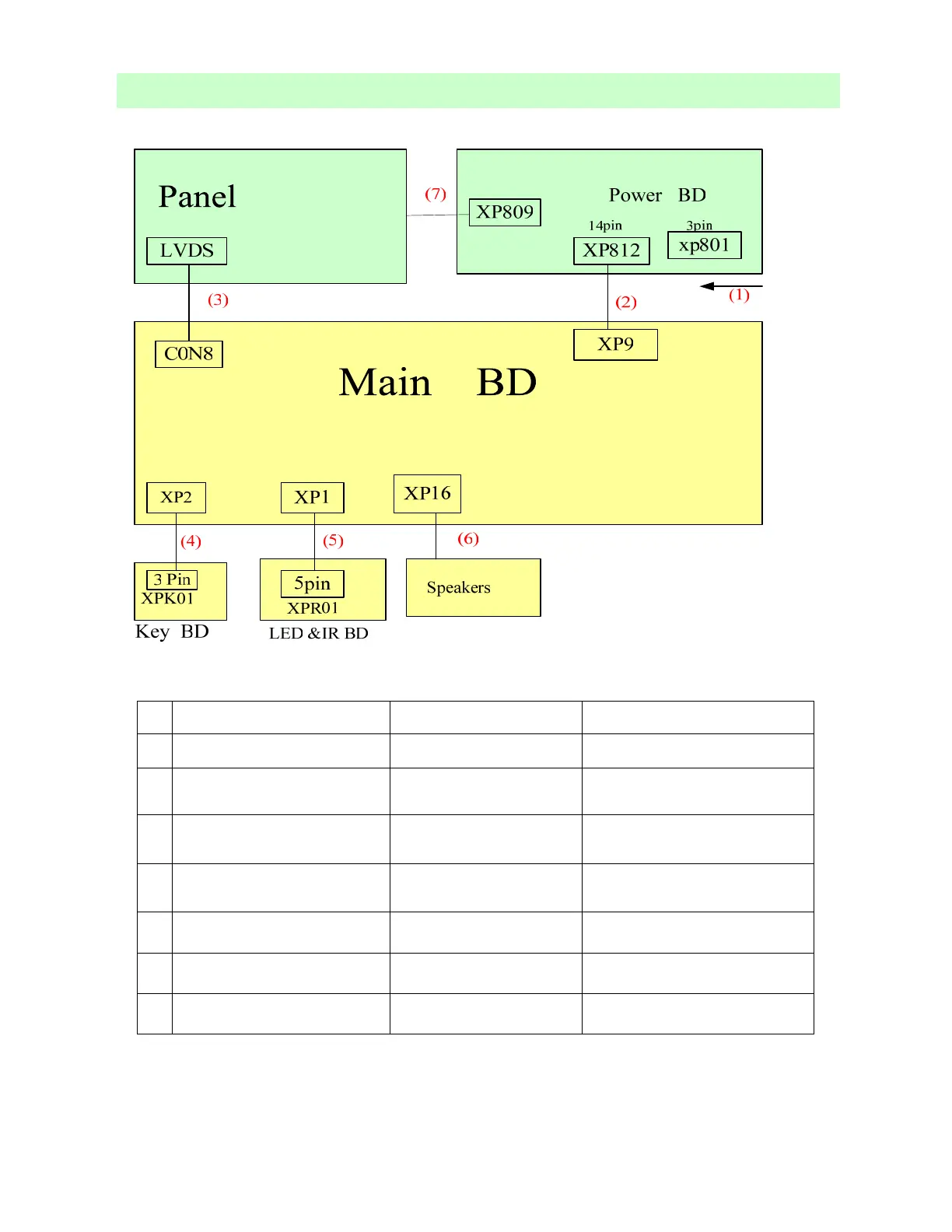

No DESCRIPTION SPECIPICATION NOTE
1
Main Power TJC2-3Y-250-2\ROH Power Inlet-->Power BD XP801
2
5V,12V power and communication
between Main BD and Power BD
TJC10T-14Y-150\ROH Power BD XP812<-->Main BD XP9
3
LVDS signal HX2-2x15KLB350P-CMO\ROH Main BD C0N8<-->Panel
4
Buttons TJC10T-3Y-650\ROH Main BD XP2<--> Key BD XPK1
5
IR &Led TJC10T-5Y-400\ROH Main BD XP1<-->IR BD XPR01
6
Audio out put (R/L) TJC3H-4Y-800-600\ROH Main BD XP16<-->Speaker L/R
7
Back light power HX-3006B550\ROH Power BD XP809<-->Panel
