Bdcom S2510-C - Chapter 1 BDCOM S2510-C Introduction; Appearance Description for Standard Configuration

BDCOM S2510-C Hardware Installation Manual
- 1 -
Chapter 1 BDCOM S2510-C Introduction
The section describes the characteristics and parameters of BDCOM S2510-C and
gives an overview of BDCOM S2510-C.
1.1 Appearance Description for Standard Configuration
The built-in ports of BDCOM S2510-C are: 8 gigabit TX ports, 2 GSFP and 1 CLI
port. See table 1-1.
Table 1- 1 Attributes of the built-in port
Port
Attribute
1000M TX port
RJ45 interface, with LINK/ACT/Speed indicator
GSFP interface
GSFP interface, with LINK/ACT indicator
CLI port
A rate of 9600bps, RJ45 interface
Besides, BDCOM S2510-C switch has one grounding column and one power input at
its back.

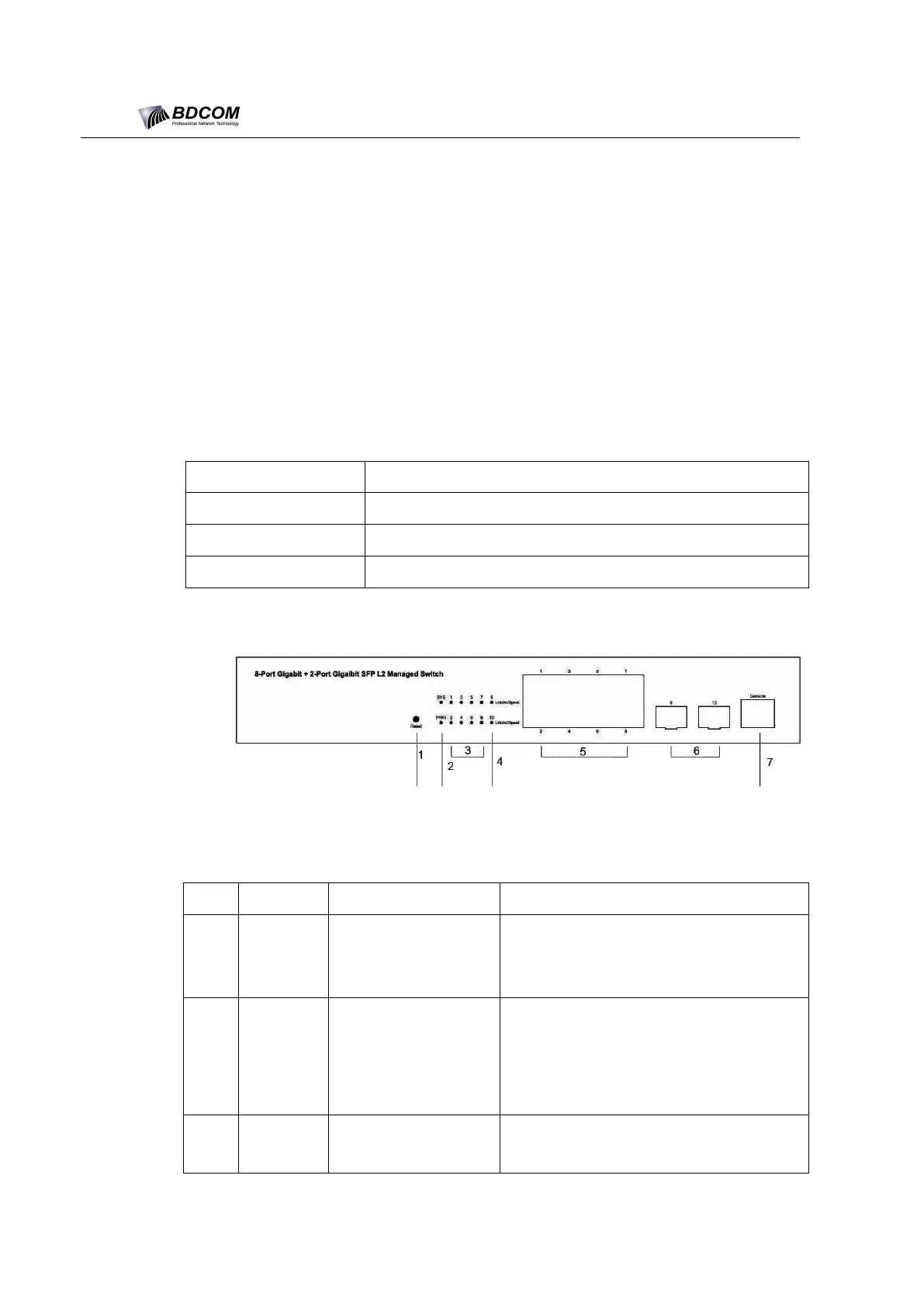

Figure 1- 1 Front template of the BDCOM S2510-C switch
Table 1- 2 Parts at the front template of the BDCOM S2510-C switch
No.
Abbrev.
Name
Description
1
Reset
Reset
Keep the device powered on, press the
button “Reset” for 6s, and the system will
return to the default setting.
2
PWR
SYS
Power indicator &
System indicator
If the switch is powered on, the indicator
is on.
If the switch is started, the system
indicator flickers.
3
1-8
Link/Act indicator on
each port
Always on in orange: 10/100M
