BDCOM S2510-C Hardware Installation Manual
- 2 -
Always on in green: 1000M
Off: no signal transmission
4
9-10
Link/Act indicator on
GSFP port
Always on in green: 1000M
Off: no signal transmission
5
RJ45
Gigabit TX port 1-8
8 gigabit TX ports
6
GSFP
Gigabit optical port
9-10
2 GSFP interfaces
7
CLI
Console port
It can be used to connect a computer or
a terminal for monitoring and configuring
the switch.

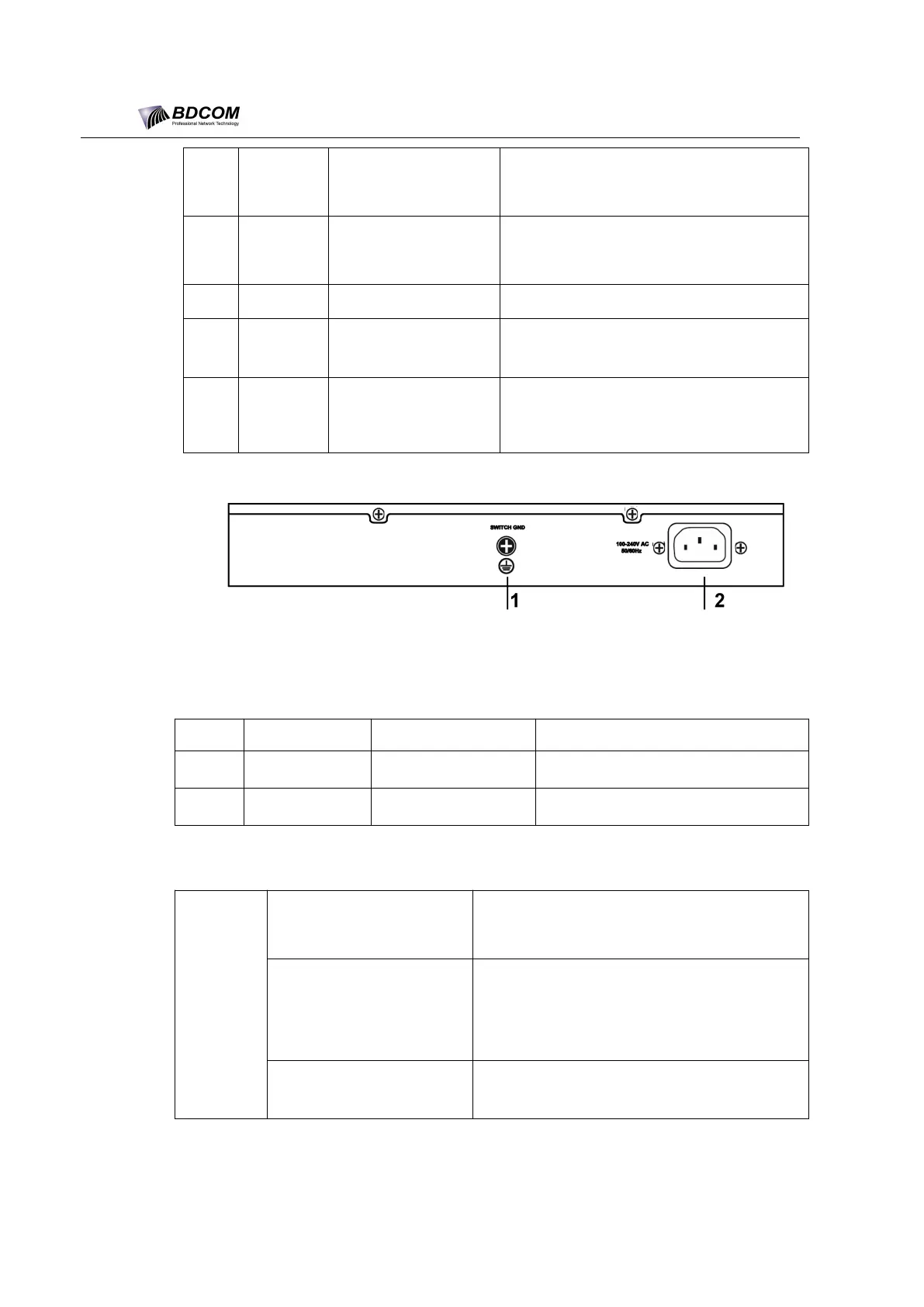

Figure 1- 2 Back template of the BDCOM S2510-C switch
Table 1- 3 Parts at the back template of the BDCOM S2510-C switch
No.
Abbrev.
Name
Description
1
/
Grounding column
The grounding must be fine.
2
/
AC power socket
AC100～240V
1.2 BDCOM S2510-C Systematic Characteristic Parameters
Hardware
characteri
stics
Memory
Flash: 16M Bytes;
Memory: 128M Bytes;
Standard configuration
8 gigabit TX ports;
2 gigabit GSFP ports
1 CLI port
Dimensions mm
(W×D×H)
280×180×44
