S2928 Hardware Installation Manual
- 11 -
set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.
The RJ45 connector of the console port is shown in Figure 3-3. The RJ45 plug
corresponds to the RJ45 socket, whose pins can be aligned from left to right with the
value from 1 to 8.

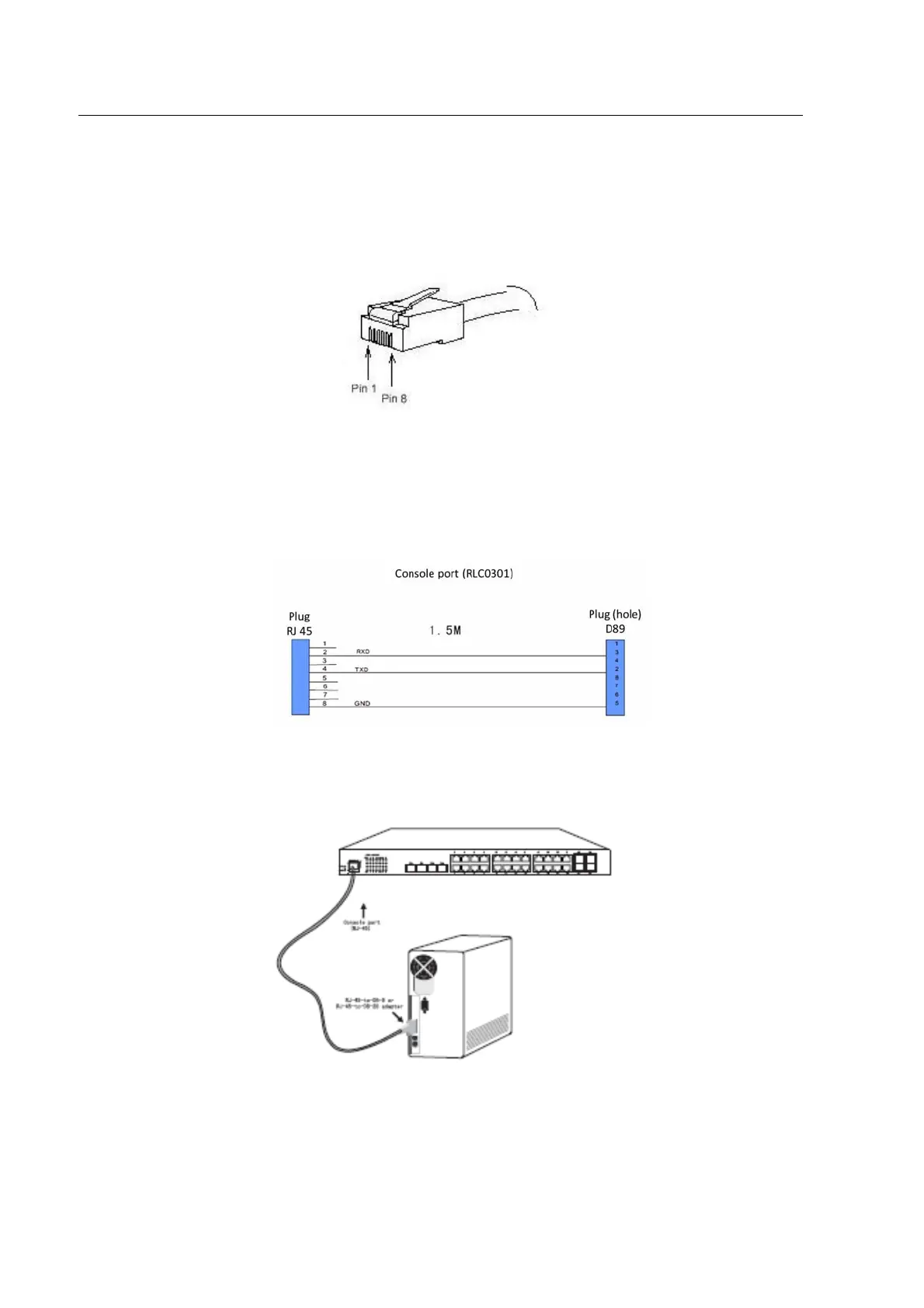

Figure 3-3 RJ-45 connector of the console port
The other end of the console port is 9-hole plug. RJ45 connects to DB9 in the console
port shown as below.
Figure 3-4 Cable connection at the console port
Figure 3-5 Connecting the console port of S2928 and computer
