S2928 Hardware Installation Manual
- 13 -
Because 24 10/100/1000Base-T ports of S2928 support the MDI/MDIX
self-identification of the cable, S2928 can adopt five types of direct-through/cross
network cables when it connects other Ethernet terminals.

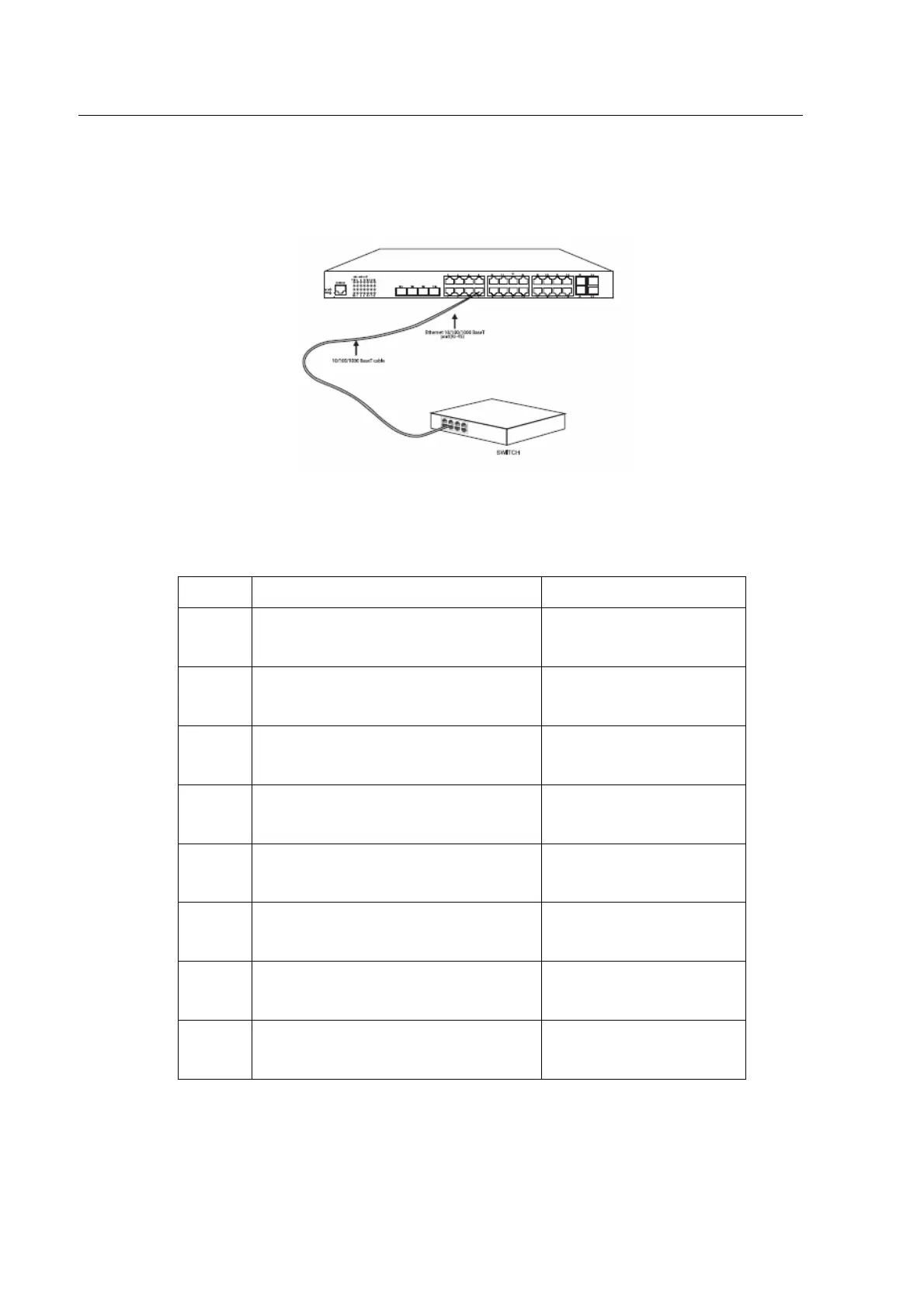

Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals
Table 3-2 Pins of gigabit RJ45
No. Pin Name English Name
1 Sending/receiving the normal phase
of data 0
TP0+
2 Sending/receiving the paraphase of
the data 0
TP0-
3 Sending/receiving the normal phase
of data 1
TP1+
4 Sending/receiving the normal phase
of data 2
TP2+
5 Sending/receiving the paraphase of
the data 2
TP2-
6 Sending/receiving the paraphase of
the data 1
TP1-
7 Sending/receiving the normal phase
of data 3
TP3+
8 Sending/receiving the paraphase of
the data 3
TP3-
