S2956 Hardware Installation Manual
- 10 -
set to a rate of 9600bps, eight data bits, one stop bit, no sum check bit and traffic
control.

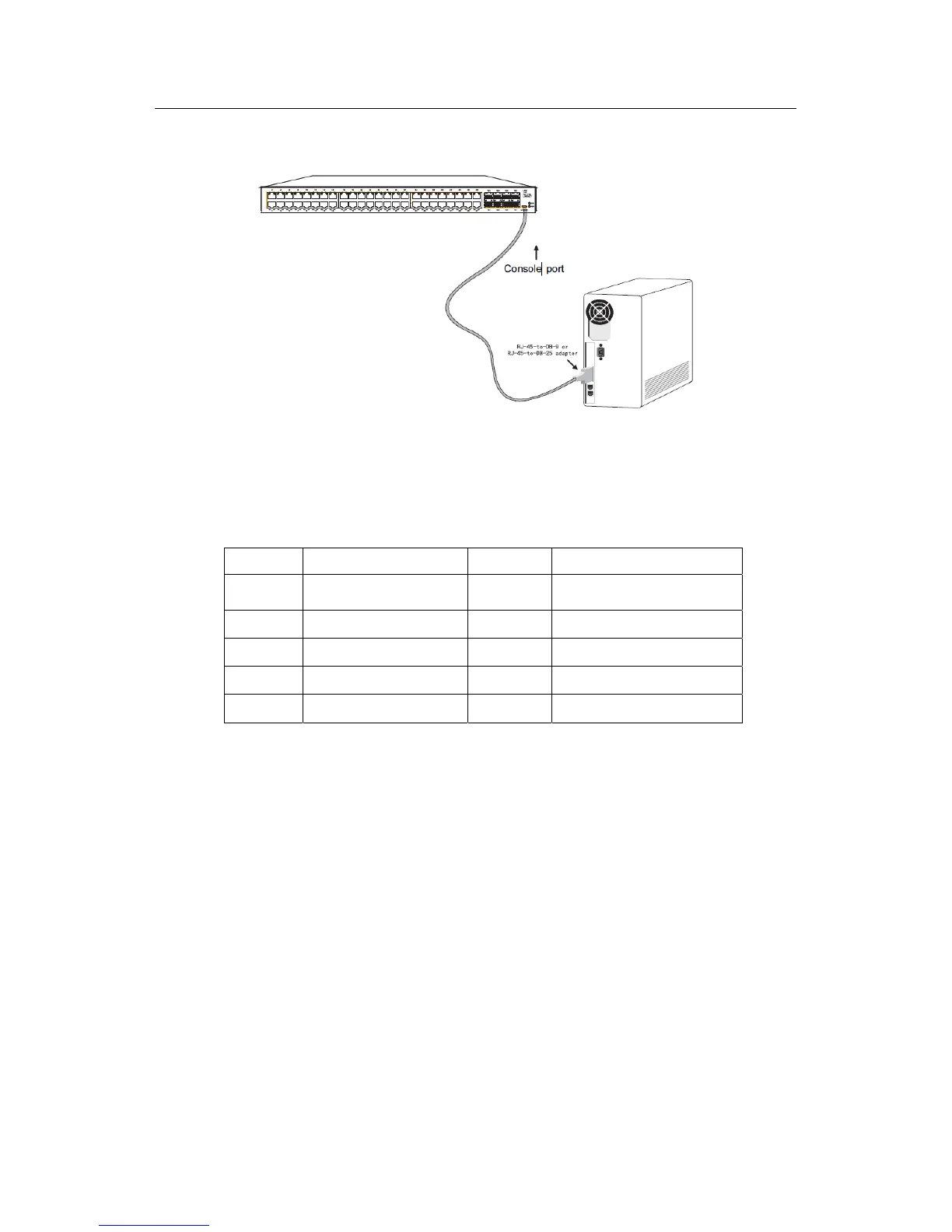

Figure 3-3 Connecting the console port of S2956 and computer
Note: The switch shown in the previous figure does not represent real S2956 switch.
Table 3-1 Definition of the pins of the console port
No. Name Symbol Remarks
1 Data receiving RXD Input
2 No connect
3 Signal ground SG GND
4 No connect
5 Data transmitting TXD Output
Note:
Because the console port of S2956 bears no flow control, you need to set Data flow
control to none when using a superior terminal to manage S2956 configurations, or the
single-pass problem will arise from the superior terminal.
Otherwise, the single-pass problem will arise on the super terminal. The cable is used
to connect the console port of the S2956 switch and the outside console terminal
device. One end of the cable is a mini-USB plug and the other end is a 9-hole plug
(DB9). The RJ45 plug is put into the socket of the console port on the S2956 switch.
The inner line connection in the cable is shown in figure 3-4. The console cable is
numbered as RLC0301.
