S2956 Hardware Installation Manual
- 9 -
3.2.1 Installing the Chassis on the Desk
S2956 can be directly put on the smooth and safe desk.
Note:
Do not put things weighing 4.5 kg or over 4.5 kg on the top of the switch.
3.2.2 Installing the Chassis on the Cabinet
The chassis of the switch is fixed on the cabinet through the brackets. When you fix
the brackets, the front template of the switch faces forward. The detailed operations
are shown in Figure 3-1.

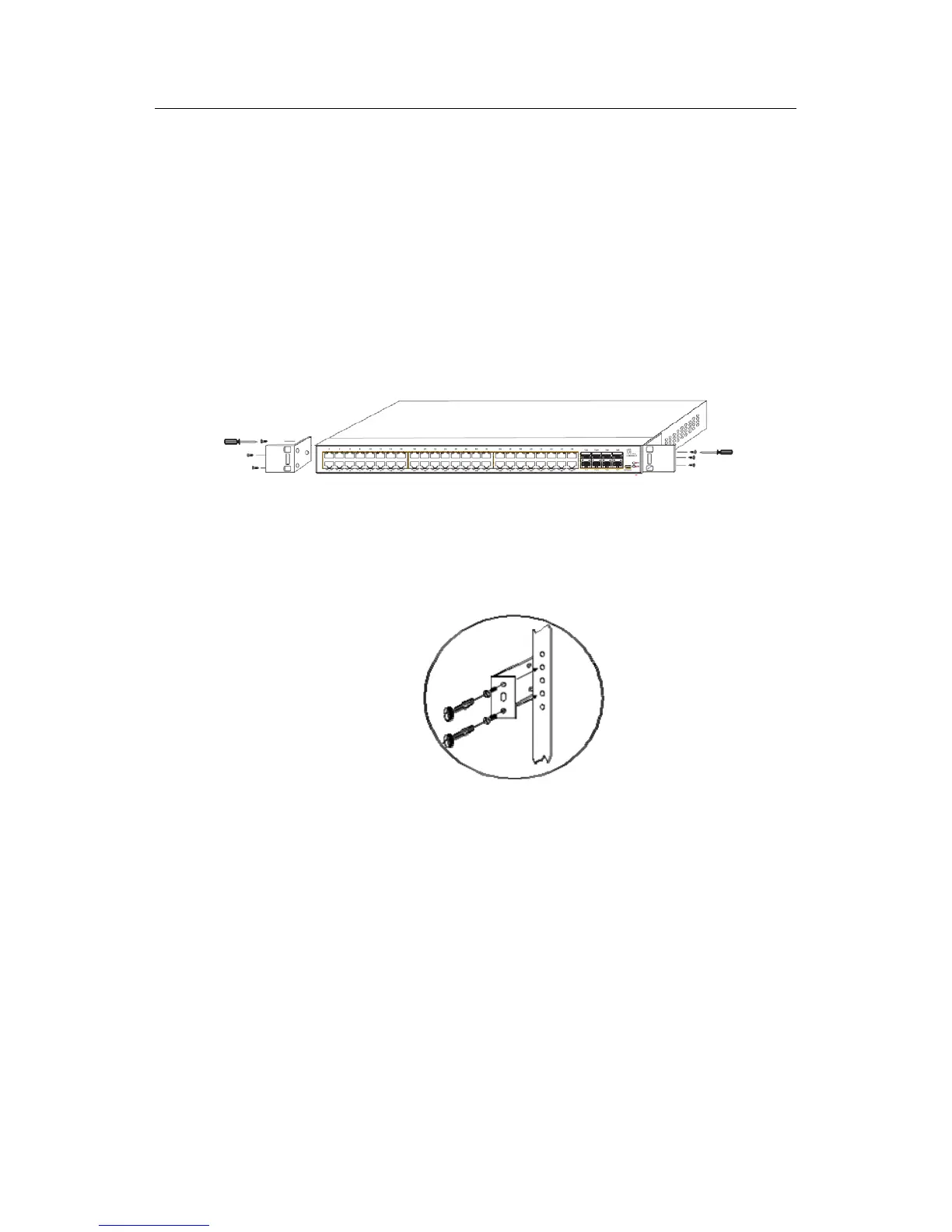

Figure 3-1 Fixing the chassis of the switch
Note: The switch shown in the previous figure does not represent real S2956.
After the brackets are installed, install the switch on the cabinet. See Figure 3-2.
Figure 3-2 Installing the switch on the cabinet
3.3 Connecting the Port
3.3.1 Connecting the Console Port
The switch of S2956 has a Console port.
The rate of the console port is a value ranging from 1200bps to 115200bps. It has a
standard RJ45 plug. After you connect the console port to the serial port of PC through
a console cable, you can configure and monitor the switch of S2956 by running a
terminal emulation software, such as super Windows terminal. The cable is provided
according to the host. The communication parameters of the terminal serial port can be
