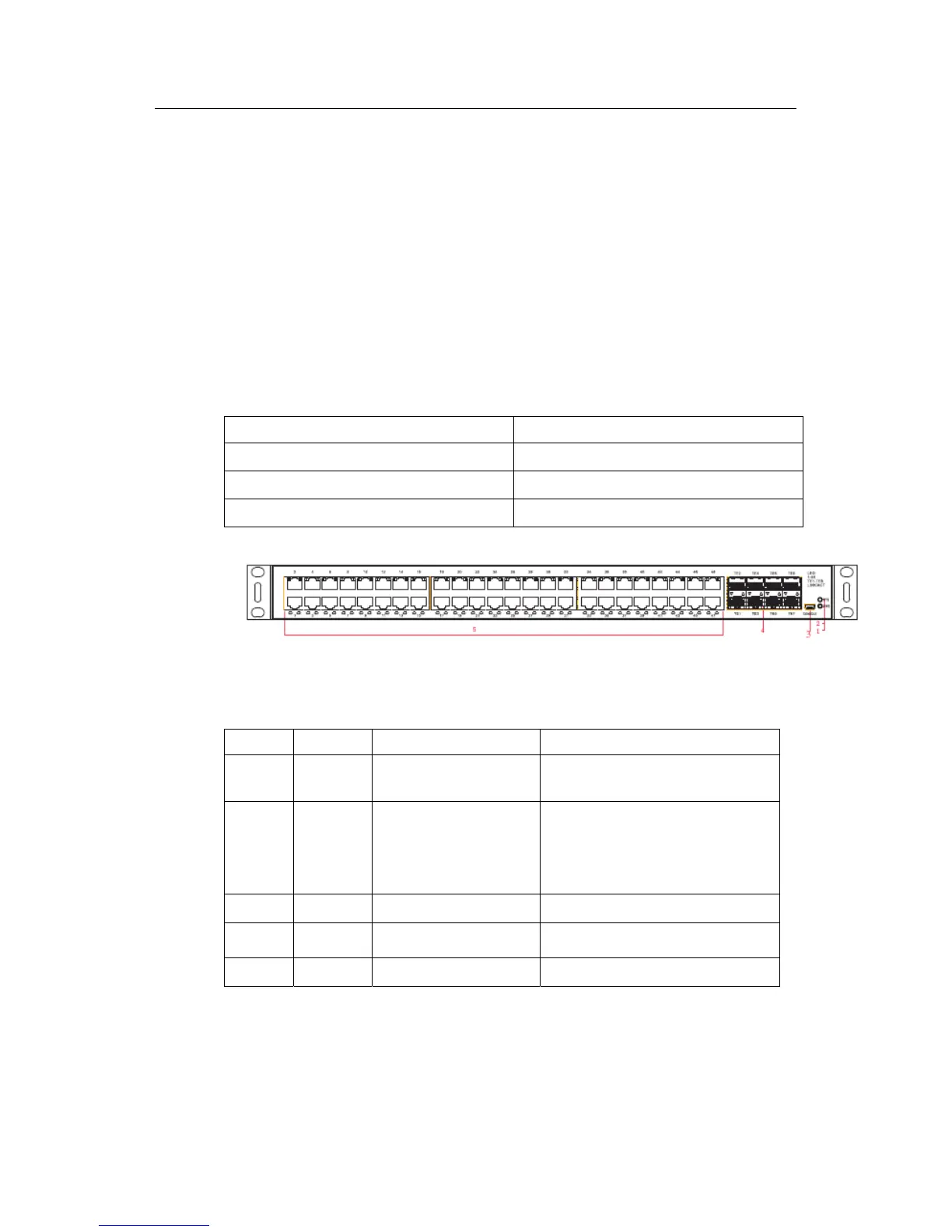

Page #3 background imageLoading...
Page #3 background image
S2956 Hardware Installation Manual
- 1 -
Chapter 1 S2956 Switch Intro
The document describes the characteristics and parameters of S2956 and gives an
overview of S2956 .
1.1 Standard Configuration
The accessory ports of S2956 are formed of 48 1000M-Ethernet RJ45 ports, 8 10G
SFP+ ports and one console port. See table 1-1.
Table 1-1 Attributes of the necessary ports
Port Features
Gigabit Ethernet port UTP (RJ45) port with the LINK/ACT indicators
Gigabit Ethernet port SFP+ port: having LINK/ACT indicators
Console port An RJ45 port with a rate of 9600 bps
Additionally, S2956 has a grounding column, a socket and a power on-off at its back.
Figure 1-1 Front template of the S2956 switch
Table 1-2 Parts at the front template of the S2956 switch
No. Abbrev. Name Remarks
1 PWR
Power LED
If the switch is powered on, the indicator
is on.
2 SYS
System LED
If the LED is always on, the system is
being started.
If the LED flickers, the system works
normally.
3 CONSOLE Console port Manages the switch locally.
4
8 10G SFP+ optical ports
5 48 gigabit TX ports
