Installing the exhaust pipe
Screw the exhaust pipe (exhaust fittingend) into the exhaust port on the rear panel
(counterclockwise).

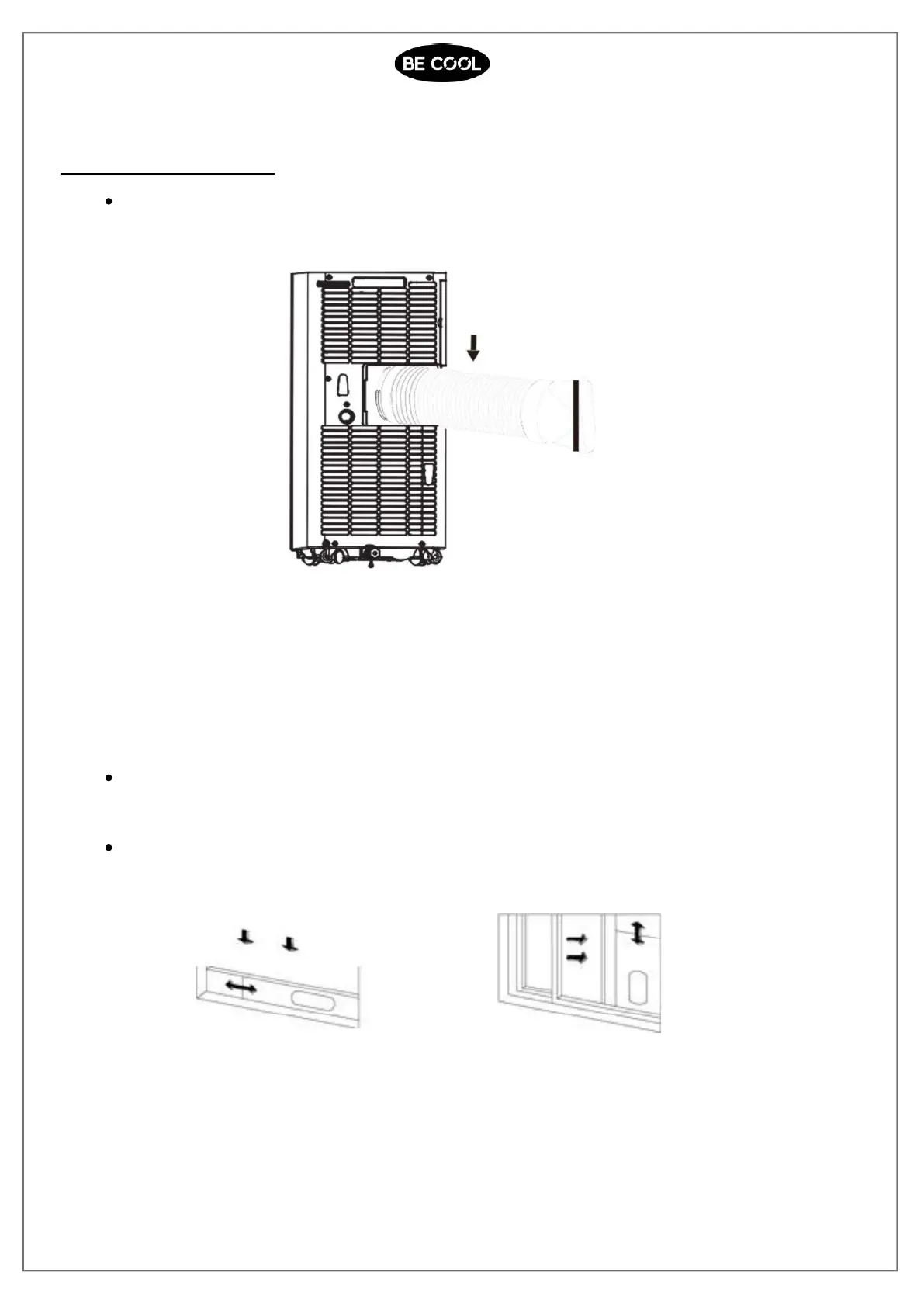

Figure 1
Installing the window sealing plate assembly
Open the window to the half and mount the window sealing plate to the window frame
(as shown in Figure 2 and 3); the assembly can be placed in horizontal and vertical
direc- tion.
Adjust the opening distance of the window sealing plate to bring both ends of the plate
into contact with the window frame and fix the various components of the assembly.
Figure 2
Figure 3
