7.4 Filtre à air
1. Retirez les vis (1), puis enlevez le couvercle (2).
(4).
3. Retirez la cartouche en mousse (5).
4. Lavez la cartouche en mousse dans du solvant, puis faites-la
sécher.
5. Huilez la cartouche en mousse, puis pressez l’excédent d’huile. La
cartouche en mousse doit être humide, mais ne doit pas former de
gouttes.
AVIS
• Pressez la cartouche en mousse, mais ne l’essorez pas. Cela
pourrait la déchirer.
CONSEIL: Veillez à ce que la surface de scellement de la cartouche
aucune fuite d’air.
MAINTENANCE
Be sure no foreign material enters the crankcase.
8. Install the oil filler cap.
9. Install the cover and tighten the screws.
- 29 -

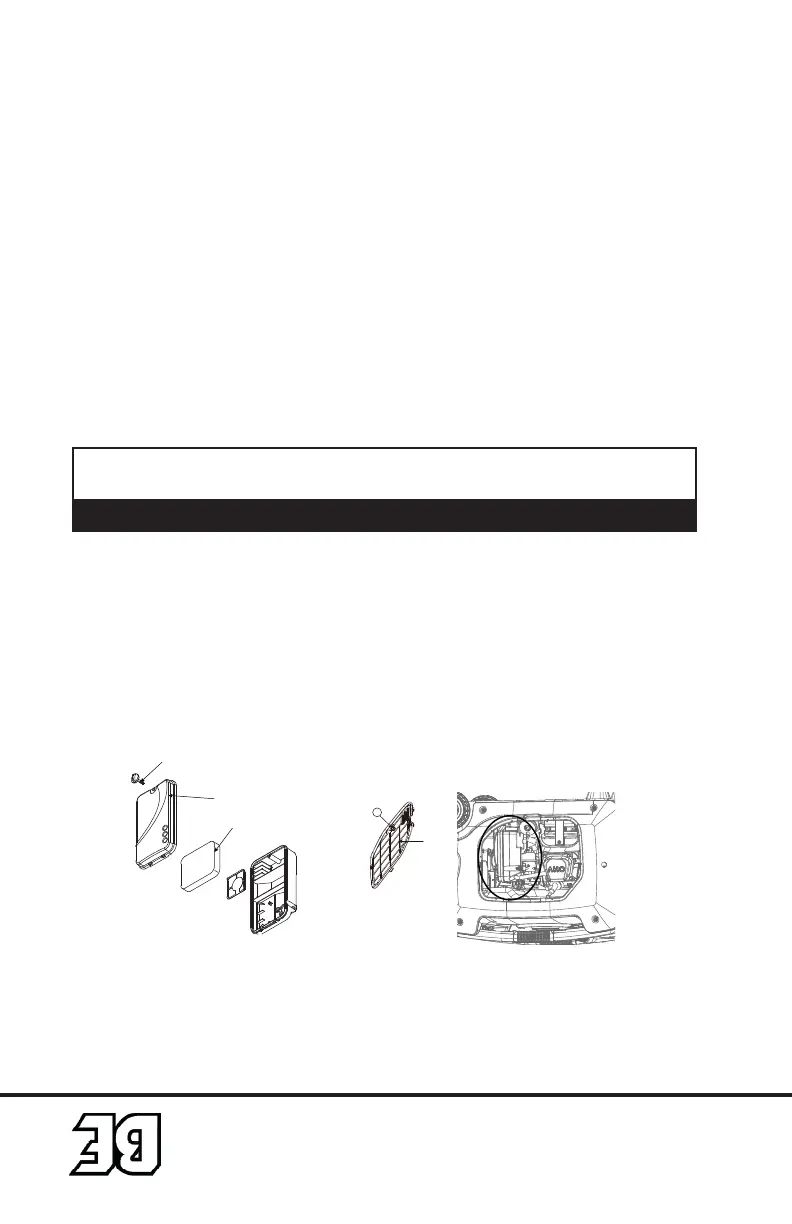

6 .4 Air filter
1. Remove the screws ①, and then remove the cover ②.
2. Remove the screw ③
③
and then remove the air filter case cover ④.
④
3. Remove the foam element .
4. Wash the foam element in solvent and dry it.
5. Oil the foam element and squeeze out excess oil.
The foam element should be wet but not dripping.
Do not wring out the foam element when squeezing
it. This could cause it to tear.
6. Insert the foam element into the air filter case.
TIP: Be sure the foam element sealing surface matcher
is no air leak.
Foam element
Foam element
the air filter so there
The engine should never run without the foam element; excessive piston
and cylinder wear may result.
7. Install the air filter case cover in its original position and tighten the screw.
8. Install the cover and tighten the screws.
