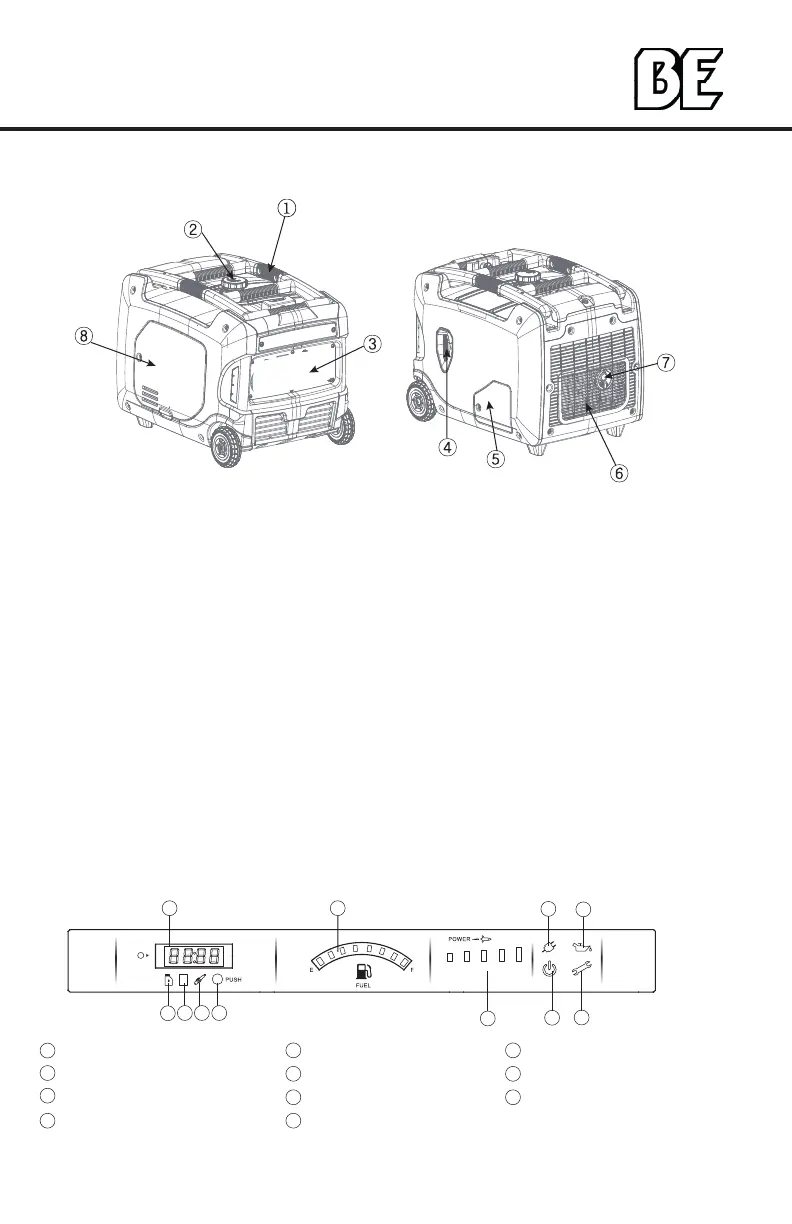

3. DESCRIPTION
DESCRIPTION
2 . DISCRIPTION
① Carrying handle
②
③
Fuel tank cap
④
Control panel
⑤
Recoil starter
⑥
Oil filler cap
⑦
Louver
⑧
Muffler
Spark plug maintenance cover
- 8 -
2 .1 Control panel
3. CONTROL FUNCTION
3.1 Switch knob
3.2 LED functions display(For electric start version)
① Engine switch \fuel valve “OFF”;
Ignition circuit is switched off. Fuel is switched off.
The engine will not run.
② Engine switch \fuel valve \ choke “ON”
Ignition circuit is switched on. Fuel is switched on. Choke is switched on.
The engine can be running.
③ Engine switch \fuel valve \ choke “CHOKE” ;
Ignition circuit is switched on. Fuel is switched on. Choke is switched off.
The engine can be start.
TIP: The choke is not required to start a warm engine.
;
- 10 -
ElectricRecoil
25% 50% 75% 100% 110%
Oil change indicator
Air cleaner maintenance indicator
Spark plug maintenance indicator
Switch button
Fuel level indicator
On-load indicator
Oil alert indicator
Inveter alert indicator
Inverter running indicator
Power display
Multi functional digital meter
4
4
3
3
5
5
6
6
7
7
8
8
9
9
10
10
11
11
2
2
1
1
3.1 LED Function Display (BE3600IE)
