BE P1815EN - Preparation and Assembly; Pre-Assembly Preparation; Assembly Instructions

6 7
1
D
A
2
A
E
AA
before turning the power washer
power to “ON”. Running the pump
dry will cause damage to the internal
components.
29. NEVER use a water supply to your
power washer that exceeds 150 PSI
maximum.
30. NEVER disconnect the high pressure
hose from the power washer while the
system is pressurized.
31. NEVER permanently engage the trigger
mechanisms on the spray gun.
32. NEVER operate the power washer
unless all components are properly and
securely connected.
33. NEVER allow the power washer pump
to run for more than one minute after
you have turned o the water supply.
This can cause the motor and pump to
overheat and fail.
34. NEVER use lances or other parts that
are not compatible for this specific AR
Blue Clean unit.
35. NEVER use an extension power cord
since it defeats the eectiveness of
the GFCI and increases the chance of
electrocuting the operator.
36. NEVER spray any electrical outlet with
your power washer.
37. Inspect the power cord before using.
DO NOT use it if it is damaged.
5
SAFETY INFORMATION
Double Insolated Product
SAFETY INFORMATIONSAFETY INFORMATION
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IMPORTANT: Store the power washer indoors to prevent
the water in the unit from expanding under freezing
conditions. When the water freezes and expands, your
power washer will be damaged and become inoperable.
Or, if storing outdoors, it is recommended you use pump
saver (not included) to protect pumps.
26. NEVER use hot water with your power washer. It will
overheat and damage the high pressure pump.
27. NEVER leave the power washer unattended while it
is powered “ON”.
28. ALWAYS turn the water supply “ON ” before turning
the power washer power to “ON”. Running the pump
dry will cause damage to the internal components.
29. NEVER use a water supply to your power washer
that exceeds 150 PSI maximum.
30. NEVER disconnect the high pressure hose from the
power washer while the system is pressurized.
31. NEVER permanently engage the trigger mechanisms
on the spray gun.
32. NEVER operate the power washer unless all
components are properly and securely connected.
33. NEVER allow the power washer pump to run for
more than one minute after you have turned off the
water supply. This can cause the motor and pump to
overheat and fail.
34. NEVER use lances or other parts that are not
compatible for this specic AR Blue Clean unit.
35. NEVER use an extension power cord since it defeats
the effectiveness of the GFCI and increases the
chance of electrocuting the operator.
36. NEVER spray any electrical outlet with your power
washer.
37. Inspect the power cord before using. DO NOT use it if
it is damaged.
Servicing of a Double-Insulated Appliance
Ground Fault Circuit Interrupter Protection:
This pressure washer is provided with a ground-fault
circuit-interrupter (GFCI) built into the plugs of the
power-supply cord. This device provides additional
protection from the risk of electric shock. Should
replacement of the plug or cord become necessary,
use only identical replacement parts that include GFCI
protection.
In a double-insulated product, two systems of insulation
are provided instead of grounding. Grounding means
are not provided for a double insulated product, nor
should grounding means be added to the product.
Servicing a double-insulated product requires extreme
care and knowledge of the system, and should only be
done by qualied service personnel.
Replacement parts for a double-insulated product must
be identical to the original parts.
A double-insulated product is marked with the words
“Double Insulation” or “Double Insulated”. Product may
also be marked with symbol shown here.
15ANR012 AR383S_1800PSI ENG-FR-SP.indd 5 16/12/17 下午2:28
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Servicing of a Double-Insulated
Appliance
Ground Fault Circuit Interrupter
Protection:
This pressure washer is provided
with a ground-fault circuit-
interrupter (GFCI) built into the
plugs of the power-supply cord.
This device provides additional
protection from the risk of electric
shock. Should replacement of the
plug or cord become necessary, use
only identical replacement parts
that include GFCI protection.
In a double-insulated product,
two systems of insulation are
provided instead of grounding.
Grounding means are not provided
for a double insulated product, nor
should grounding means be added
to the product.
Servicing a double-insulated
product requires extreme care
and knowledge of the system, and
should only be done by qualified
service personnel.
Replacement parts for a double-
insulated product must be identical
to the original parts.
A double-insulated product is
marked with the words “Double
Insulation” or “Double Insulated”.
Product may also be marked with
symbol shown here.
Power Unit Assembly
Slide the spray gun holster (D) onto
left side, when facing the unit, of
power washer unit (A).
Note: When placing the gun with the
lance attached, the nozzle will rest in
this tray.
Screw x 1
AA
AA
Screw
Qty. 1
Slip tab into slot and screw the
nozzle tray (E) on bottom left, when
facing the unit, of power washer
unit (A).
Secure with screw (AA).
Note: DO NOT use a power screw-
driver. When the screw is completely
tight, give a small final clockwise
twist of the screwdriver.
DO NOT overtighten.
Hardware Used:
PREPARATION
Before beginning assembly of
product, make sure all parts
are present. Compare parts
with package contents list and
hardware contents list. If any
part is missing or damaged, DO
NOT attempt to assemble the
product.
Estimated Assembly Time: 5
minutes
Tools Required for Assembly
(not included): Phillips
screwdriver
6
PREPARATION
PREPARATION
Before beginning assembly of product, make sure all
parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or
damaged, DO NOT attempt to assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): Phillips
screwdriver

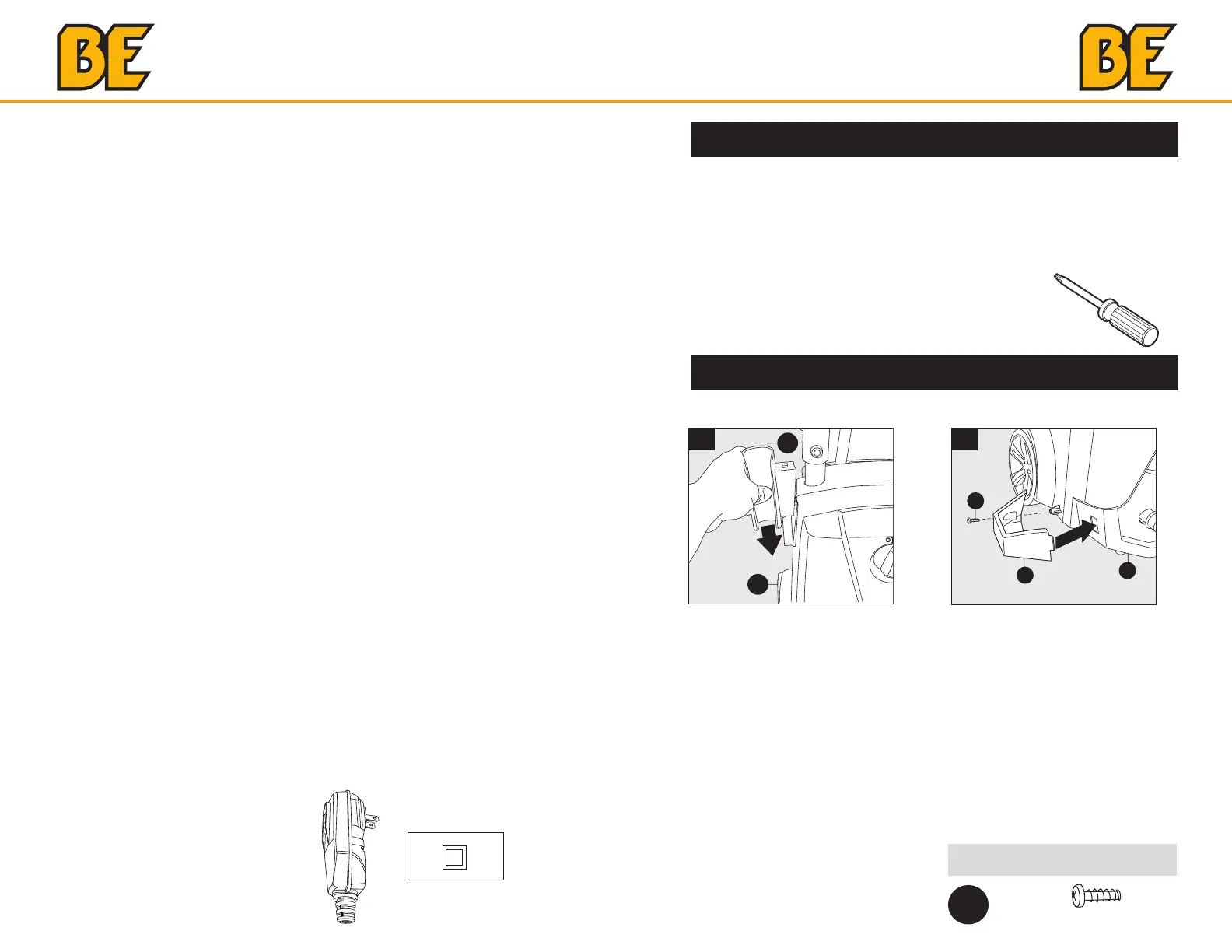

ASSEMBLY INSTRUCTIONS
PREPARATION
Power Unit Assembly
Slide the spray gun holster (D) onto left side, when
facing the unit, of power washer unit (A).
Note: When placing the gun with the lance attached,
the nozzle will rest in this tray.
1
D
A
Screw x 1
AA
AA
Screw
Qty. 1
2
A
E
AA
Slip tab into slot and screw the nozzle tray (E) on bottom
left, when facing the unit, of power washer unit (A).
Secure with screw (AA).
Note: DO NOT use a power screwdriver. When the screw
is completely tight, give a small nal clockwise twist of
the screwdriver.
DO NOT overtighten.
Hardware Used:
15ANR012 AR383S_1800PSI ENG-FR-SP.indd 6 16/12/17 下午2:28
ASSEMBLY INSTRUCTIONS
