10 11

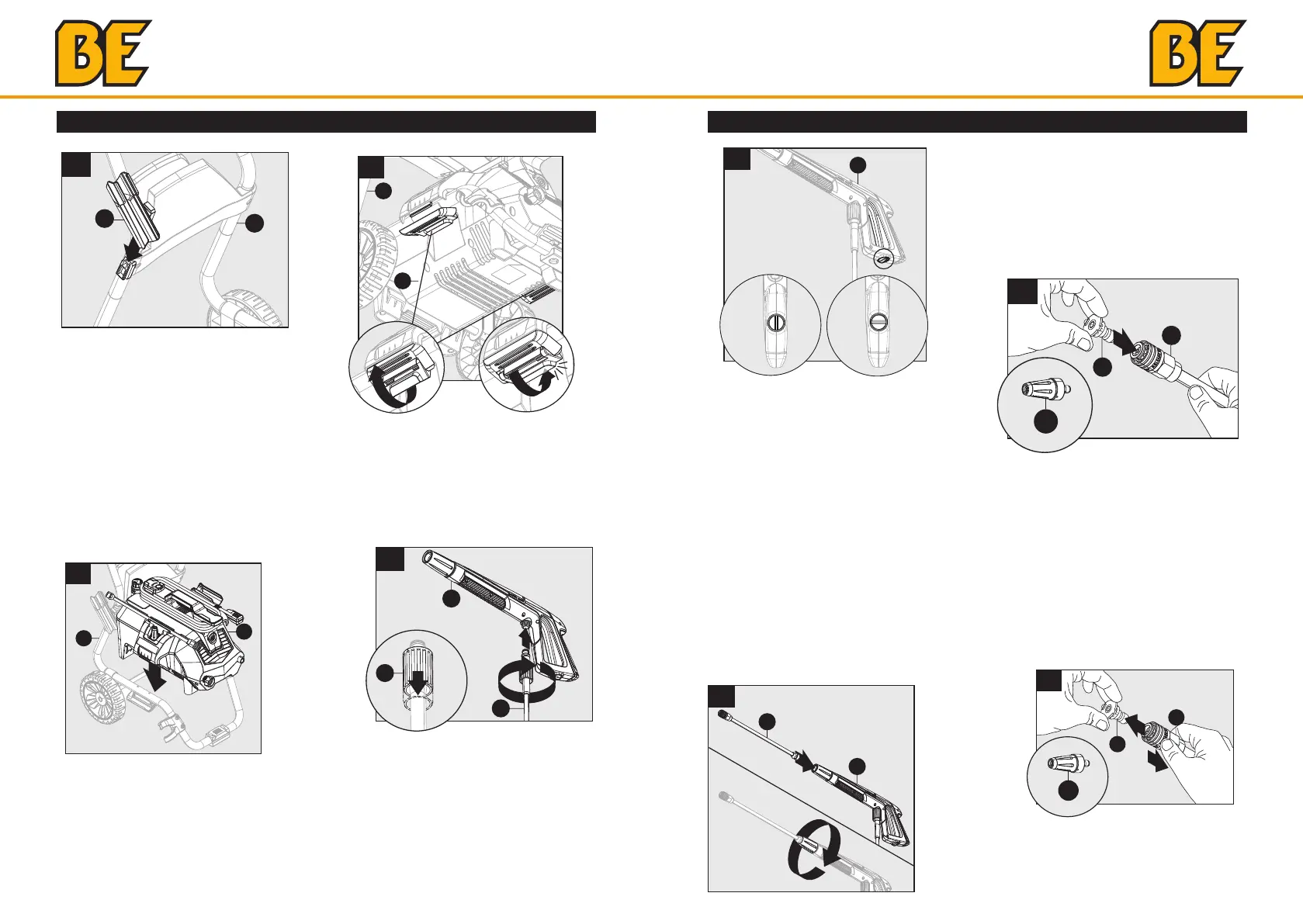

ASSEMBLY INSTRUCTIONS
Locking Spray Gun (before Lance
installation) To lock trigger of spray
gun (K), point gun away from you and
turn dial to lock (“3” and “9” position).
Squeeze or pull trigger to make sure
it is locked. Always leave in locked
position when not in use. This ensures
the gun is in “safe” mode until it is
ready for use. Turn dial to unlock (“12”
and “6” position) to release spray gun
trigger.
Note: The trigger lock prevents trigger
from being accidentally engaged.
10
K
Unlocked
ASSEMBLY INSTRUCTIONS
Slide spray gun holster (M) into place
on the upper handle (B).
Place power washer unit (F) into
position on the lower frame (G).
7
F
G
Pull upward on latches that are located
on sides of lower frame (G). Once upper
latch is flush with the lower lip, push
down until lower latch clicks into place.
3
2
9
1
K
N
N
Pull back on collar at one end of soft
PVC hose (N).Push firmly to connect
hose to spray gun (K). Twist collar
to secure. Confirm hose is locked
into spray gun by slightly pulling on
them. The hose is now securely at-
tached to spray gun.
11
*I
K
1
2
1
2
13
*I
*E
*C
Extension Lance installation
While spray gun (K) is in the locked
position, insert lance (*I) into the
end of spray gun by inserting and
turning clockwise until fully in place.
To remove, turn counterclockwise.
To remove nozzle (*E) and Rotary
nozzle (*C), pull back on collar of
lance (*I) and pull out nozzle.
Attach nozzle (*E) and Rotary nozzle
(*C) into end of lance (*I) by pressing
selected nozzle into place. It will make
a “click” sound when firmly in place.
Note: Always push safety lock button
to lock trigger when changing lances
and nozzles to ensure that they do not
accidentally eject with force during
removal.
