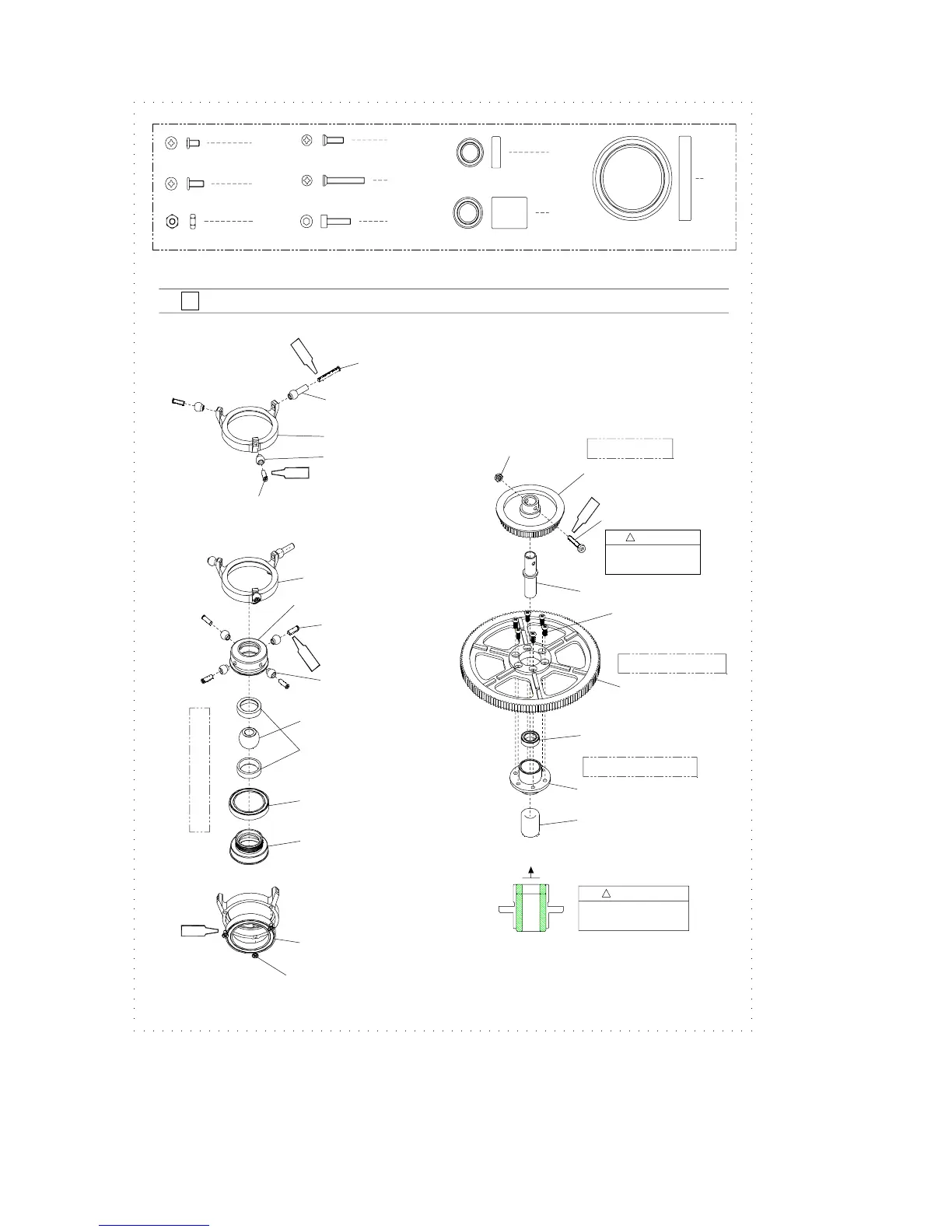

Beam E4 - Page 8

Ball Bearing,
#6704zz (1 pc)
B
l
u
e
Nut, 2mm
1 pc
Socket Head Bolt, 2x11mm
1 pc
Countersunk Screw, 2x7mm
6 pcs
Ball Bearing, #6704zz
1 pc
Ball Bearing, #MR106zz
1 pc
Flat Head Bolt, 2x5mm
6 pcs
Countersunk Screw,
2x14mm (1 pc)
Linkage Ball,
4.7x12mm (1 pc)
Swashplate
Ball Bearing,
#6704zz (1 pc)
Linkage Ball,
4.7x4.5mm (4 pcs)
Countersunk Screw,
2x7mm (4 pcs)
Flat Head Bolt,
2x3.5mm (3 pcs)
Swashplate Assembly
Nut, 2mm
Socket Head Bolt,
2x11mm (1 pc)
Main Pulley, 51T
Main Drive Gear, 150T
Ball Bearing, #MR106zz
One-way Sleeve
One-way Bearing,
#HF0612 (1 pc)
Autorotation Case
Main Pulley Set
Main Drive Gear Set
Autorotation Case Set
Swashplate Ball Guide
(2 pcs)
Swashplate Ball
Swashplate Base
Swashplate
Flat Head Bolt,
2x5mm (6 pcs)
Ball Bearing, #HF0612zz
1 pc
Flat Head Bolt, 2x3.5mm
3 pcs
Countersunk Screw, 2x14mm
1 pc
B
l
u
e
B
l
u
e
Linkage Ball,
4.7x4.5mm (2 pcs)
Countersunk Screw,
2x7mm (2 pcs)
2
Blue
Swashplate Cap
Caution
Do not overtighten
the bolt.
!
Up
B
l
u
e
Caution
Mind the direction of
the Autorotation Case
!
Swashplate, Main Drive Gear
