BEC 6200WZL - Front Panel Leds

Quick Start Guide
2


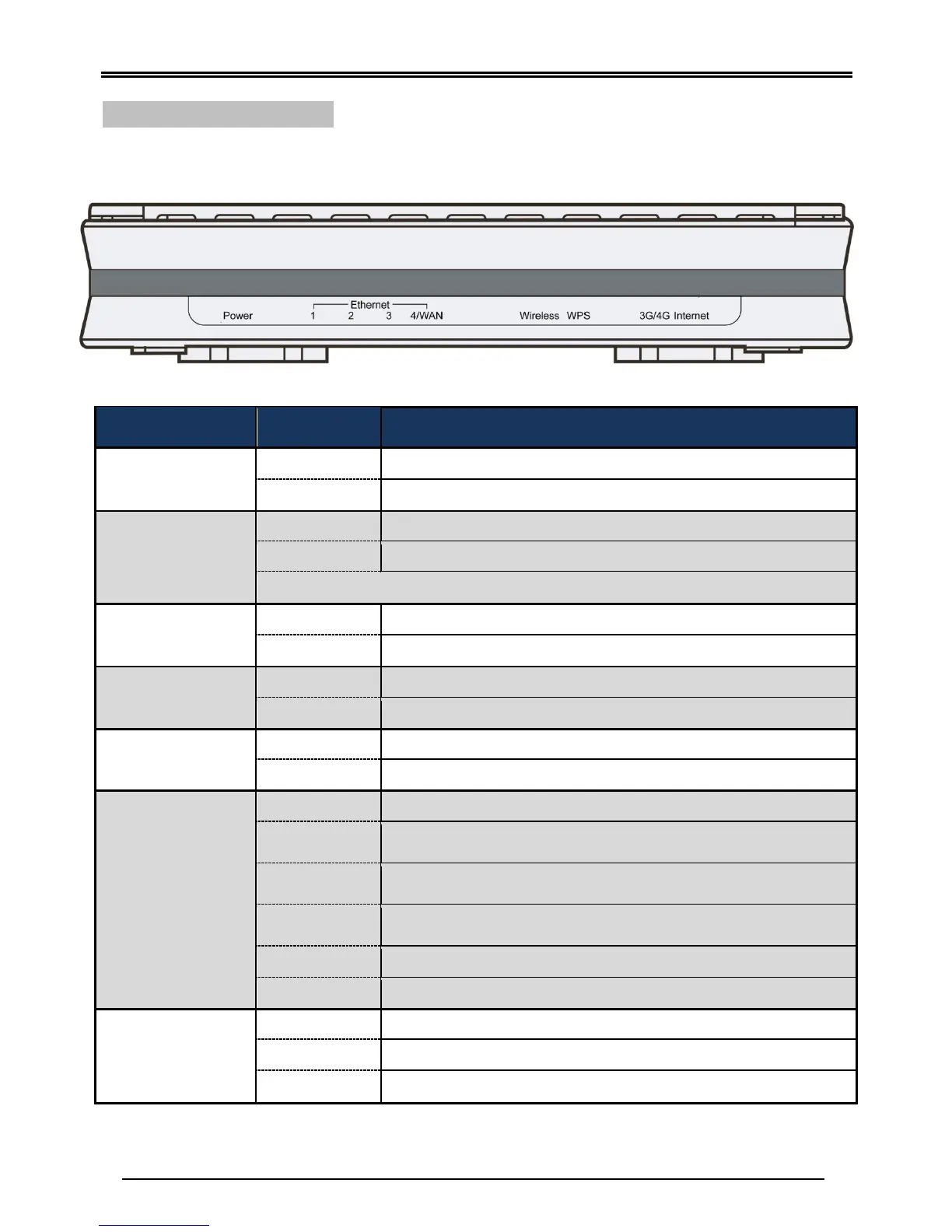

Front Panel LEDs
LED
STATUS
DESCRIPTION
Power
Green
System is up and ready
Red
Boot failure
Ethernet Port
LAN 1 ~ 4
Green
LAN Port is connected to an Ethernet unit, e.g. PC, Notebook, Xbox
Blinking
Data being transmitted/received
Note: port #4 can be configured as WAN port for broadband connectivity
EWAN on LAN 4
Green
BEC 6200WZL is successfully connected with a broadband connection device.
Blinking
Data being transmitted/received
Wireless
Green
Wireless connection established
Blinking
Data being transmitted / received
WPS
Green
Wireless client has been connected via WPS successfully
Blinking
WPS is enabled and ready for other wireless clients to join
3G/4G
(Received Signal
Strength Indicator)
Green
RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition.
Orange
No signal and the 4G_LTE module is in service
Off
No LTE module or LTE module fails
Internet
Green
WAN IP received and traffic is passing thru the device.
Red
WAN IP request failed.
Off
BEC 6200WZL is either in bridged mode or WAN connection not ready.
