AR6201
DV 14300.03/.04 Issue 4 5/2011 Page 3-7

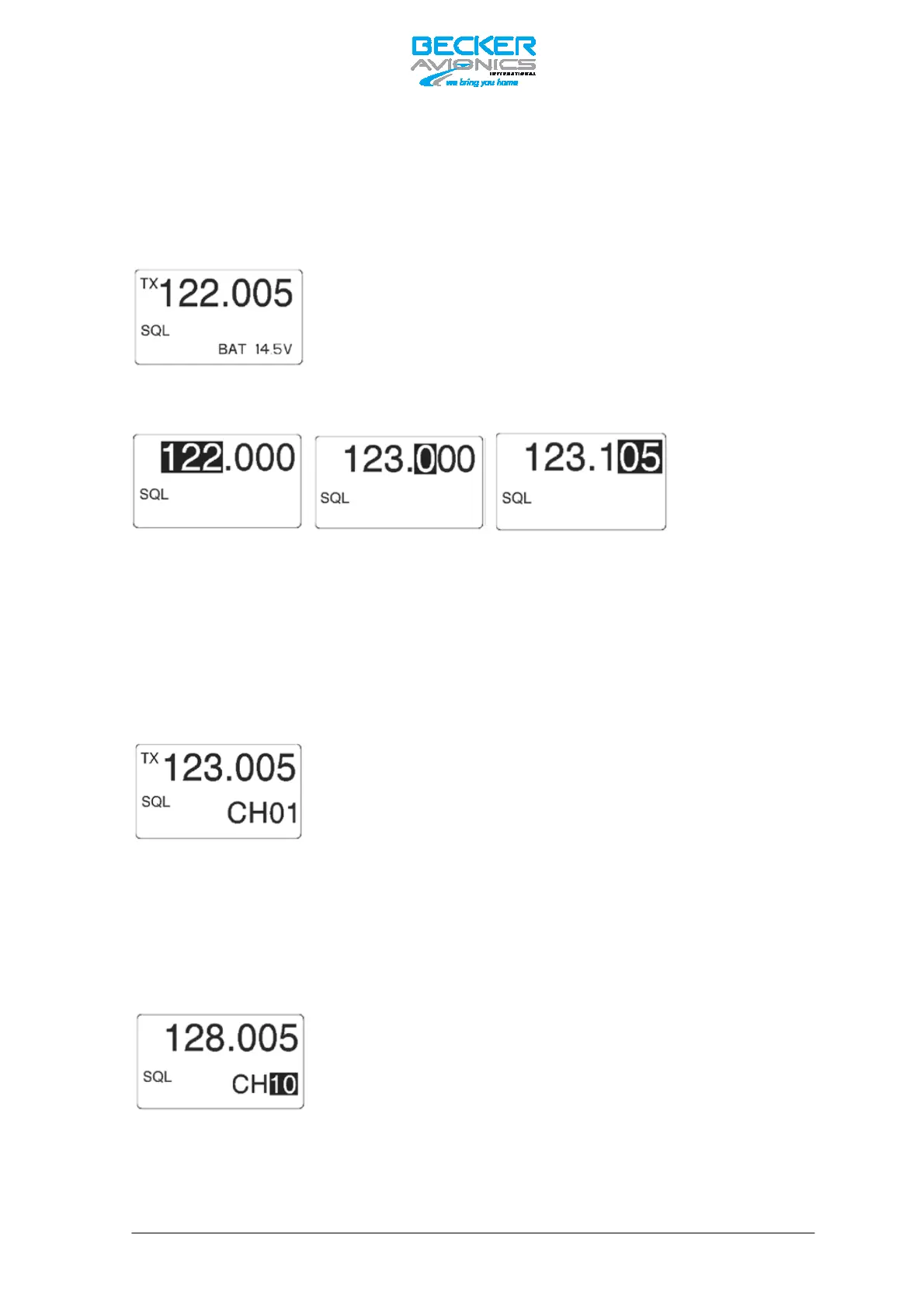

3.6.2 Direct Tune Mode
Direct tune mode can be entered by consecutive short pressing of “MDE”.
Direct tune mode will be leaved by selecting another operation mode.
In direct tune mode the active frequency is indicated in the top line. The battery voltage is indicated
in the bottom line.
The active frequency can be set directly by pushing and turning the rotary encoder. The changes
became active immediately.
Changing the active frequency is possible only when the transceiver is not transmitting.
3.6.3 Channel Mode
Channel mode can be entered by consecutive short pressing of “MDE”.
Channel mode will be leaved by selecting another operation mode.
In channel mode the active frequency is indicated in the top line. In the bottom line of the display,
the channel number is indicated.
When changed from direct tune mode to channel mode the active frequency stays the same. If the
frequency has already an assigned channel number from manual storing, that channel number will
be indicated. Otherwise “CH--” will be indicated.
In channel mode only frequencies which have been stored before (automatically or manual) may
be selected.
The channel can be selected by pushing and turning the rotary encoder.
Note: If the device is operating in the 25 kHz mode a selection of an earlier stored 8.33 kHz
channel is not possible. For selection of 8.33 kHz channels the device has to be
operated in the 8.33+25 kHz mixed mode.
