7

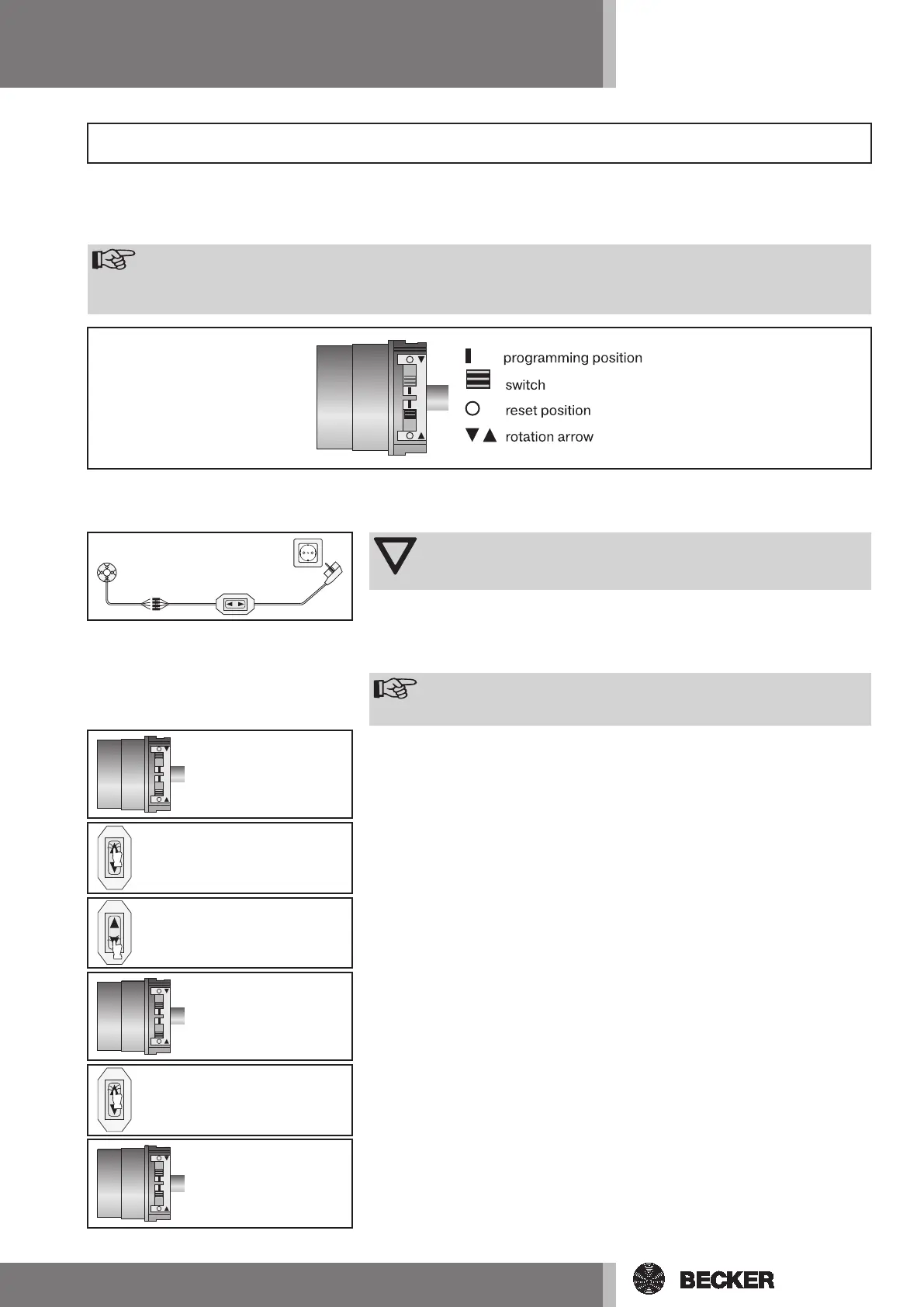

There are 2 options for setting the end limits:
a) Point when canopy is extended to point when canopy is retracted without end stop
b) Point when canopy is extended to end stop
The nal limit position becomes xed, after the tubular drive has turned off automatically, in the desired position, three times.
Note
If the tubular drive switches off prematurely because it encounters an obstacle, it is possible to release
this obstacle by briey moving the canopy in the opposite direction, removing the obstacle and then mo-
ving the canopy up or down again to set the new end limit.
Attention
The switch control set is not designed for permanent use, but
only for initial operation.
Connect the exible leads of the tubular drive to those of the switch control set
(product no. 4901 002 181 0) or of the operator’s control according to the colour
coding and switch on the power supply.
a) Point when canopy is extended to point when canopy is retracted with-
out end stop
Note
When the end limits are set using this method, no adjustment is
made for the length of the canopy.
Move both switches to the reset position.
Setting the end limits using the switches
Positioning the end limits
Press the control command briey.
Move the canopy to the required end limit when extended.
Move the switch with the rotation arrow for extending the canopy from the reset
position to the programming position.
Then move the canopy to the required end limit when retracted.
Now move the switch with the rotation arrow for retracting the canopy from the
reset position to the programming position.
The end limits are set.
