Becker P5/20M - Wiring Diagram

Operating Instructions
15
~
M
black
brown
blue
green/
yellow
230V
PE
N
L1
Individual switch
Drive
230V/50Hz
~
M
230V
Drive
230V/50Hz
PE
N
L1
L1N
TimeControl U25
or
Memory switch MT11
black
brown
blue
green/
yellow
Central switch
L1
N
N
PE
Mains 230V /50Hz
~
M
NN
N
TR1
~
M
NN
N
TR1
Central control of up to 8 drives possible(R8/17M  R30/17M)
Drive
230V/50Hz
Drive
230V/50Hz
Drive
230V/50Hz
~
M
NN
N
TR1
Operation with individual switch Operation with timer
Control of several drives from one location
The drives are decoupled via cut-off relays

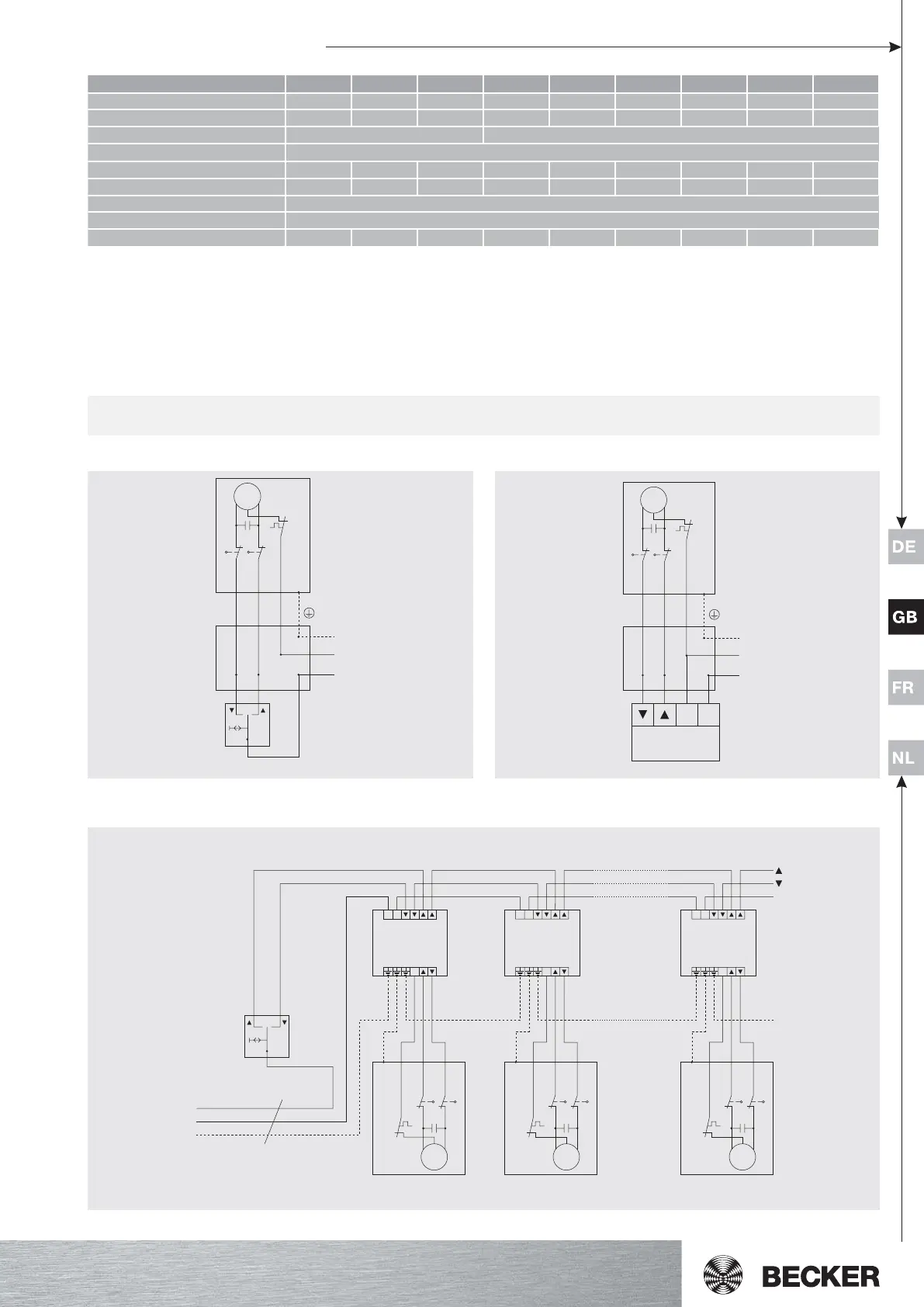

Wiring Diagram
epyT M71/03R M71/04R M11/05R M41/44R M71/05R M11/06R M71/07R M11/08R M11/021R
)mN(euqrotlanimoN 03 73 05 44 05 06 07 08 021
(deepstuptuOMpU
1-
) 71 71 11 41 71 11 71 11 11
egnarnoitisoptimillaniF 83 63
egatlovsniaM zH05/CAV032
)W(noitpmusnocrewoP 522 032 552 552 513 562 034 013 534
)A(noitpmusnoctnerruclanimoN 69,0 81,1 1,1 2,1 4,1 2,1 9,1 4,1 9,1
edomgnitarepO .niM42S
ssalcnoitcetorP 44PI
)mm(retemaidlerrabmuminiM 74 74 74 06 06 06 06 06 06
