Beckhoff AS2000 Series User Manual

Technical data
Version: 2.1 ─── 19AS2000

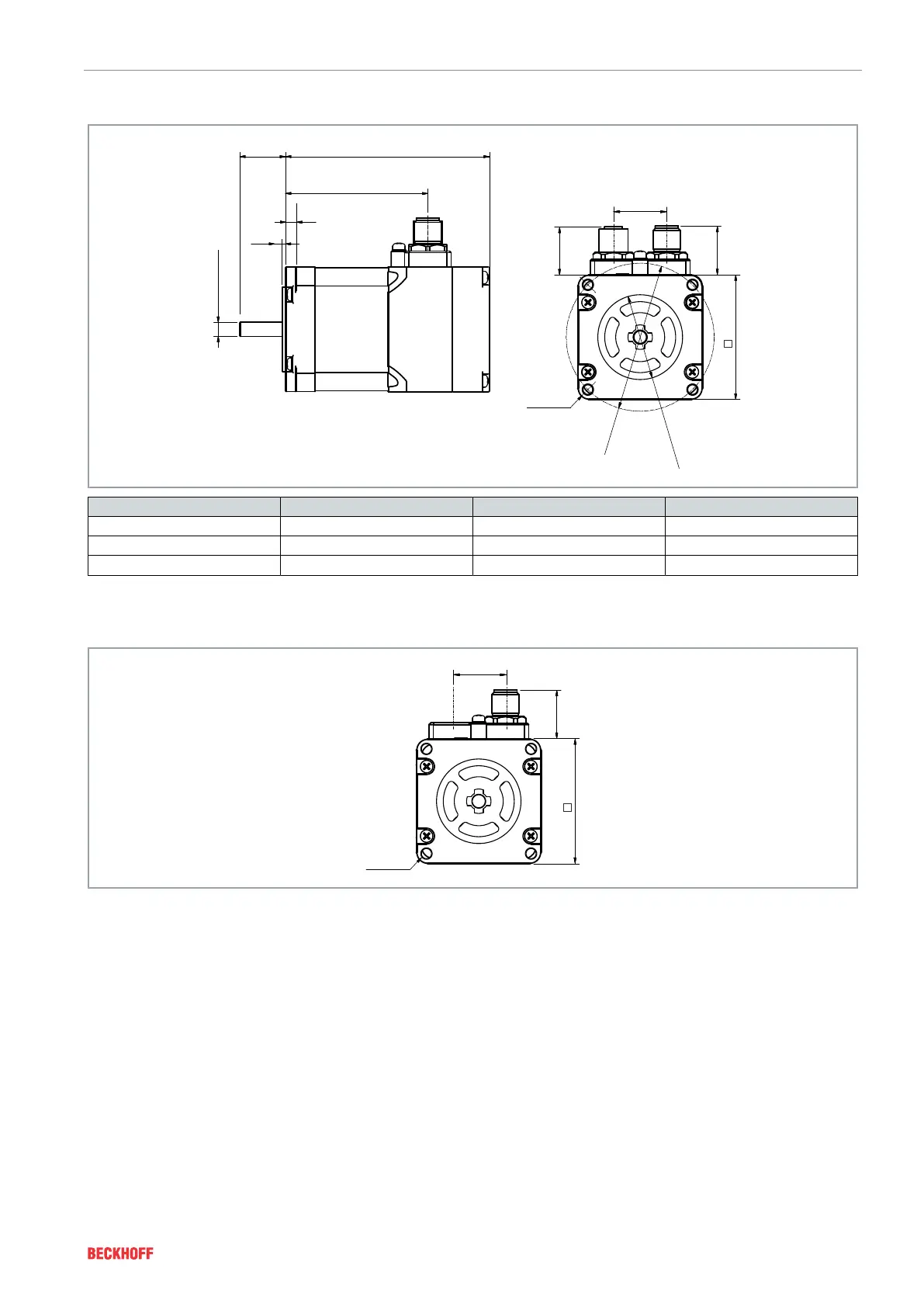

Dimensional drawing
• All figures in millimeters
Y(Z) ±1,5
X
20,6
5
1,5
Ø6,35
+0 - 0,013
Ø66,67
Ø38,1
±0,025
56
±1
4 x Ø4,5
24
21,5
22
Motor X Y Z - encoder
AS2021 64.10mm 81.10mm 91.80mm
AS2022 86.20mm 103.10mm 113.90mm
AS2023 105.10mm 122.10mm 132.80mm
View without encoder
56
±1
22
4 x Ø4,5
24
