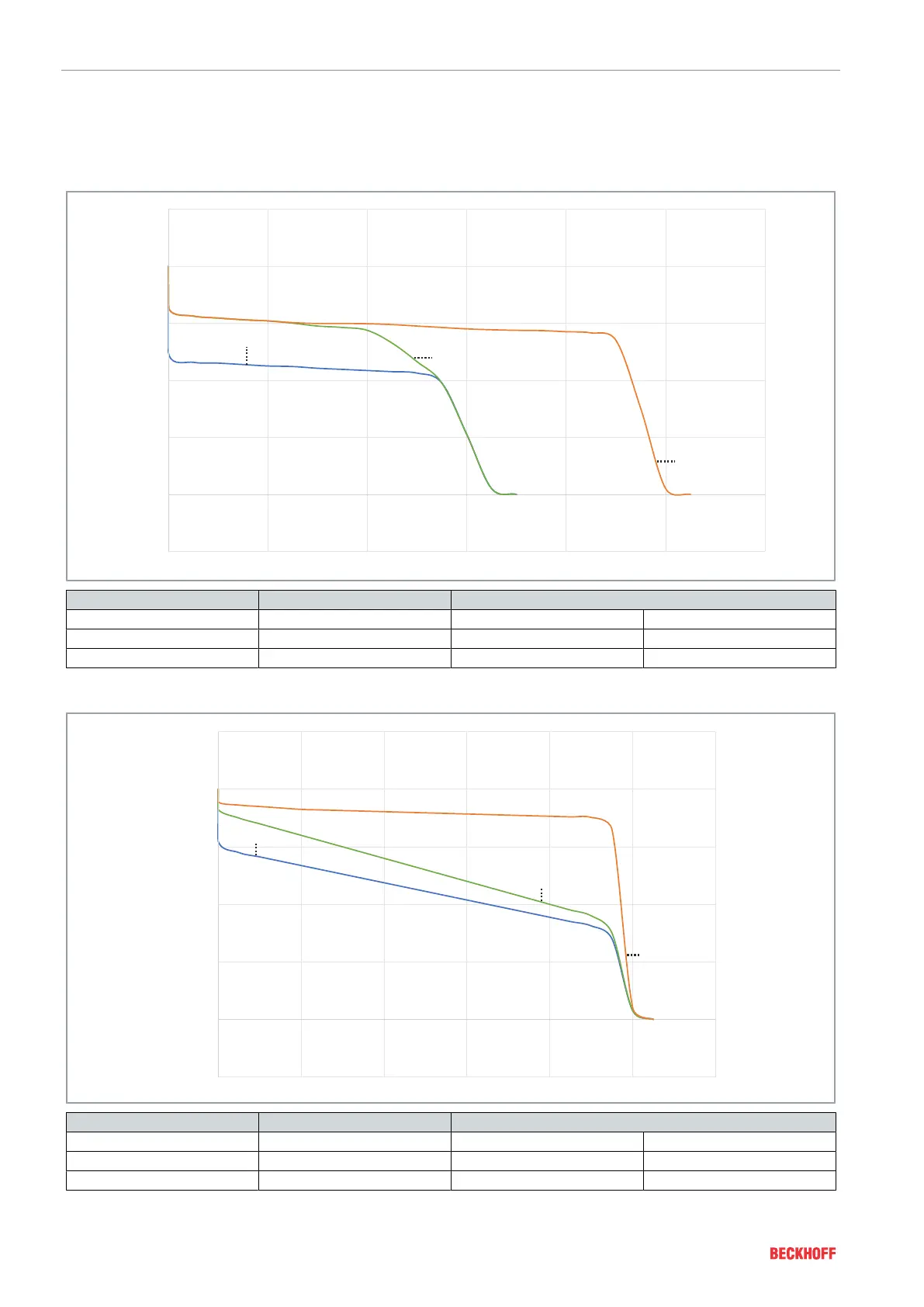

Characteristic torque and
speed curves
For the design of your application. The curves were recorded with
"open loop" controlled operation and "vector control" field-oriented
control.
AS2021-0D00
• "Open loop" controlled operation
2
-0,2
0
0,2
0,4
0,6
0,8
1
0 200 400 600 800 1000 1200
Torque [Nm]
Speed [rpm]
1
3
Curve Motor type Recording
1 AS2021-0D00 24V
DC
1.5A EL7037
2 AS2021-0D00 24V
DC
2A EL7047
3 AS2021-0D00 48V
DC
2A EL7047
AS2021-0D10
• "Vector control" field-oriented control
-0,2
0
0,2
0,4
0,6
0,8
1
0 200 400 600 800 1000 1200
Torque [Nm]
Speed [rpm]
1
2
3
Curve Motor type Recording
1 AS2021-0D10 24V
DC
1.5A EL7037
2 AS2021-0D10 24V
DC
2A EL7047
3 AS2021-0D10 48V
DC
2A EL7047
