Beckhoff AS2000 Series User Manual

Technical data
Version: 2.1 ─── 21AS2000
AS2022-0H00

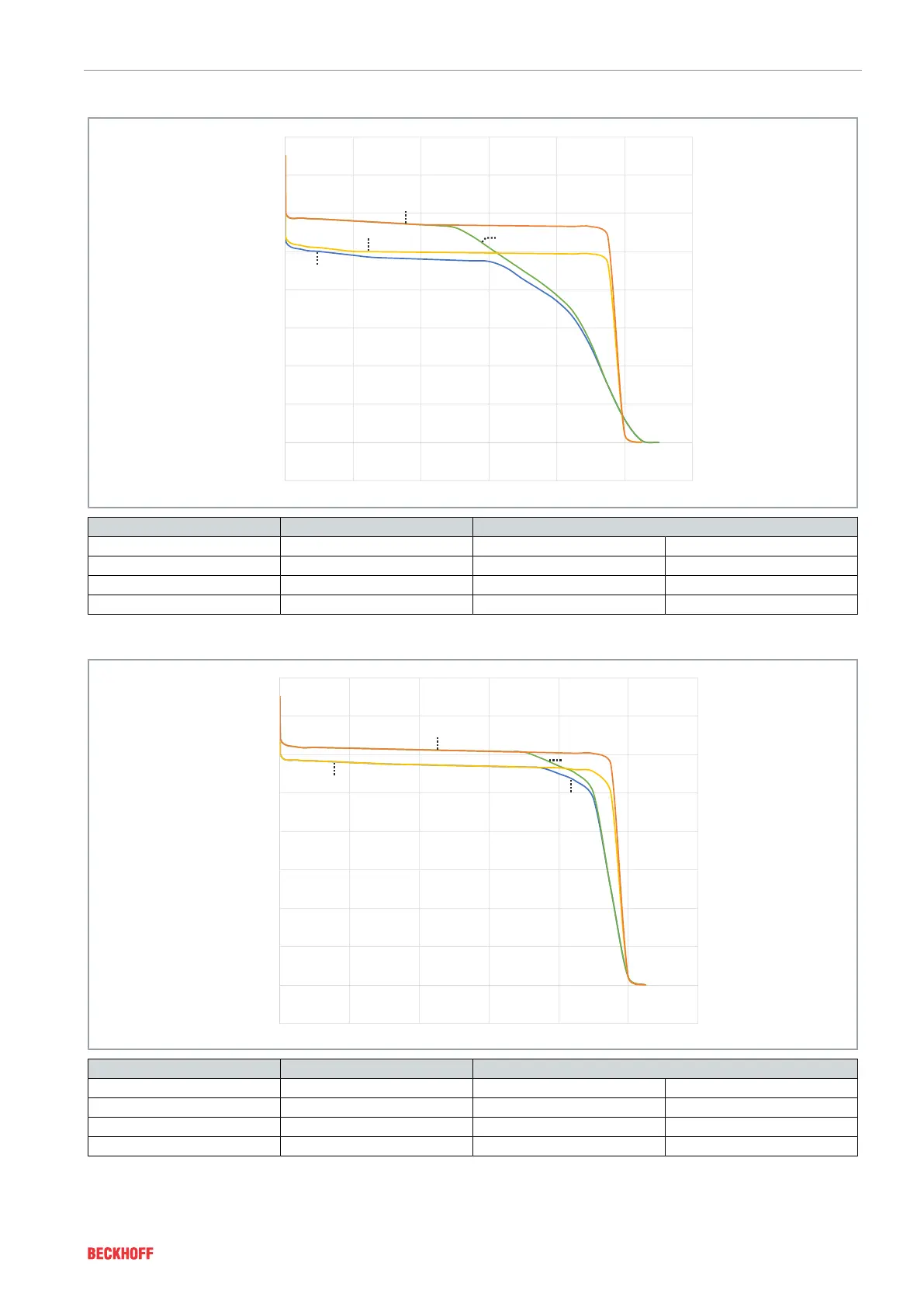

• "Open loop" controlled operation
600 800 1000 1200
Speed [rpm]
400
-0,2
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
0 200
Torque [Nm]
1
2
3
4
Curve Motor type Recording
1 AS2022-0H00 24V
DC
5.0A EL7047
2 AS2022-0H00 48V
DC
5.0A EL7047
3 AS2022-0H00 48V
DC
5.6A EL7047+ZB8610
4 AS2022-0H00 24V
DC
5.6A EL7047+ZB8610
AS2022-0H10
• "Vector control" field-oriented control
Torque [Nm]
-0,2
0
0,2
0,4
0,6
0,8
1
1,2
1,4
1,6
0 200 400 600 800 1000 1200
Speed [rpm]
1
2
4
3
Curve Motor type Recording
1 AS2022-0H10 48V
DC
5.0A EL7047
2 AS2022-0H10 48V
DC
5.6A EL7047+ZB8610
3 AS2022-0H10 24V
DC
5.6A EL7047+ZB8610
4 AS2022-0H10 24V
DC
5.0A EL7047
