Electrical installation
Version: 2.1 ─── 47AS2000

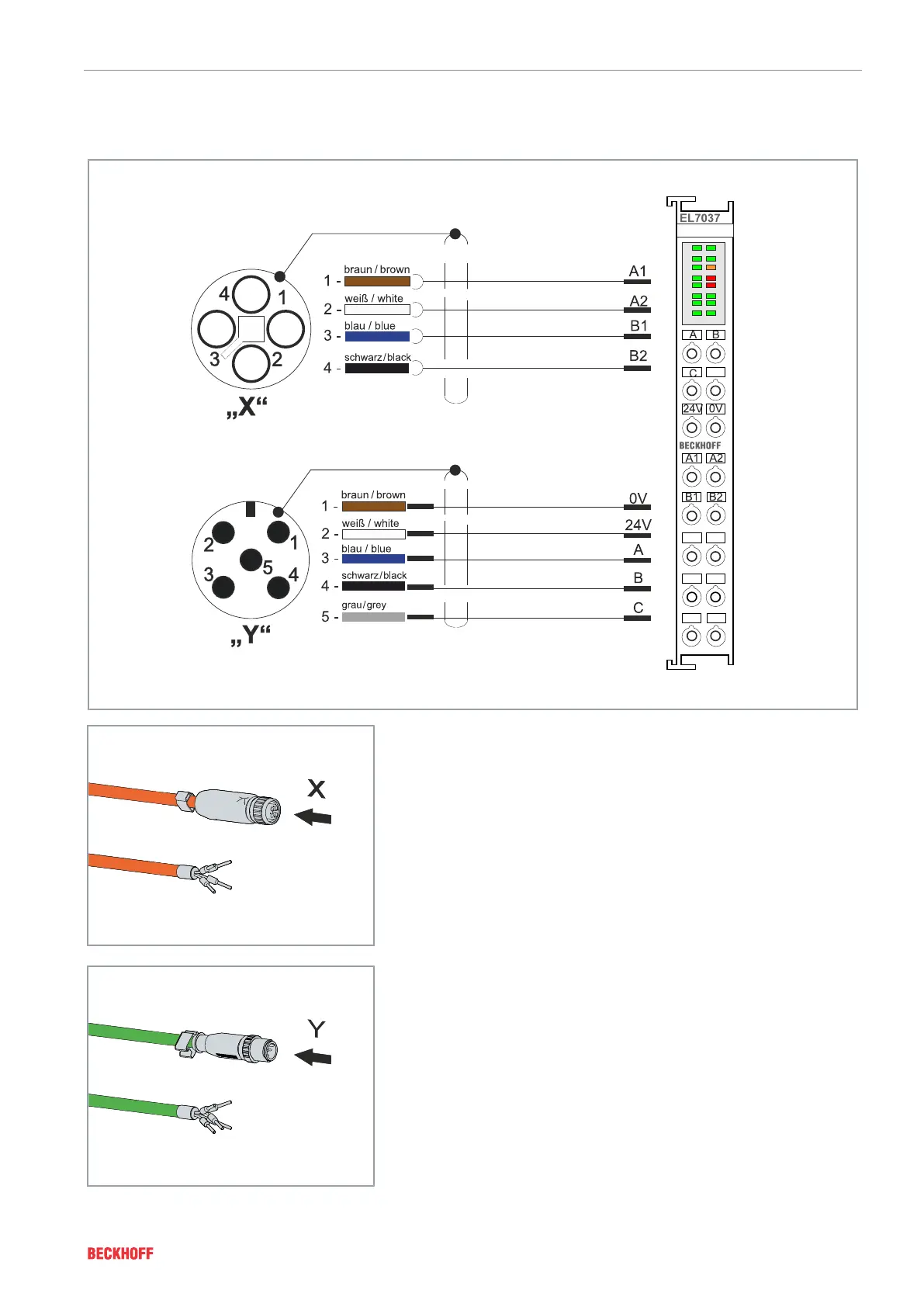

EL7037 terminal
• For AS2021-0Dy0 with encoder for field-oriented control
• The ZB8610 fan cartridge is required to achieve the full rated
motor power
Motor cable
• Order key: ZK4000-7700-xxxx
• Preassembled at both ends and shielded: 4 x 0.75mm²
Encoder cable
• Order key: ZK4000-5100-2xxx
• Preassembled at both ends and shielded: 5 x 0.25mm²
