Fieldbus system
BC9000 and BC9100
63
Version: 4.0.0

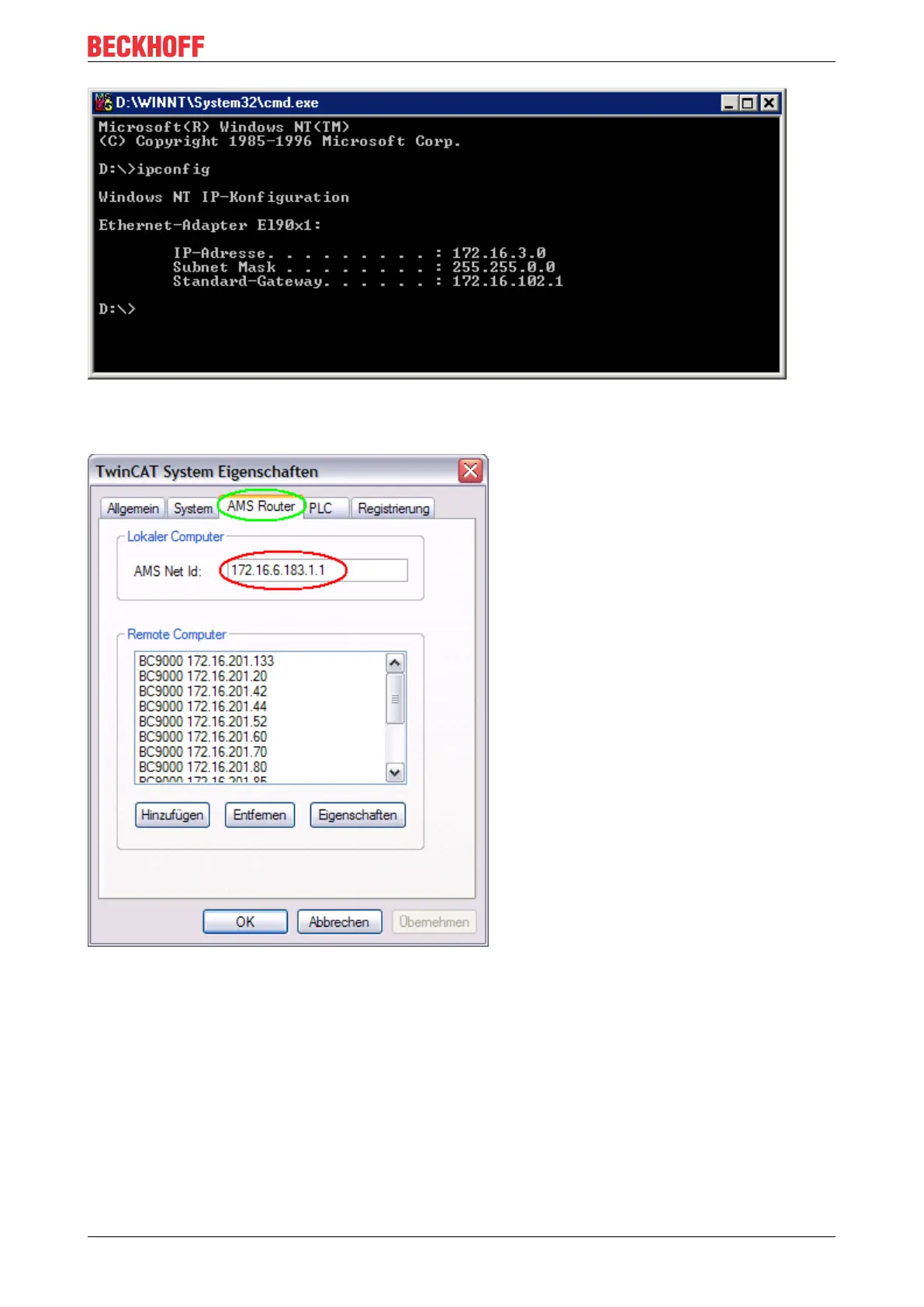

Fig.46: Command >ipconfig< in the DOS window
The AMS Net ID is displayed under Properties/AMS router.
Fig.47: Display of the AMS Net ID
If the AMS Net ID does not match the TCP/IP address, the link can be entered in the routing table (table 2).
Example for AMS Net ID OK
AMS Net ID: 172.16.100.10.1.1
TC/IP:172.16.100.10
Required library: AdsBC.lb6
