Operation
EL2911 and EL2911-2200 39Version: 2.0.0
5.3.4 EL2911: using the integrated TwinSAFE Logic functions
Information
This functionality is not available for the pure I/O component EL2911-2200.
On delivery, the EL2911 behaves like a safe TwinSAFE I/O slave, which can be used as an alias device
within a TwinSAFE Logic, e.g. EL6910.
Alternatively, the local logic function of the EP2911 can be used. To this end please create a TwinSAFE
project in the Safety Editor and select the EL2911 as the target system. Further information on creating a
project can be found in the EL6910 documentation and the description of the function blocks under http://
www.beckhoff.de/german/download/twinsafe.htm.
In order to be able to use the EL2911 again as a safe TwinSAFE I/O slave, please delete the logic, the
mapping and the parameter data on the EtherCAT Terminal and switch the voltage off and on again.

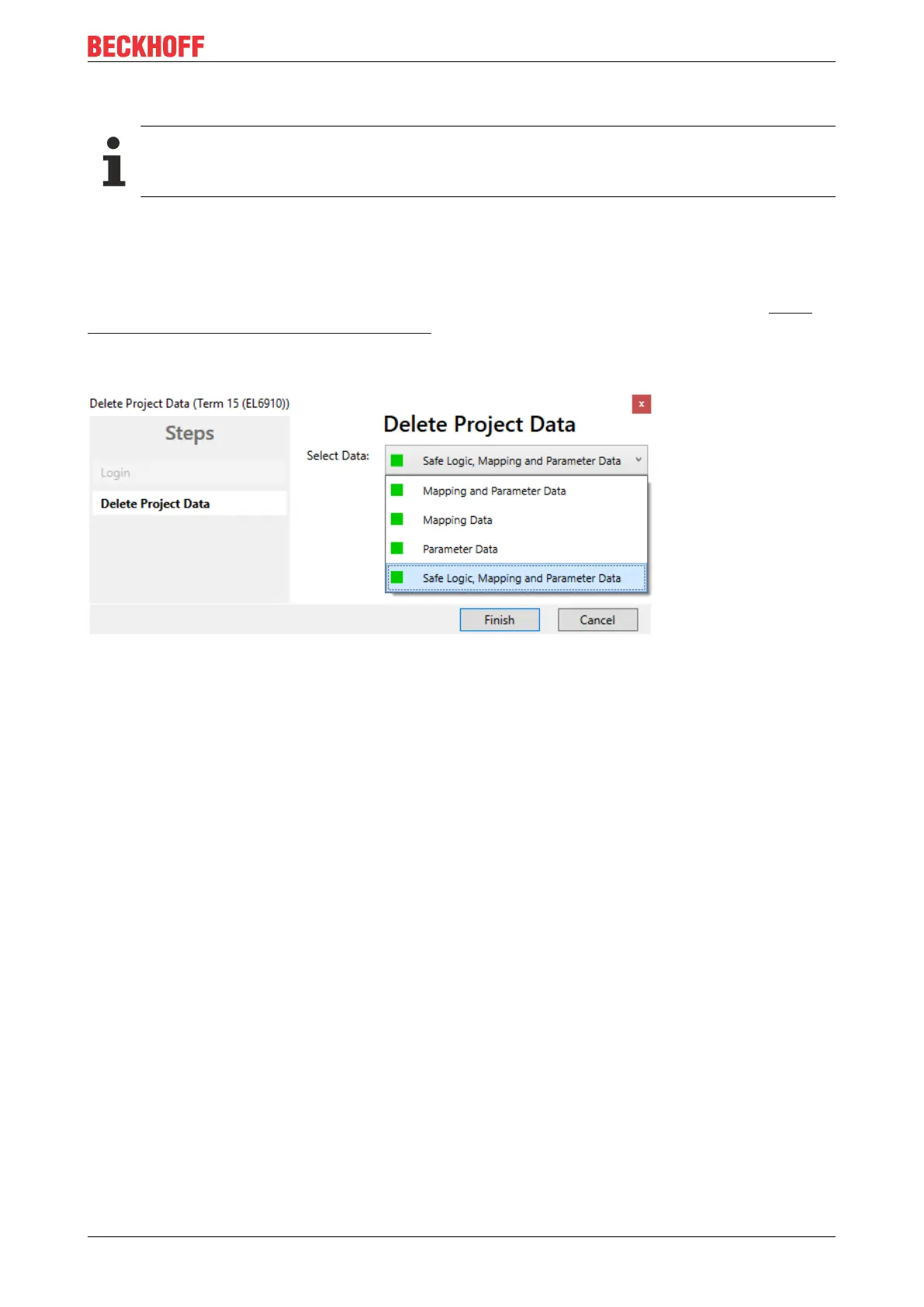

Fig.20: Delete project data
