Appendix
EL6731
182
Version: 2.8
•

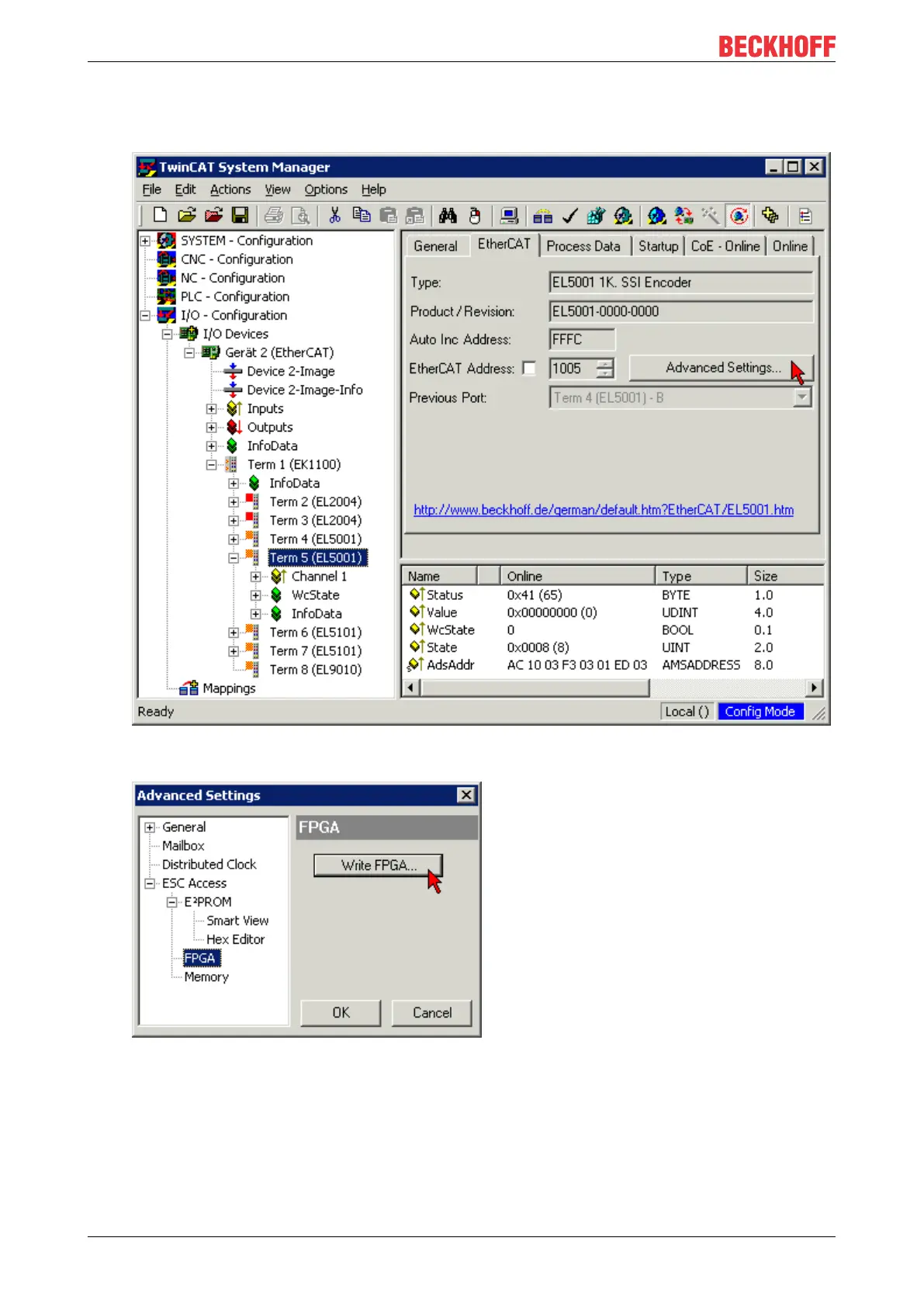

In the TwinCAT System Manager select the terminal for which the FPGA firmware is to be updated (in
the example: Terminal 5: EL5001) and
click the
Advanced Settings
button in the
EtherCAT
tab:
•
The
Advanced Settings
dialog appears. Under
ESC Access/E²PROM
/FPGA click on
Write FPGA
button:
181
183
