Install the tine arms (see fig. 8). Of the four bundles of tines received with the machine,
two bundles are left tines and two are right tines.
Facing the rear of the machine, starting from the left, the rotors run left, right, left, right
(see fig. 9). Separate the tine arms and determine which is right and which is left. This
is done by holding the tine arm with the tine away from you. A right tine arm will have
the tine bending to the right then pointing straight down, while a left tine arm will have
the bend going towards the left then down. Place corresponding bundle of tines by each
rotor.
Install six tine arms per rotor flange using the bolts M14x40 and the elastic stop nuts
M14 for the inside holes and the bolts M14x25 for the outer holes (see fig. 8).
OPERATION 15 BEFCO
R
OTARY TEDDERS OPERATOR’S MANUAL

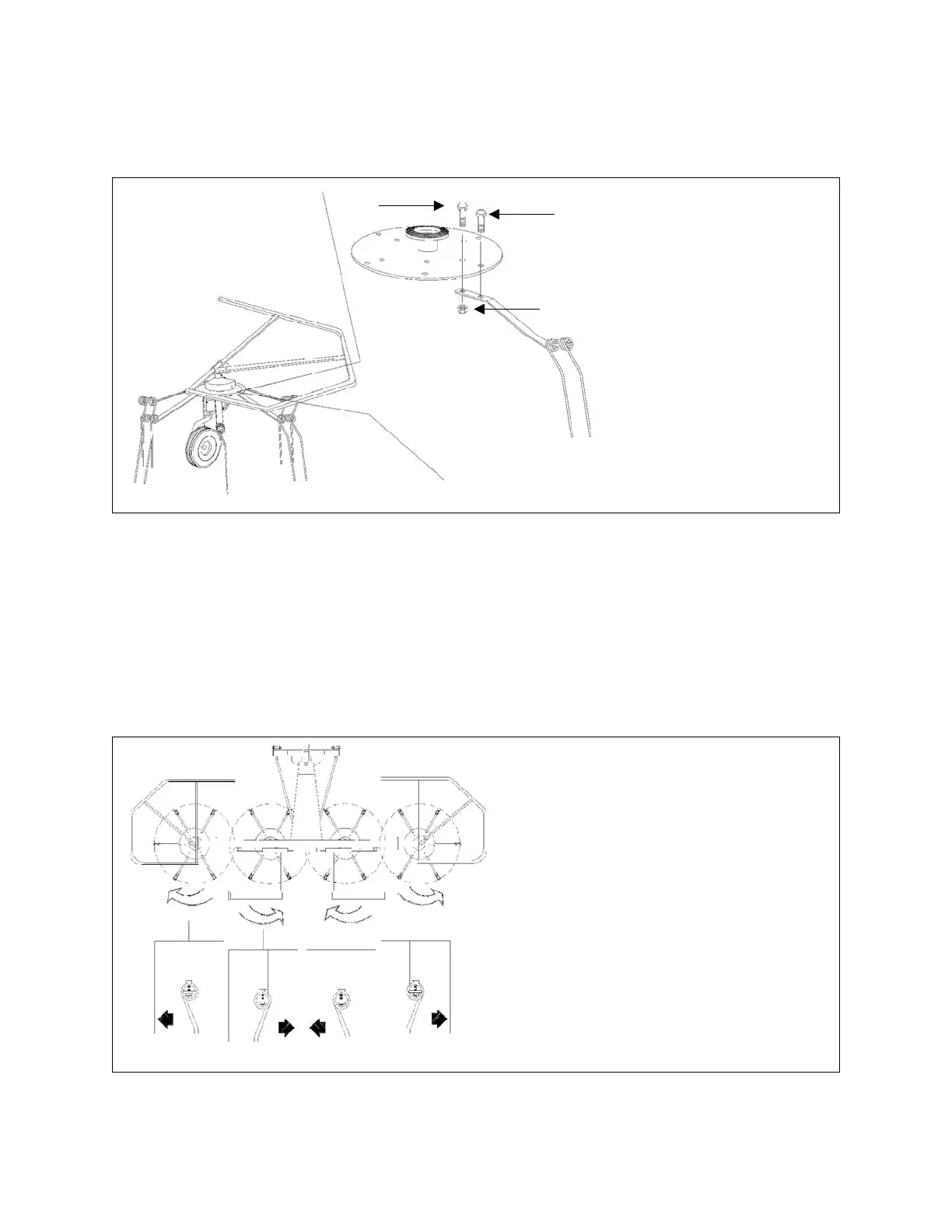

Fig. 8 - Tine arm assembly.
nut M14
bolt M14x40
bolt M14x25
Fig. 9 - Tine arm rotation.
left left rightright
left side right side
