BEHA UNITEST 2000 alpha - Appropriate Usage; Control Elements and Connections

Appropriate Usage
The instrument may only be used under those conditions and
for those purposes for which it was built. For this reason, in par-
ticular the safety references , the technical data including envi-
ronmental conditions and the usage in dry environments must
be followed.
When modifying or changing the instrument, the opera-
tional safety is no longer ensured.
The instrument may only be opened by an authorised ser-
vice technician, e.g. for fuse replacement.

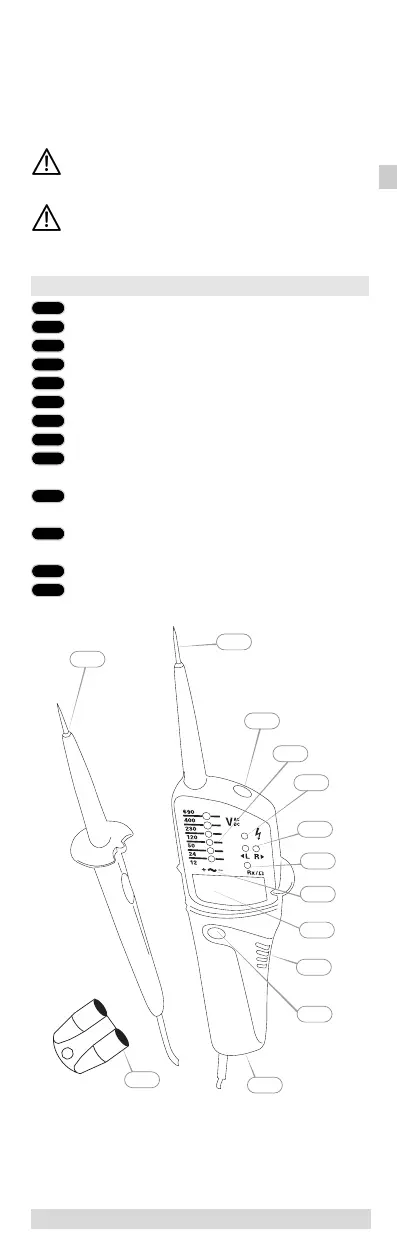

3.0 Control Elements and Connections
Handle test probe - (L1)
Instrument test probe + (L2)
Measurement point illumination
LEDs for voltage display
LED for single-pole phase test
LED for left/right rotary field
LED for continuity
Polarity indication
LCD for voltage display (only UNITEST 2000 beta and
gamma)
Button on rear side - for measurement point lightning
(Also for resistance measurement in 2000γ gamma)
Contact electrode for double-pole determination of
phase rotation and single-pole phase test
Battery case
Test probe protection
1
3
4
2
5
6
7
8
9
10
11
12
13
13
12
11
10
9
8
7
6
5
4
3
2
1
13
