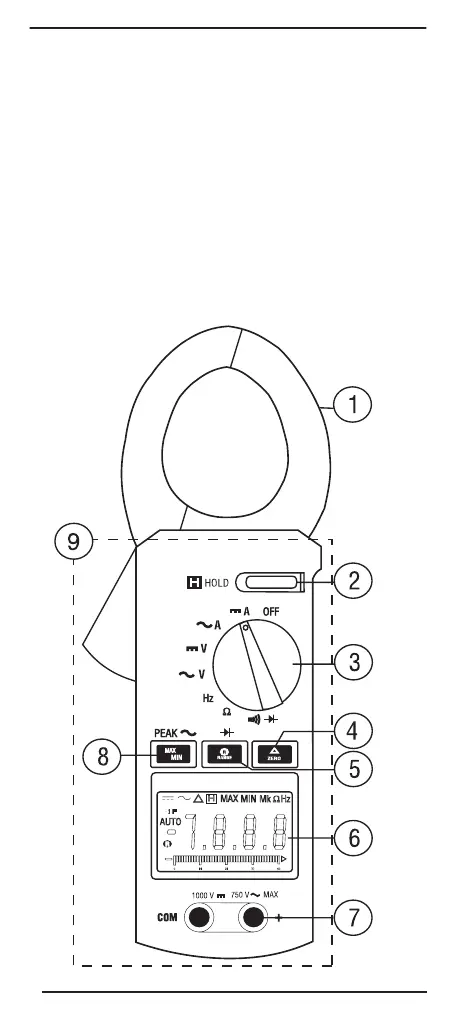

3.0 Controls and Connections
1. Induction coil (clamp)
2. Data hold button, to store results
3. Selector switch, for type of measurement
4. Zero setting / relative value function
5. Manual range selector button
6. Digital display
7. Input socket, for measuring voltage and resistance, and for
continuity and diode testing
8. MIN / MAX value / peak value function (only UNITEST Clamp
Meter CHB 37)
9. Hand-hold area incl. Barrier
