BEHA Unitest Testfix - Page 17

Diode Testing
17
English
schwarz schwarz
rot rot

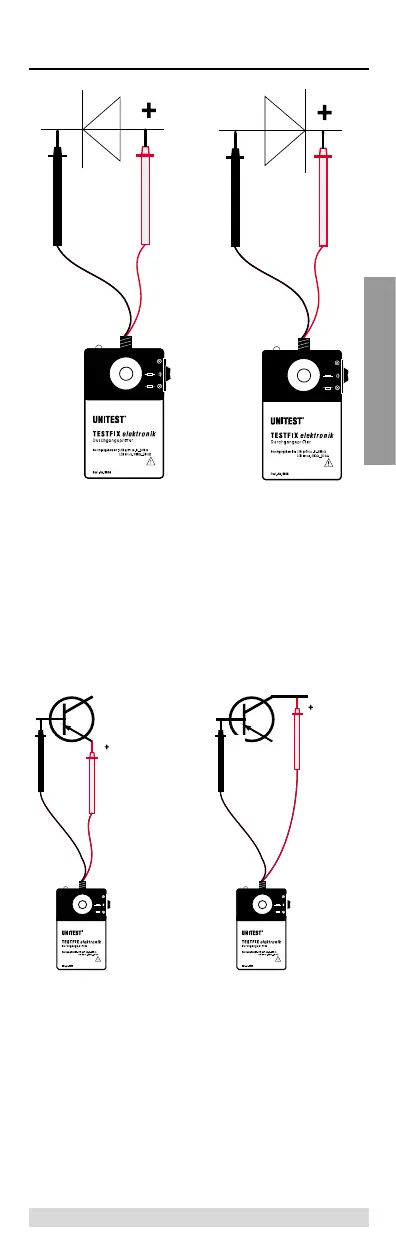

Diode Testing:
The diode is in good
condition in case of
continuity. If there is
no continuity for this
circuit, the diode is
defect
Diode Testing:
If there is no continuity for this
circuit, you may assume that
the diode is in good condition.
In case of continuity, the diode
is shorted
Transistorprüfung:
Bei Ertönen der Durchgangs-
anzeige ist die Kollektor-
Basis-Strecke in Ordnung.
Transistorprüfung:
Bei Ertönen der Durchgangs-
anzeige ist die Emitter-Basis-
Strecke in Ordnung.
schwarz
rot
schwarz
rot
black red black red
Transformer Testing:
If the continuity indication
is audible, the emitter-base
path is in good condition.
Transformer Testing:
If the continuity indication
is audible, the receiver-base
path is in good condition.
schwarz
rot
schwarz
rot
