16
B-CONTROL
DEEJAY
BCD3000
7. AUDIO CONNECTIONS
You will need a large number of cables for different applications.
The illustrations below show how the connectors should be
wired. Be sure to use only high-grade cables.
The microphone input of the BCD3000 is electronically balanced
to avoid hum problems.
Of course, you can also connect unbalanced microphones to
the balanced input. In this case, connect pin 1 and pin 3.

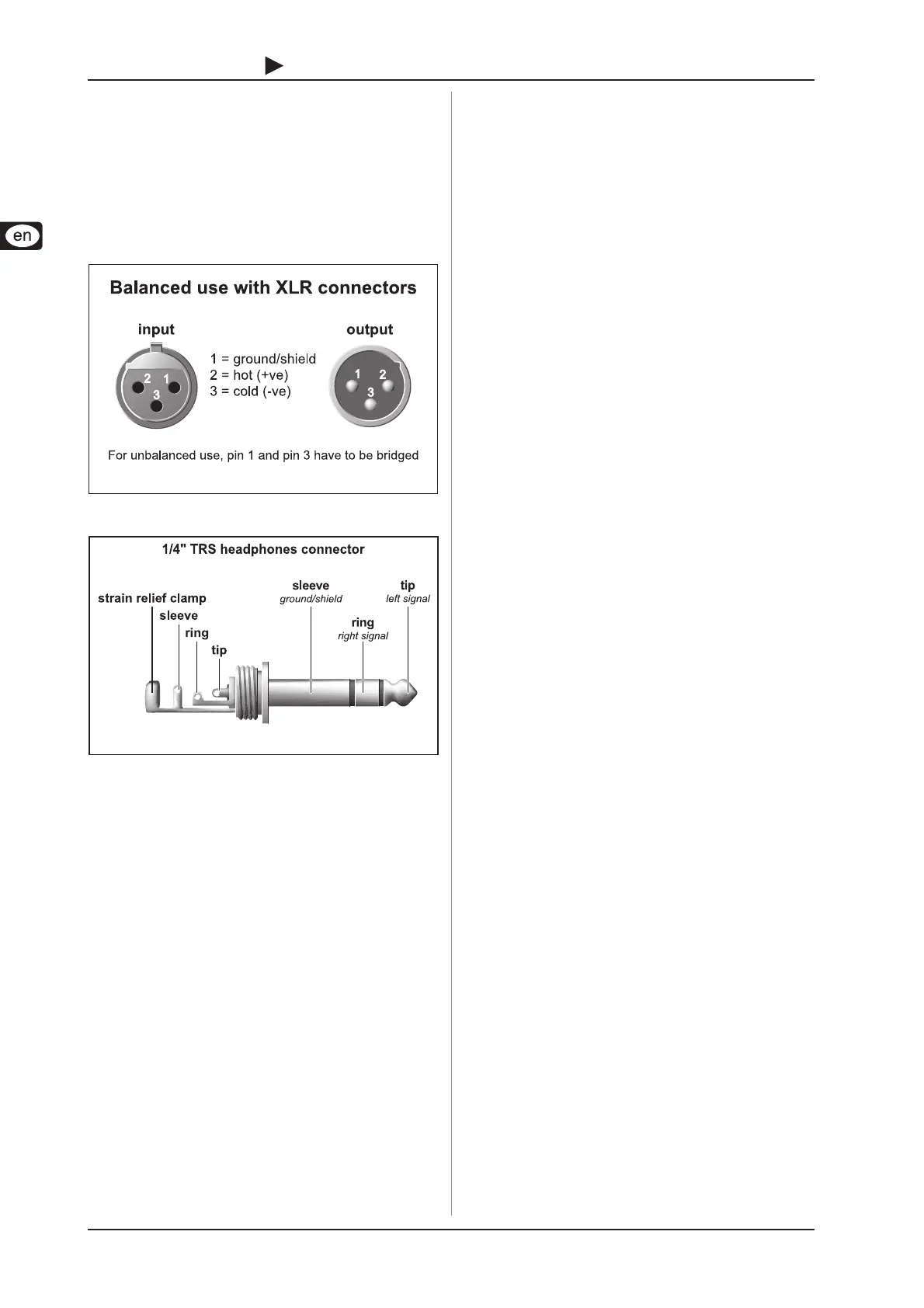

Fig. 7.1: XLR connector
Fig. 7.2: 1/4" TRS headphones connector
8. SPECIFICATIONS
AUDIO INPUTS
Microphone input
Type XLR balanced
Gain range -oo - +50 dB
Frequency response 10 Hz - 29 kHz (-3 dB)
Impedance approx. 2 kΩ (balanced)
Max. input level -25 dBu @ 35 dB Gain
(mic level center position)
Signal-to-noise ratio 110 dB (A-weighted)
Distortion (THD+N) 0.01 % (A-weighted)
CMRR typ. -40 dB
Equalizer
EQ low ±12 dB @ 40 Hz
EQ high ±12 dB @ 12 kHz
Line inputs
Phono in 40 dB Gain
Line in 0 dB Gain
Impedance approx. 47 kΩ
Max. input level +12 dBu
AUDIO OUTPUTS
Master Out
Type RCA
Impedance 120 Ω
Signal-to-noise ratio 101 dB
Crosstalk <80 dB @ 1 kHz
Max. output level +18 dBu
Phones Out
Type 1/4" TRS connector
Max. output level +4.7 dBu (+18.2 dBm) @ 30 Ω loading
DIGITAL PROCESSING
Converter 24 Bit
Sample rate 44.1 kHz
Signal-to-noise ratio A/D: 100 dB
D/A: 100 dB
USB INTERFACE
Type Full-Speed 12 MBit/s
SYSTEM SPECIFICATIONS
Signal-to-noise ratio >80 dB
Crosstalk <80 dB
Distortion (THD) 0.01%
Frequency response 15 Hz - 21 kHz, +0/-3 dB
POWER SUPPLY
Voltage 100 - 240 V~, 50/60 Hz
Power consumption max. 7 W
Fuse T 1 A H 250 V
Mains connection Standard IEC receptacle
DIMENSIONS/WEIGHT
Dimensions
(W x H x D) 13" x 3.9" x 11.8"
(330 mm x 100 mm x 300 mm)
Weight approx. 4.41 lbs (2.0 kg)
BEHRINGER is constantly striving to maintain the highest professional
standards. As a result of these efforts, modifications may be made from
time to time to existing products without prior notice. Specifications and
appearance may differ from those listed or illustrated.
