10
Ear
Microphone Amplifier
Power Amplifier
Tape Recorder
Radio
Cassette
Recorder
P/dB
140
120
100
80
60
40

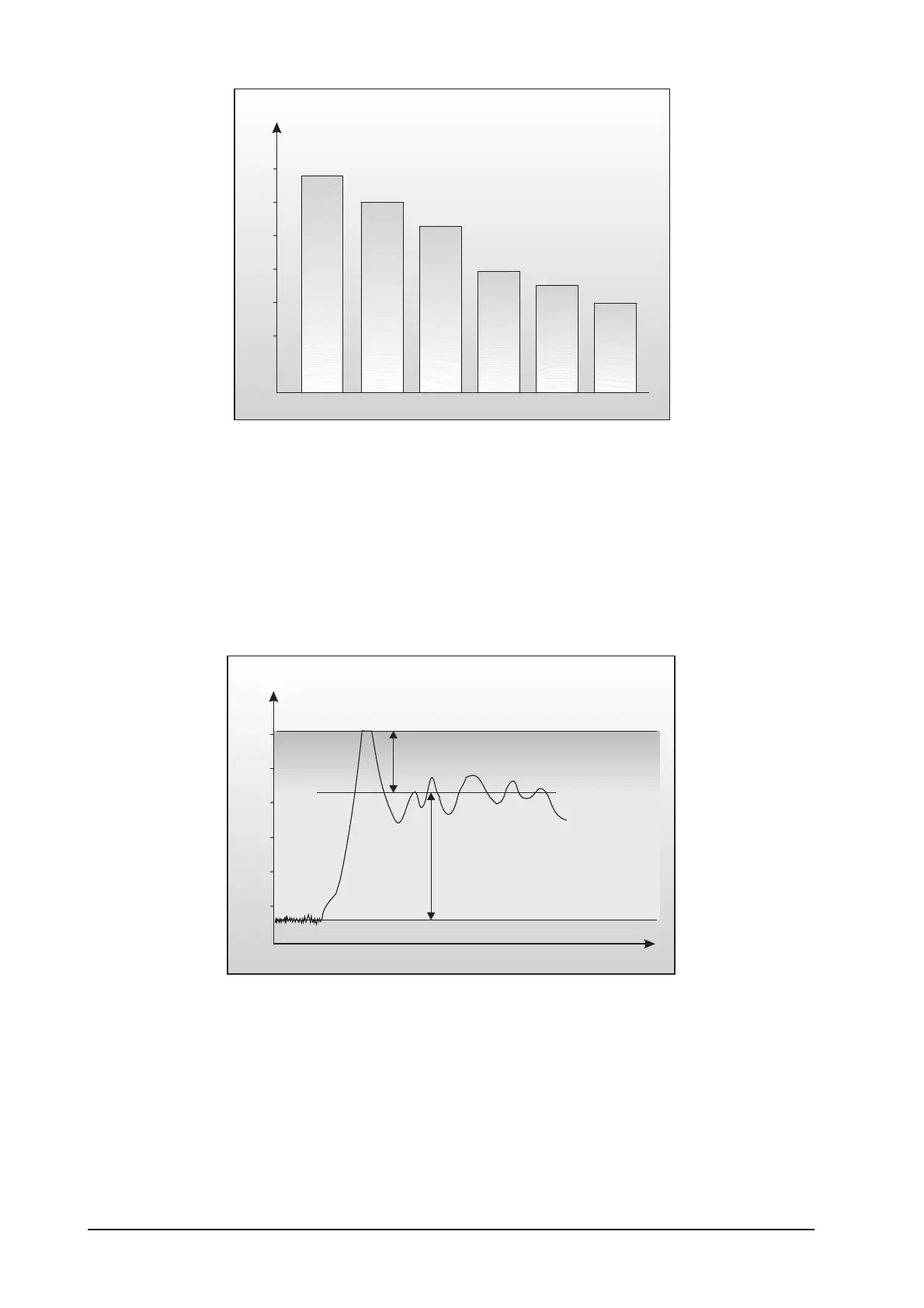

Fig. 1.1: The dynamic range capabilities of various devices
It is therefore useful to keep the operating level as high as possible without risking signal distortion in order to
achieve optimum transmission quality.
It is possible to further improve the transmission quality by constantly monitoring the program material with
the aid of a volume fader, which manually levels the material. During low passages the gain is increased,
during loud passages the gain is reduced. Of course it is fairly obvious that this kind of manual control is
rather restrictive; it is difficult to detect signal peaks and it is almost impossible to level them out. Manual
control is simply not fast enough to be satisfactory.
t
P/dB
+20
0
-20
-40
-60
-80
Clipping
Headroom
Operating level
Effective SNR
Noise floor
Fig. 1.2: The interactive relationship between the operating level and the headroom
The need therefore arises for a fast acting automatic gain control system which will constantly monitor the
signals and which will always adjust the gain to maximize the signal-to-noise ratio without incurring signal
distortion. This device is called a compressor or limiter. This system is a part of the Behringer COMPOSER
PRO.
