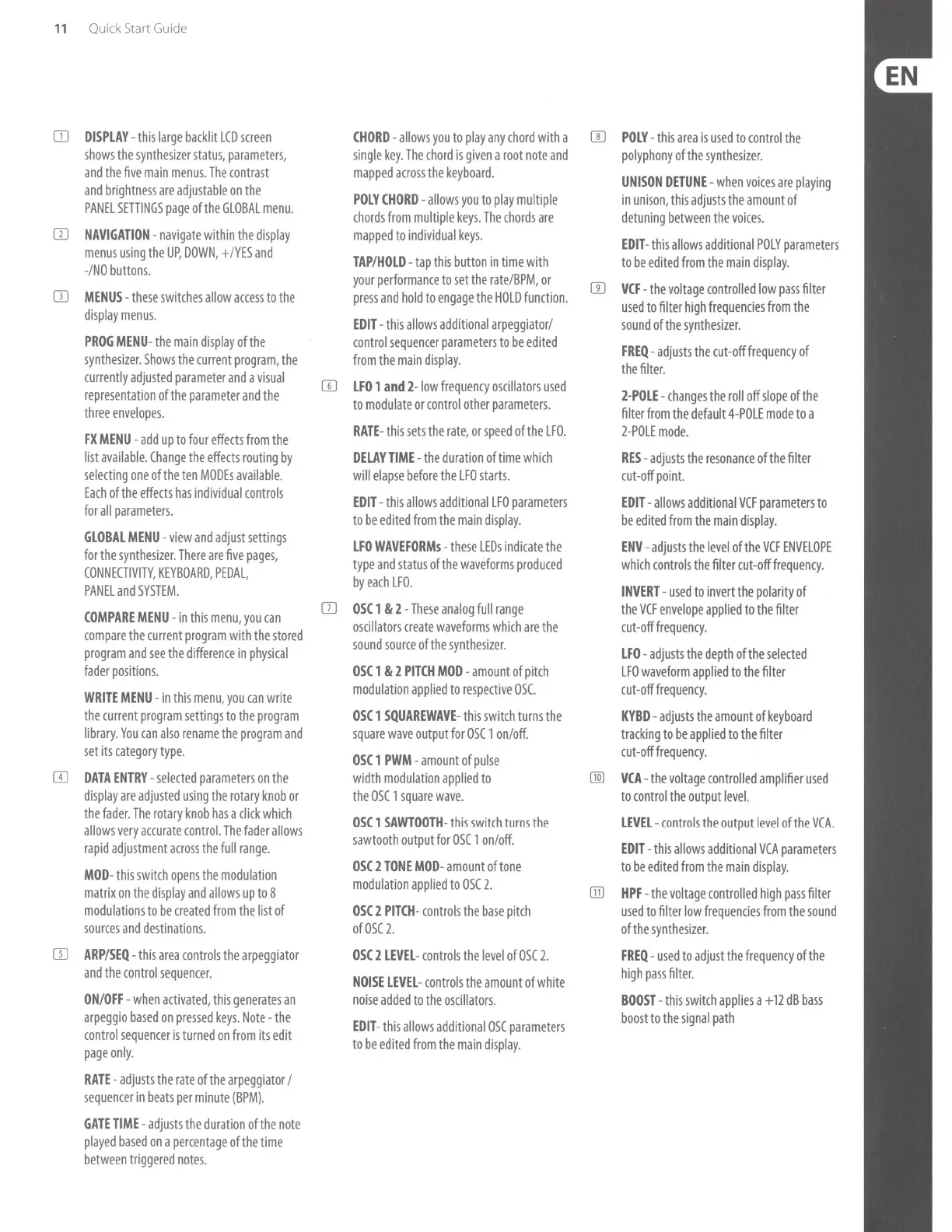

Behringer DeepMind 6 User Manual

11 Quick Start Guide
CD
DISPLAY- this large backlit LCD screen CHORD- allows you to play any chord with a
m POLY- this area is used to control the
shows the synthesizer status, parameters ,
single key. The chord is given a root note and
polyphony of the synthesizer.
and the five main menus . The contrast mapped across the keyboard.
UNISON DETUNE- when voices are playing
and brightness are adjustable on the
POLY CHORD- allows you to play multiple
in unison, this adjusts the amount of
PANEL SETTINGS page of the GLOBAL menu .
chords from multiple keys . The chords are
detuning between the voices.
CD
NAVIGATION- navigate within the display
mapped to individual keys .
EDIT- this allows additional POLY parameters
menus using the UP , DOWN , +/YES and
TAP/HOLD- tap this button in time with
to be edited from the main display .
-/ NO buttons .
your performance to set the rate/BPM, or
m VCF- the voltage controlled low pass filter
CIJ MENUS- these switches allow access to the
press and hold to engage the HOLD function .
used to filter high frequencies from the
display menus.
EDIT - this allows additional arpeggiator/
sound of the synthesizer .
PROG MENU- the main display of the
control sequencer parameters to be edited
FREQ- adjusts the cut-off frequency of
synthesizer . Shows the current program, the
from the main display.
the filter.
currently adjusted parameter and a visual
m
LFO 1 and 2-low frequency oscillators used
representation ofthe parameter and the
to modulate or control other parameters.
2-POLE- changes the roll off slope of the
three envelopes .
filter from the default 4-POLE mode to a
FX MENU- add up to four effects from the
RATE- this sets the rate, or speed of the LFO .
2-POLE mode.
list available . Change the effects routing by
DELAY TIME- the duration of time which
RES - adjusts the resonance of the filter
selecting one of the ten MODEs available .
will elapse before the LFO starts. cut-off point.
Each of the effects has individual controls
EDIT- this allows additional LFO parameters
EDIT- allows additional VCF parameters to
for all parameters.
to be edited from the main display .
be edited from the main display .
GLOBAL MENU- view and adjust settings
LFO WAVEFORMs- these LEDs indicate the
ENV- adjusts the level of the VCF ENVELOPE
for the synthesizer. There are five pages,
type and status of the waveforms produced
which controls the filter cut-off frequency.
CONNECTIV I TY, KEYBOARD, PEDAL,
PANEL and SYSTEM.
by each LFO .
INVERT- used to invert the polarity of
COMPARE MENU- in this menu, you can
CD
OSC 1 & 2- These analog full range
the VCF envelope applied to the filter
oscillators create waveforms which are the
cut-off frequency .
compare the current program with the stored
sound source ofthe synthesizer.
program and see the difference in physical
LFO- adjusts the depth of the selected
fader positions .
OSC 1 & 2 PITCH MOD- amount of pitch
LFO waveform applied to the filter
WRITE MENU- in this menu, you can write
modulation applied to respective OSC. cut -off frequency .
the current program settings to the program
OSC 1 SQUAREWAVE- this switch turns the KYBD- adjusts the amount of keyboard
library. You can also rename the program and
square wave output for OSC 1 on / off.
tracking to be applied to the filter
set its category type .
OSC 1 PWM- amount of pulse
cut -off frequency.
[I]
DATA ENTRY- selected parameters on the
width modulation applied to
Gill VCA- the voltage controlled amplifier used
display are adjusted using the rotary knob or the OSC 1 square wave.
to control the output level.
the fader . The rotary knob has a click which
OSC 1 SAWTOOTH- this switch turns the
LEVEL- controls the output level of the VCA.
allows very accurate control. The fader allows
sawtooth output for OSC 1 on/off .
rapid adjustment across the full range.
EDIT- this allows additional VCA parameters
MOD- this switch opens the modulation
OSC 2 TONE MOD- amount of tone
to be edited from the main display .
matrix on the display and allows up to 8
modulation applied to OSC 2.
GD HPF- the voltage controlled high pass filter
modulations to be created from the list of
OSC 2 PITCH- controls the base pitch
used to filter low frequencies from the sound
sources and destinations.
ofOSC 2.
ofthe synthesizer.
Cil ARP/SEQ- this area controls the arpeggiator
OSC 2 LEVEL- controls the level of OSC 2. FREQ- used to adjust the frequency of the
and the control sequencer.
NOISE LEVEL- controls the amount of white
high pass filter.
ON/OFF- when activated, this generates an
noise added to the oscillators . BOOST- this switch applies a +12 dB bass
arpeggio based on pressed keys . Note- the
EDIT - this allows additional OSC parameters
boost to the signa I path
control sequencer is turned on from its edit
to be edited from the main display .
page only .
RATE- adjusts the rate of the arpeggiator I
sequencer in beats per minute (BPM) .
GATE TIME- adjusts the duration of the note
played based on a percentage of the time
between triggered notes.

Behringer DeepMind 6 Specifications

General

Product type	Analog synthesizer
Product color	Black, White
Sound effects	Chorus, Delay, Flanger/Digital Signal Processing (DSP), Phaser, Reverberation
Tap tempo switch	Yes
User presets quantity	1024
Keyboard number of keys	37
Number of front panel sliders	26
Display type	LCD
USB ports quantity	1
Power source type	AC
