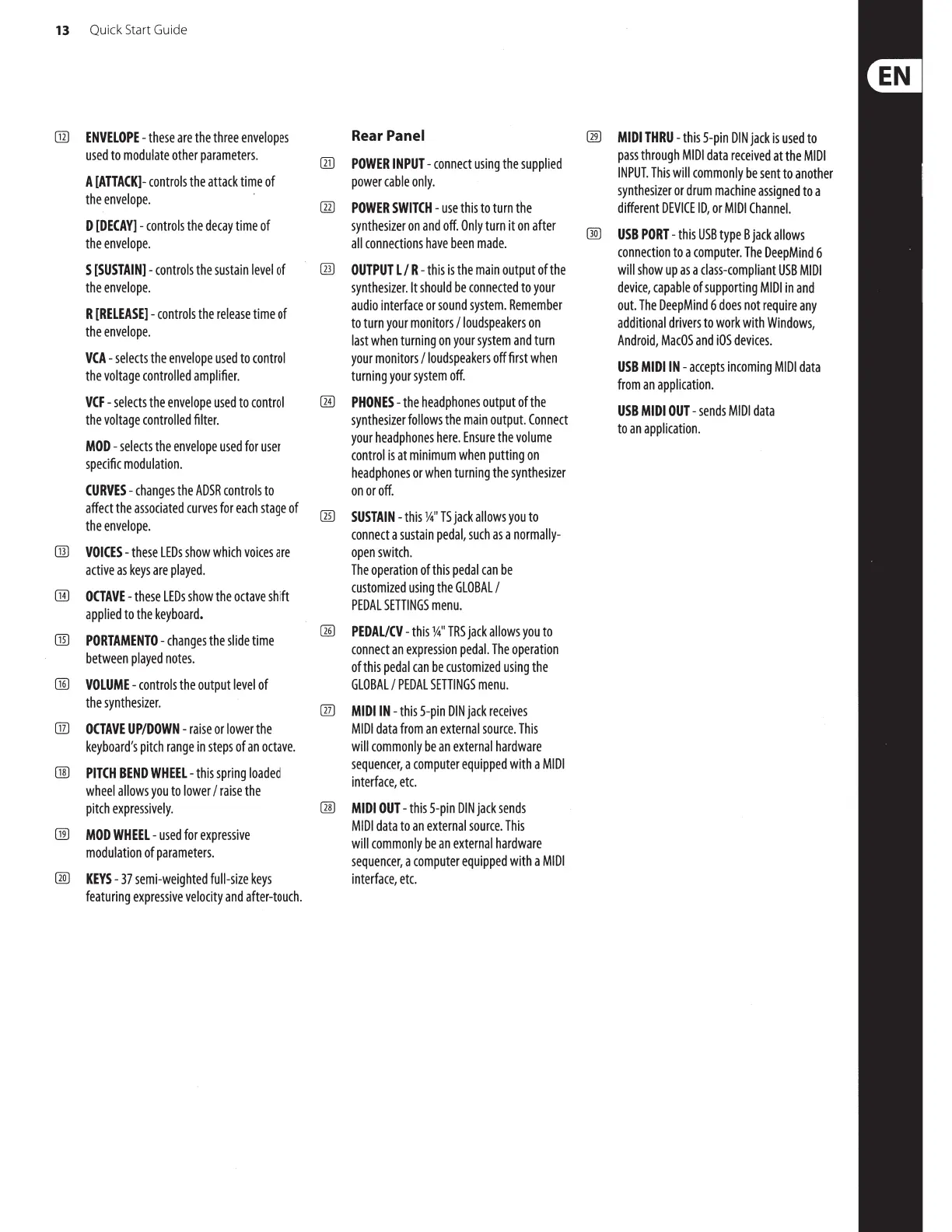

13 Quick Start Guide
(ill
ENVELOPE- these are the three envelopes
Rear Panel
lliJ MIDI THRU- this S-pin DIN jack is used to
used to modulate other parameters .
ill)
POWER INPUT- connect using the supplied
pass through MIDI data received at the MIDI
A [ATTACK)- controls the attack time of
power cable only.
INPUT. This will commonly be sent to another
synthesizer or drum machine assigned to a
the envelope .
(ill
POWER SWITCH -use this to turn the
different DEVICE ID, or MIDI Channel.
D [DECAY)- controls the decay time of synthesizer on and off. Only turn it on after
00
USB PORT- this USB type B jack allows
the envelope .
all connections have been made.
connection to a computer. The DeepMind 6
S [SUSTAIN)- controls the sustain level of em OUTPUT L I R- this is the main output of the will show up as a class-compliant USB MIDI
the envelope . synthesizer. It should be connected to your device, capable of supporting MIDI in and
R [RELEASE)- controls the release time of
audio interface or sound system. Remember out. The DeepMind 6 does not require any
the envelope .
to turn your monitors I loudspeakers on additional drivers to work with Windows,
last when turning on your system and turn Android , MacOS and iOS devices .
VCA - selects the envelope used to control your monitors I loudspeakers off first when
USB MIDI IN -accepts incoming MIDI data
the voltage controlled amplifier. turning your system off .
from an application.
VCF- selects the envelope used to control
(E)
PHONES- the headphones output ofthe
USB MIDI OUT- sends MIDI data
the voltage controlled filter . synthesizer follows the main output. Connect
to an application .
your headphones here . Ensure the volume
MOD - selects the envelope used for user
control is at minimum when putting on
specific modulation .
headphones or when turning the synthesizer
CURVES- changes the ADSR controls to
on or off .
affect the associated curves for each stage of
(ill
SUSTAIN- this%'' TS jack allows you to
the envelope.
connect a sustain pedal, such as a normally-
@)
VOICES- these LEDs show which voices are
open switch .
active as keys are played. The operation of this pedal can be
(ill
OCTAVE- these LEDs show the octave sh ift
customized using the GLOBAL I
applied to the keyboard .
PEDAL SETTINGS menu.
(ill
PORTAMENTO- changes the slide time
@
PEDAL/CV- this%'' TRS jack allows you to
connect an expression pedal. The operation
between played notes .
of this pedal can be customized using the
G1l
VOLUME - controls the output level of GLOBAL I PEDAL SETTINGS menu.
the synthesizer .
(ill
MIDI IN- this S-pin DIN jack receives
em
OCTAVE UP/DOWN - raise or lower the MIDI data from an external source . This
keyboard 's pitch range in steps of an octave . will commonly be an external hardware
[ill
PITCH BEND WHEEL- this spring loaded
sequencer, a computer equipped with a MIDI
wheel allows you to lower I raise the
interface, etc.
pitch expressively .
em
MIDI OUT- this S- pin DIN jack sends
G2J
MOD WHEEL- used for expressive
MIDI data to an external source . This
will commonly be an external hardware
modulation of parameters.
sequencer, a computer equipped with a MIDI
(ID
KEYS- 37 semi-weighted full - size keys interface, etc.
featuring expressive velocity and after - touch .

Behringer DeepMind 6 Specifications

General

Product type	Analog synthesizer
Product color	Black, White
Sound effects	Chorus, Delay, Flanger/Digital Signal Processing (DSP), Phaser, Reverberation
Tap tempo switch	Yes
User presets quantity	1024
Keyboard number of keys	37
Number of front panel sliders	26
Display type	LCD
USB ports quantity	1
Power source type	AC
