40-Bit oating-point DSP features
“unlimited” dynamic range with no
internal overload and near-zero
overall latency (0.8 msec)
Powerful scene management
forconvenient handling of
complexproductions
48-channel Digital Snake ready**
viadual AES50 ports, featuring
KLARKTEKNIK’s SuperMAC
networking capability for ultra-low
jitter andlatency
USB type-A connector providing le
storage and uncompressed stereo
recordings plus show presets and
system updates
Dedicated and easy-to-use channel
strip section with direct access
controls and graphic user interface
forintuitive workow
Additional user-denable control
section allows to set up short-cuts to
your favorite views or parameters
ULTRANET connectivity
forBEHRINGER’s P-16 Personal
Monitoring System** plus AES/EBU
stereo digital output and MIDI
Networked remote control for show
setups with on-screen software editor
via Ethernet
Built-in expansion port for audio
interface cards or digital
networkingbridges
Future rmware updates, incl. new FX
“Plug Ins”, downloadable from
behringer.com free of charge
Conceived and designed by
BEHRINGER Germany

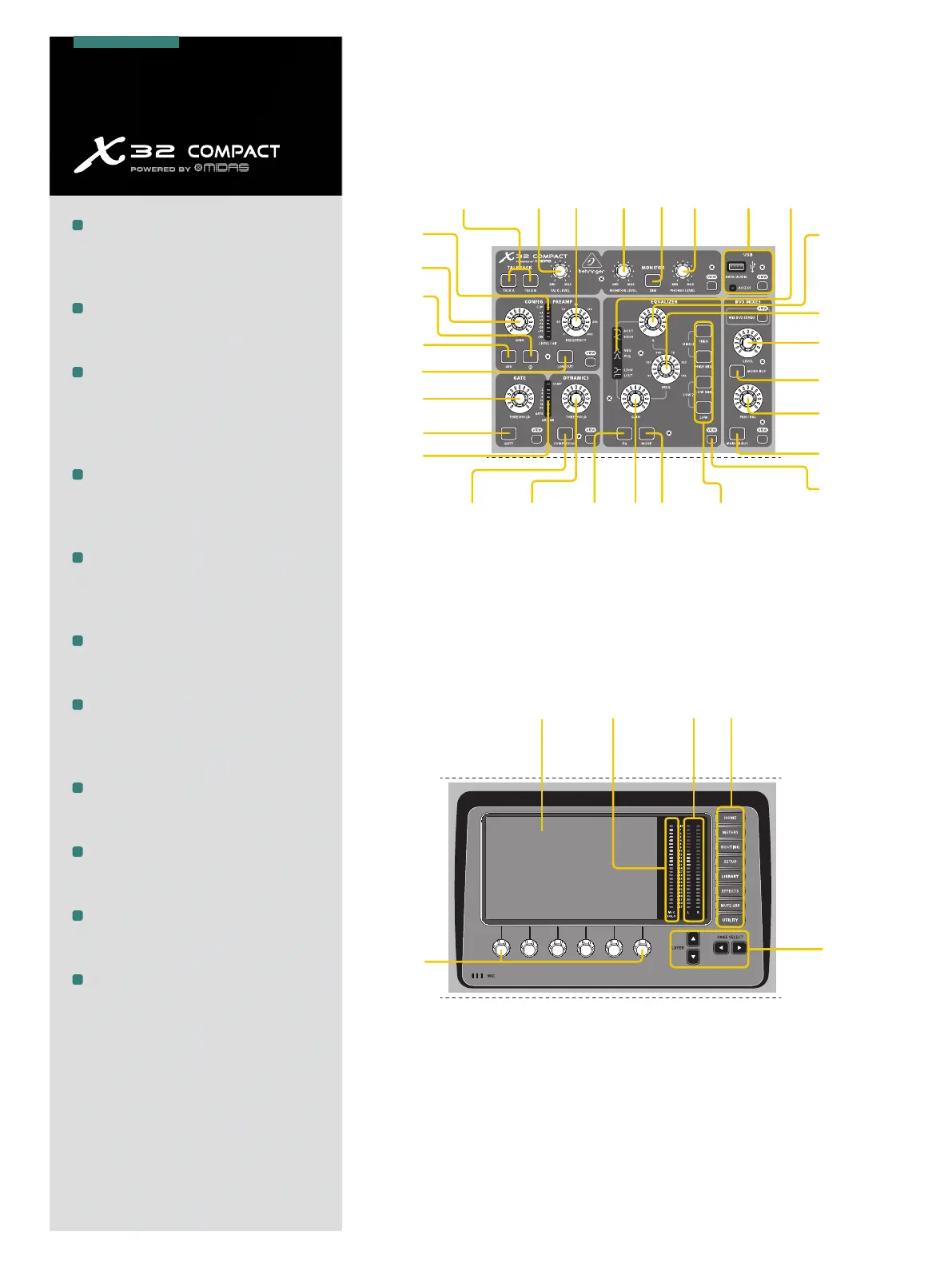

Input Channel Preamp, Dynamics & EQ Panel
Talkback
mic A and B
controls
Phones
Level
control
Talkback
Level
control
Equalizer
mode
indicator
Input Gain
adjust
Equalizer
Q adjust
Input
Level
meter
Equalizer Frequency
adjust
Low Cut
lter
frequency
adjust
Equalizer
Gain adjust
+48 V Phantom
Power On/O
Equalizer
On/O
Phase Invert
On/O
Equalizer
Mode
button
Low Cut lter
On/O
Equalizer
Band select
buttons
Gate threshold
adjust
View button per section
shows parameters on
main display
Dynamics
LED meter
USB recorder
socket with
Access LED
Dynamics
threshold
adjust
Gate On/O
Main Bus Level
control
Compressor
On/O
Mono Bus
On/O
Monitor
Level
control
Stereo Bus Balance
(pan) control
Dim
button
lowers
control
room /
phones
outputs
to user
dened
levels
Stereo Bus
On/O
Main Display
Color display
Mono Bus/Solo
level meter
LR Bus
level meter
TFT display
selection
buttons
TFT display
rotary encoders
(include button
push capability)
TFT display
navigation
controls
*FireWire, iPad, and iPhone are trademarks of Apple Inc., registered in the
U.S. and other countries. The AES50 trademark is a property of the Audio
Engineering Society, NY. All trademarks, including, but not limited to HUI,
Mackie, Lexicon, PCM, EMT, Quantec and QRS are trademarks or registered
trademarks of their respective owners. Their use neither constitutes a
claim of the trademark nor aliation of the trademark owners with
MUSIC Group. Product names are mentioned solely as a reference for
X32COMPACT compatibility and eects.
**P16 Personal Monitoring System and Digital Snake are not included.

Behringer DIGITAL MIXER X32 COMPACT Specifications

Input Characteristics

total number of input sources	150 / 160 @ 48 kHz sample rate
input impedance XLR	5 kΩ / 10 kΩ unbal. / bal.
equivalent input noise	-128 dBu

Output Characteristics

output level XLR	+4 dBu / +21 dBu
output impedance XLR	75 Ω
phones output impedance / level	40 Ω / +25 dBm (stereo)

Power

phantom power	48 V switchable per input
power consumption	120 W
power supply	100-240 V (50/60 Hz)
