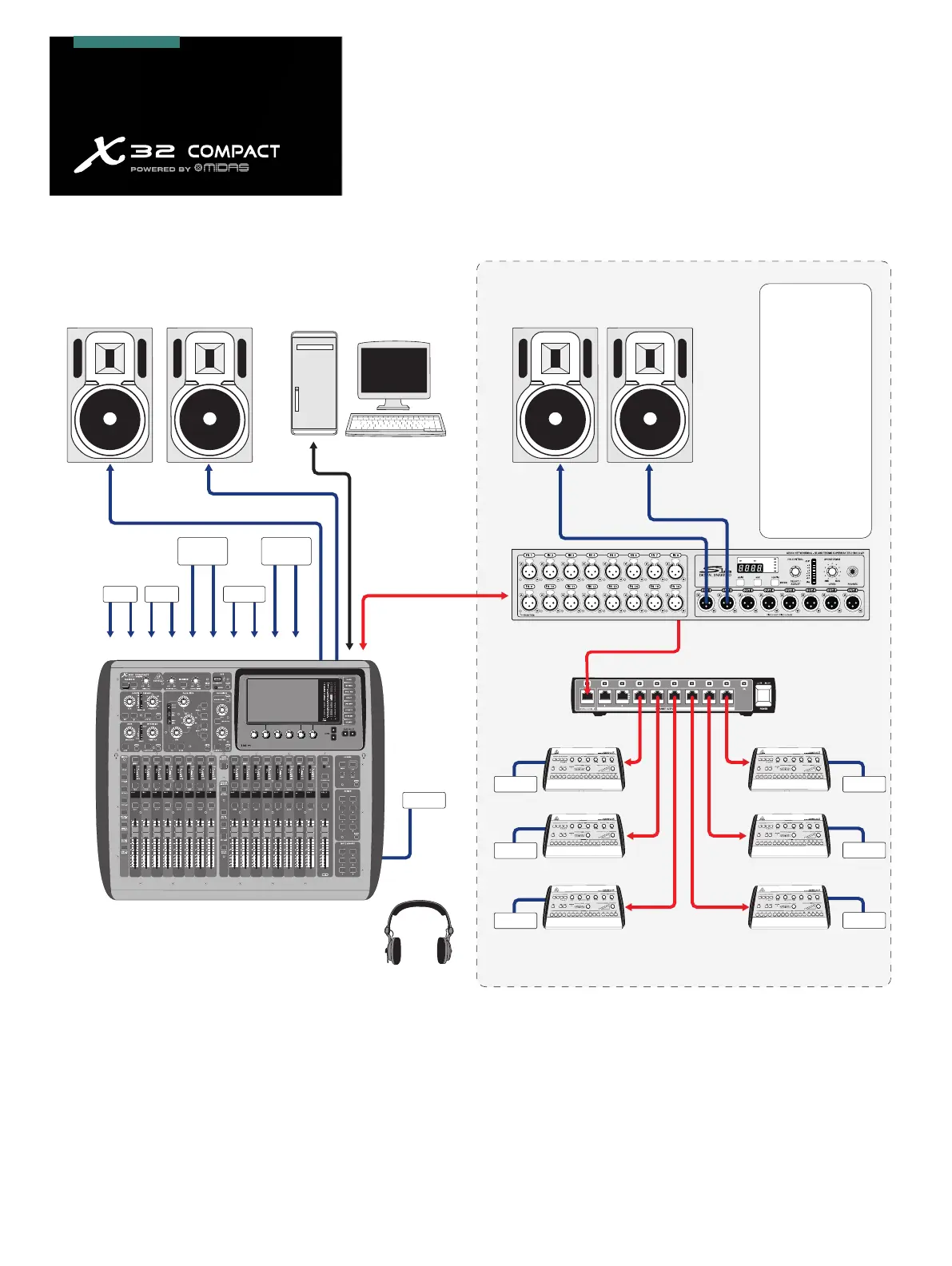

X32 COMPACT Recording Studio Setup
Phones
FireWire/
USB cable
from XUF
interface
card
Monitor/Control Room Out
17 18 19 20 21 22 23 24 25 26
L
L
R
R L R L R L R L R
Keys 1 Keys 2 Sampler
Rack
Expander
Outboard
FX
Computer tower with DAW software
B3031A Studio MonitorsB3031A Studio Monitors
P16-D Distributor
DIGITAL SNAKE S16
AES50 cable
DIGITAL MIXER X32 COMPACT
POWERPLAY P16-M
Personal Monitor Mixers
Phones
Phones
Phones Phones
Phones
Phones
S16 Input List
Recording RoomControl Room
1. Lead Vocal
2. Vocal 2
3. Vocal 3
4. Vocal 4
5. Vocal 5
6. Acoustic Guitar
7. Rhythm E. Guitar
8. Lead E. Guitar
9. E. Bass (via DI)
10. Kick
11. Snare
12. Tom 1
13. Tom 2
14. Floor Tom
15. Overhead 1
16. Overhead 2
HPX6000

Behringer DIGITAL MIXER X32 COMPACT Specifications

Input Characteristics

total number of input sources	150 / 160 @ 48 kHz sample rate
input impedance XLR	5 kΩ / 10 kΩ unbal. / bal.
equivalent input noise	-128 dBu

Output Characteristics

output level XLR	+4 dBu / +21 dBu
output impedance XLR	75 Ω
phones output impedance / level	40 Ω / +25 dBm (stereo)

Power

phantom power	48 V switchable per input
power consumption	120 W
power supply	100-240 V (50/60 Hz)
