Behringer MicroHD HD400 - Input and Output Connector Details; Applications and Wiring Example

2 MICROHD HD400
(1) Both inputs of the HD400, INPUT 1 and INPUT 2 are laid out as
¼" TRS connectors.
(2) Both outputs of the HD400, OUTPUT 1 and OUTPUT 2 are laid
out as ¼" TRS connectors.
SERIAL NUMBER. The serial number of the HD400 is located at the
bottom.
◊ ◊ The HD400 is a passive device. Therefore, no power
supply is needed.
Applications
The following gure shows an example of how to use the MicroHD
HD400.

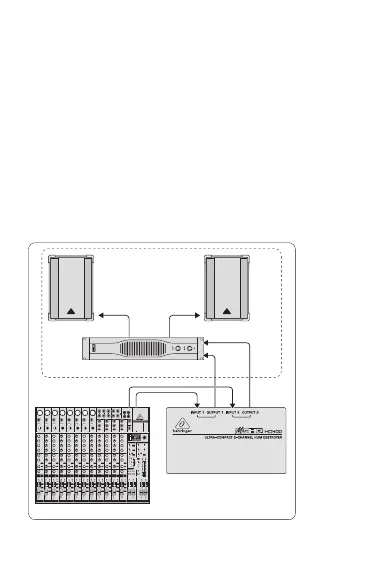

Example: HD400 wiring
EURORACK UB2222FX-PRO
MicroHD HD400
EUROPOWER EP2000
Output L Output R
EUROPOWER EP2000
EUROLIVE B1220 PRO EUROLIVE B1220 PRO
