Behringer VIRTUALIZER 3D FX2000 Quick Start Guide

12 13FX2000 VIRTUALIZER 3D Quick Start Guide

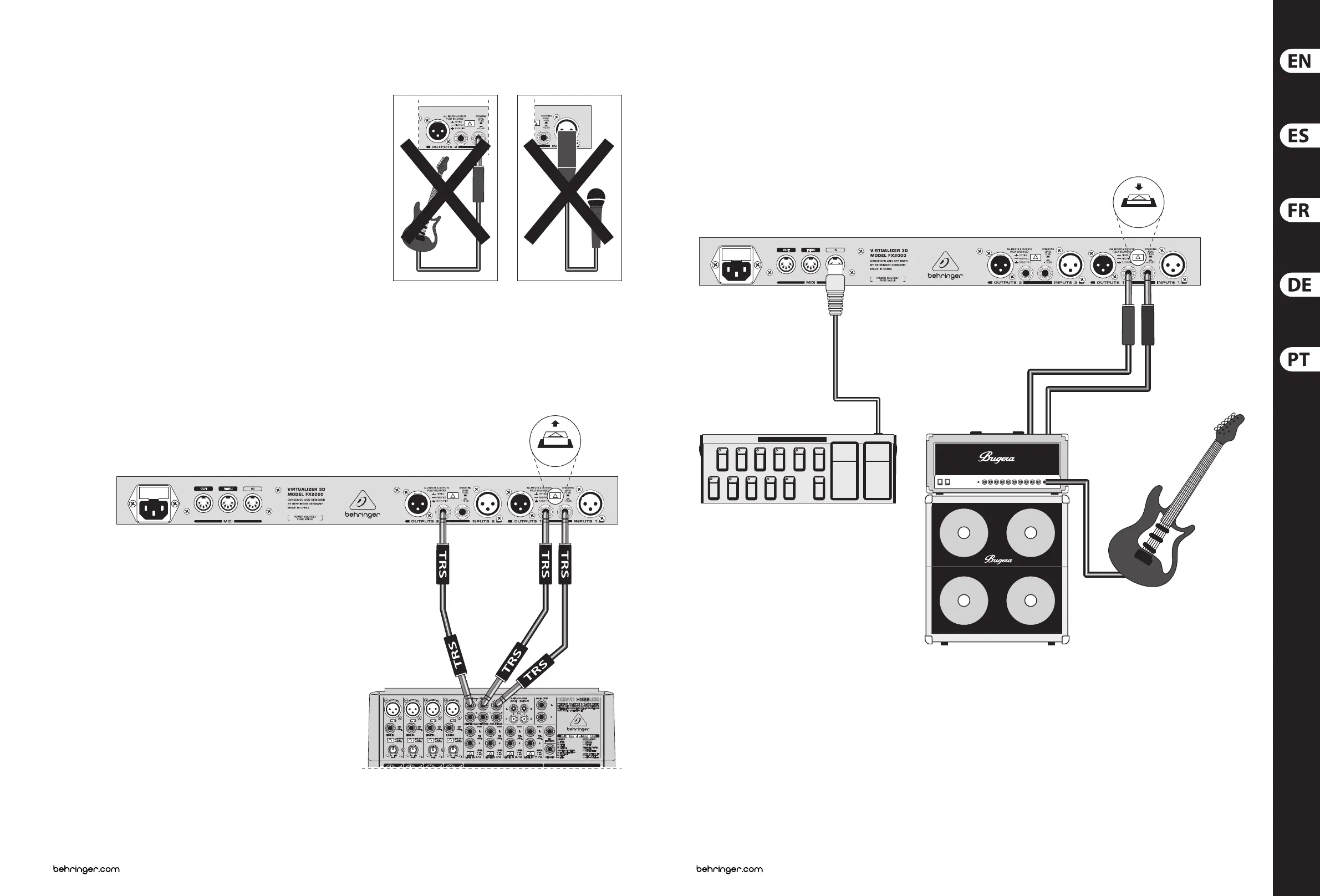

FX2000 VIRTUALIZER 3D Hook-up
(EN) Step 1: Hook-Up
(ES) Paso 1: Conexión
(FR) Etape 1 : Connexions
(DE) Schritt 1: Verkabelung
(PT) Passo 1: Conexões
FX2000 REAR Panel
X1622USB
AUX RETURNS
AUX SEND
+4 dBu
FX2000 REAR Panel
412H-BK
1990
FCB1010
RETURN SEND
-10 dBV
INPUTS 1
External effects processor with mixing board
Procesador de efectos y mesa de mezclas exteriores
Processeur d'effets externe et console de mixage
Externer Effektprozessor mit Mischpult
Processador de efeitos externos com mesa de mixagem
FX2000 in guitar amp effects loop
FX2000 en bucle de efectos de amplificador de guitarra
FX2000 en boucle d'effet sur un ampli guitare
FX2000 in der Effekt-Schleife eines Gitarrenverstärkers
FX2000 no circuito de efeito do amplificador da guitarra

Behringer VIRTUALIZER 3D FX2000 Specifications

Analog Inputs and Outputs

input connectors	XLR and ¼" TRS
input impedance	80 kΩ balanced
output connectors	XLR and ¼" TRS

Power

voltage USA/Canada	120 V~, 60 Hz
voltage Europe/U.K./Australia	230 V~, 50 Hz
power consumption	15 Watts max.

System Specifications

bandwidth	20 Hz to 20 kHz, +/- 3 dB
SNR	91 dB, unweighted, 20 Hz to 20 kHz
THD	0.018 % typ. @ +4 dBu, 1 kHz, 0 dBu input, gain 1

Weight and Dimensions

dimensions	8.54 x 1.75 x 19.01" (217 x 44.5 x 483 mm)
net weight	4.18 lbs / 1.9 kg
