Beijer Electronics X2 control Startup Guide

X2 control – Basic Start Up settings SUEN284 2017-04
www.beijerelectronics.se 16 (19)
Normal.dotm
, 070221
CODESYS, transfer project to X2 control via USB or SD card memory
The USB- or SD-card memory must be prepared with CODESYS PLC application.
Boot up the X2 control device with the USB or SD card memory mounted, then will you be
able upload the CODESYS application from the memory to the X2 control device.

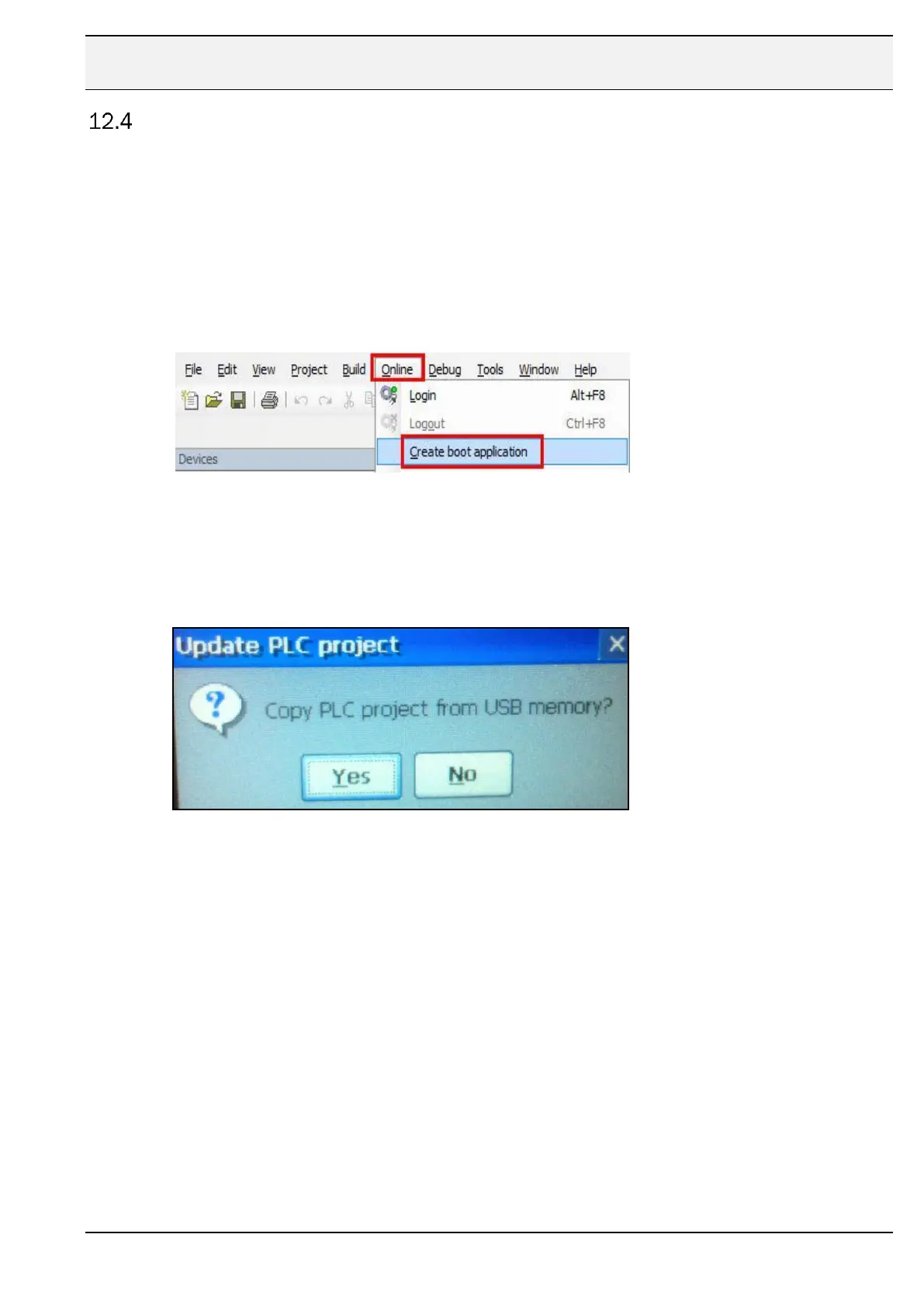

12.4.1 Export project from CODESYS programming tool
 Menu\Online\Create boot application\... and save the project files (.app/.crc) in the root of
the USB- or SD-card memory
Note!
Use default name on the project files!
12.4.2 Copy CODESYS project from USB/SD –card to X2 control
 Restart the X2 controlpanel with USB \ SD-card mounted.
 You will be asked if you wish to load the CODESYS project
“Copy PLC project from USB memory?”
Important note!
 When download a CODESYS application will the SoftControl memory be cleared!
Includes even the Persistent variabels (the battery powered memorycells and register)
Tip! It’s also possible to download the iX HMI application via USB or SD-card.
Fore more information, refer the X2 Software (MAEN205x) manual.
