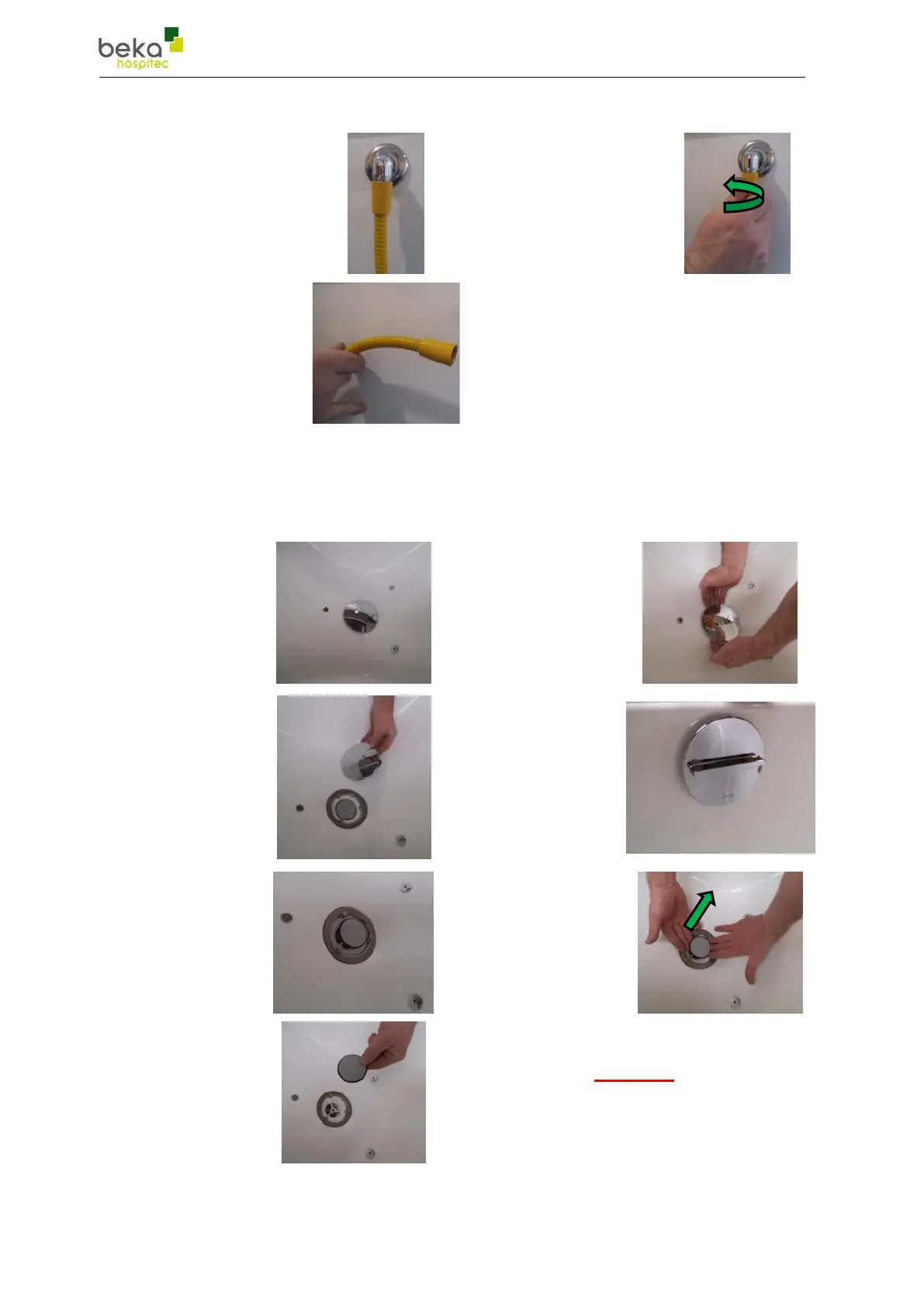

13.7.5 Changing the disinfectant hose
Picture 1:
The picture shows the
disinfectant hose as well
as the elbow fitting on the
tub.
Picture 2:
Unscrew the
disinfectant hose from
the elbow fitting.
Picture 3:
The picture shows the
unscrewed disinfectant
hose.
Assembly of the disinfectant hose is done in the reverse order!
13.7.6 Changing the eccentric screw fittings (drainage and
overflow)
Picture 1:
The picture shows
the eccentric
cover.
Picture 2:
To loosen the cover,
pull it in an upward
direction.
Picture 3:
The picture shows
the removed cover.
Picture 4:
The rotary actuation
must be positioned
horizontally (Viega
logo must be
recognizable) before
the drip plug can be
loosened.
Picture 5:
Bring the eccentric
plugs to an upright
position.
Picture 6:
The upward pulling
motion allows the
removal of the
eccentric plugs.
Picture 7:
The picture shows
the removed
eccentric plugs
Warning:
When fitting the drip plug into its casing,
ensure it is correctly locked.
Assembly of the drip plugs is done in the reverse order.
