c. Connect the panel wiring to the rear terminal
block as shown in Fig 4. To simplify
installation, the terminals are removable so
that the panel wiring can be completed
before the instrument is installed.

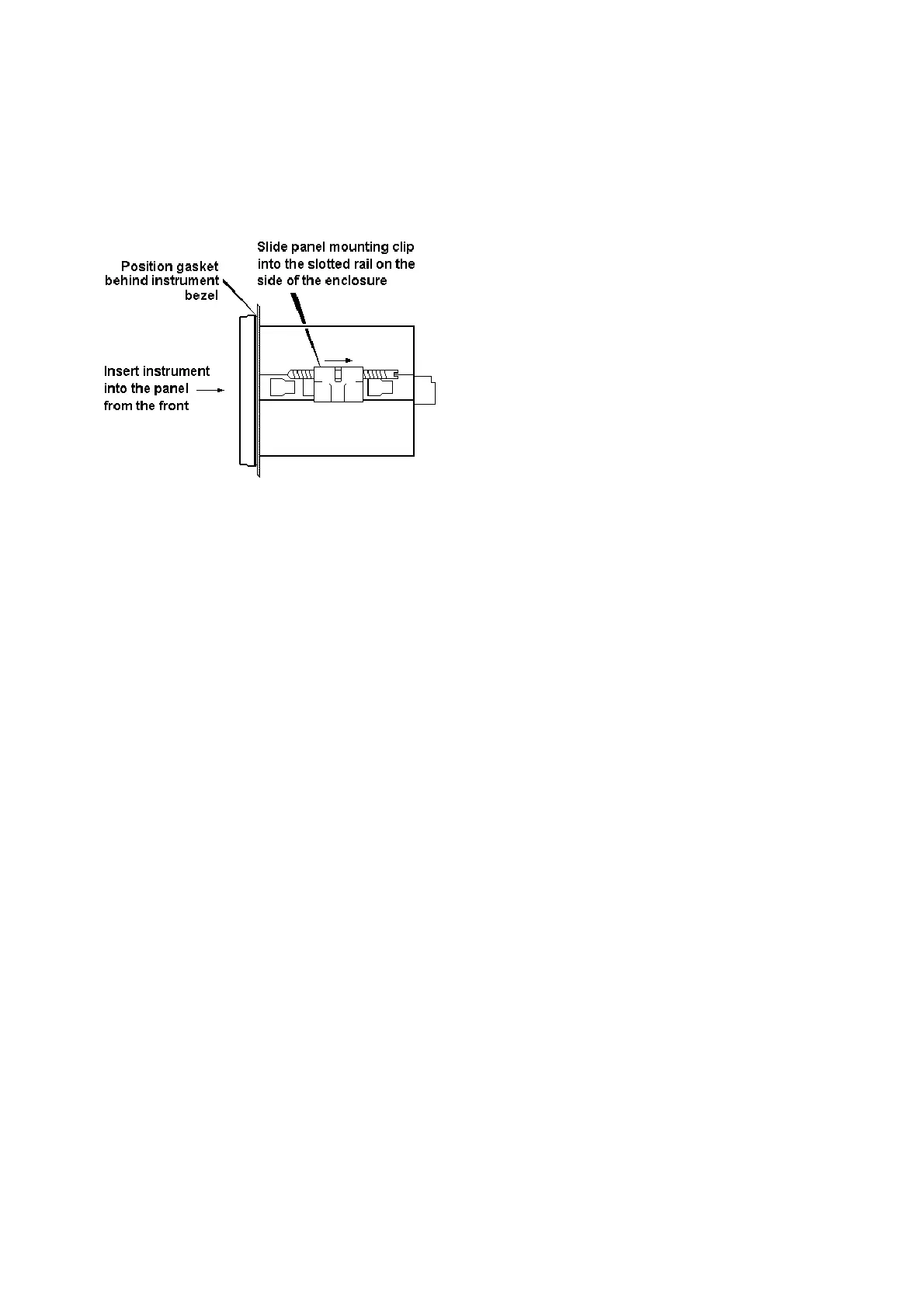

Fig 5 Fitting panel mounting clips
5.3 EMC
The BA327C and BA328C comply with the
requirements of the European EMC Directive
2004/108/EEC. For specified immunity all wiring
should be in screened twisted pairs, with the
screens earthed within the safe area. The
indicator enclosure may be earthed locally by
putting a tag under one of the rear panel fixing
screws. EMC performance is shown in the
instrument specification and copies of the report
are available from BEKA associates.
