12.2 Removing an SFP transceiver (optional)

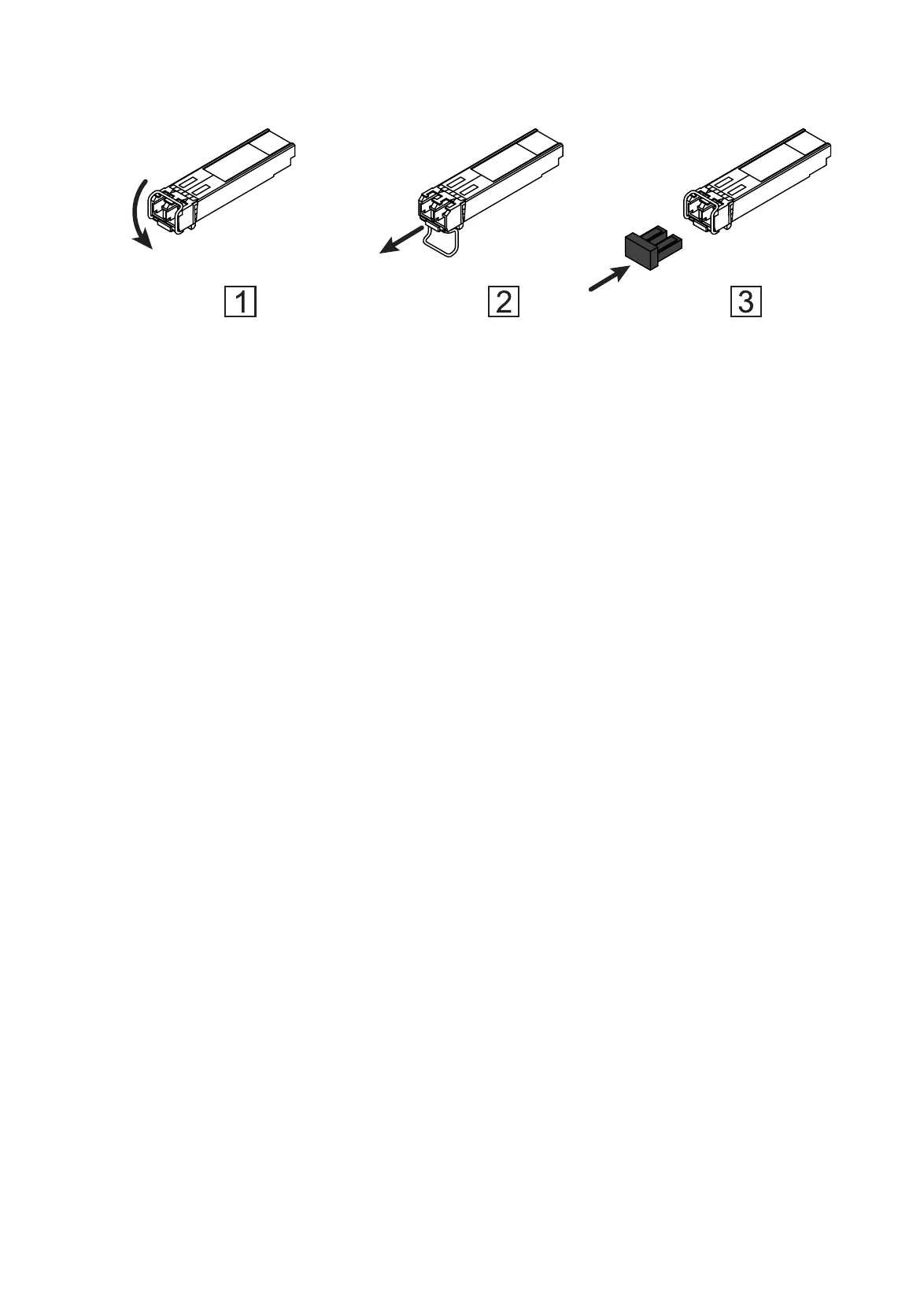

Figure 21: Removing an SFP transceiver: Removal sequence
Perform the following work steps:
 Open the locking mechanism of the SFP transceiver (1).
 Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
 Close the SFP transceiver with the protection cap (3).
