39
KH-AF non-direct mounting with ZG-108 mounting bracket
KH-AF (-1) crankarm
with KH-AFV V-bolt kit
KH-8 crankarm
Multiple dampers direct coupled to one actuator with linkage to
operate the other damper.

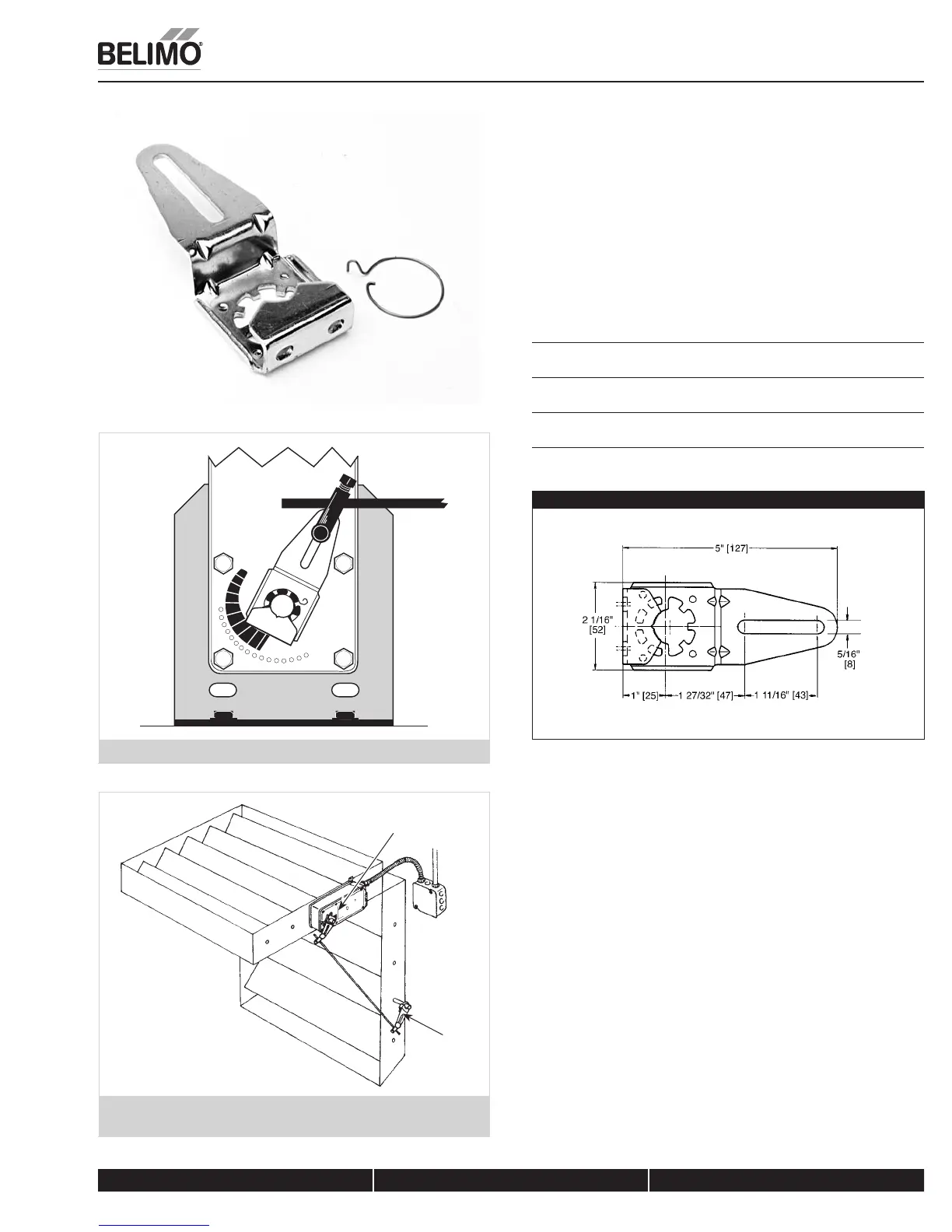

Installation Instructions
Non-direct Mounting Methods
KH-AF Crankarm
Including Retaining Ring
CAUTION: The retaining clip supplied with the clamp is not used to mount the
KH-AF crankarm.
The KH-AF (-1) crankarm is used in non-direct coupled mounting applications.
The KH-AF (-1) may also be used to simultaneously direct couple to a damper
shaft and provide an additional crank arm connection to a second damper. The
KH-AFV V-bolt kit must be used for this non-direct application (see illustration
this page).
TWO SIZES ARE AVAILABLE:
KH-AF For round shafts up to 3/4” or square shafts up to 5/8”
KH-AF-1 For jackshafts up to 1.05”
KH-AFV V-bolt kit for KH-AF(-1) crankarm
Note: KH-AF (-1) crankarms cannot be used on AF Series 1 actuators.
Dimensions (Inches [mm])
KH-AF (-1) dim scan
K20901 - 01/09 - Subject to change. © Belimo Aircontrols (USA), Inc.
