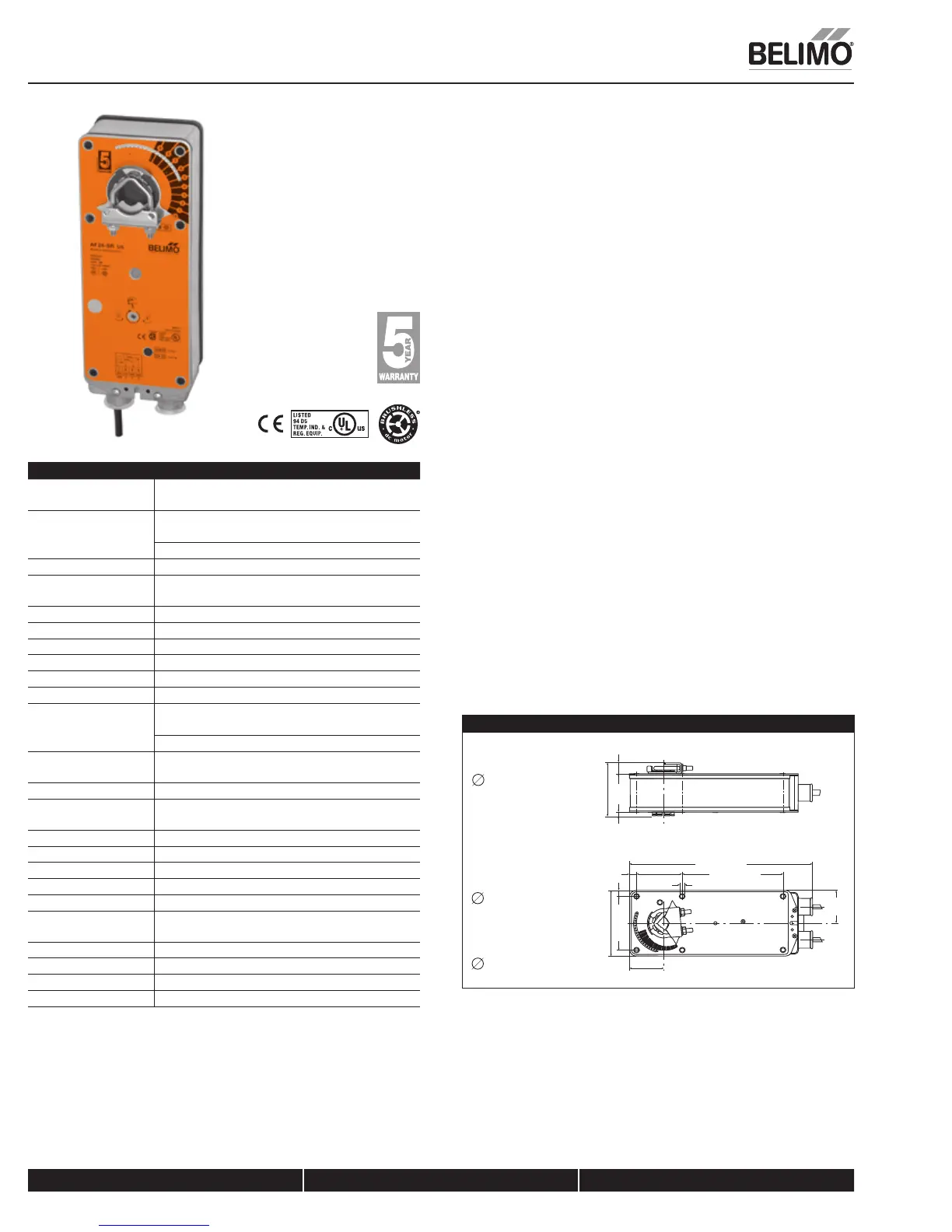

Technical Data AF24... US
Power supply 24 VAC ± 20% 50/60 Hz
24 VDC ± 10%
Power consumption
running 6 W
holding 2 W
Transformer sizing 10 VA (class 2 power source)
Electrical connection 3 ft, 18 GA appliance cable
1/2” conduit connector
Overload protection electronic throughout 0 to 95° rotation
Operating range Y 2 to 10 VDC, 4 to 20 mA
Input impedance 100 k7 (0.1 mA), 500 7
Feedback output U 2 to 10 VDC (max. 0.5 mA) for 95°
Angle of rotation mechanically limited to 95°
Torque 133 in-lb [15 Nm] constant
Direction of rotation
spring reversible with cw/ccw mounting
motor reversible with built-in switch
Position indication visual indicator, 0° to 95°
(0° is spring return position)
Manual override 3mm hex crank (shipped w/actuator)
Running time 150 sec. constant, independent of load,
spring return < 20 sec
Humidity 5 to 95% RH non-condensing
Ambient temperature -22°F to 122°F [-30°C to 50°C]
Storage temperature -40°F to 176°F [-40°C to 80°C]
Housing NEMA type 2 / IP54
Housing material zinc coated metal
Agency listings cULus acc. to UL 873 and
CAN/CSA C22.2 No. 24-93
Noise level max. 45 dB (A)
Servicing maintenance free
Quality standard ISO 9001
Weight 6.0 lbs (2.7 kg)
Torque min. 133 in-lb, for control of air dampers
Application
For proportional modulation of dampers in HVAC systems. Actuator sizing should
be done in accordance with the damper manufacturer’s specifications.
The actuator is mounted directly to a damper shaft up to 1.05” in diameter by
means of its universal clamp. A crankarm and several mounting brackets are
available for applications where the actuator cannot be direct coupled to the
damper shaft.
The actuator operates in response to a 2 to 10 VDC, with the addition of a 500
7
resistor, a 4 to 20 mA control input from an electronic controller or positioner. A
2 to 10 VDC feedback signal is provided for position indication or master-slave
applications.
Operation
The AF series actuators provide true spring return operation for reliable fail-safe
application and positive close-off on air tight dampers. The spring return system
provides constant torque to the damper with, and without, power applied to the
actuator.
The AF series provides 95° of rotation and is provided with a graduated position
indicator showing 0 to 95°. The AF has a unique manual positioning mechanism
which allows the setting of any damper position within its 95° of rotation. The
actuator is shipped at +5° position (5° from full fail-safe) to provide automatic
compression against damper gaskets for tight shut-off. When power is applied,
the manual mechanism is released and the actuator drives toward the full fail-
safe position. The actuator will memorize the angle where it stops rotating and
use this point for its zero position for its normal control operations. The manual
override can also be released physically by the use of a crank supplied with the
actuator.
The AF uses a brushless DC motor which is controlled by an Application Specific
Integrated Circuit (ASIC) and a microprocessor. The microprocessor provides the
intelligence to the ASIC to provide a constant rotation rate and to know the
actuator’s exact zero position. The ASIC monitors and controls the brushless DC
motor’s rotation and provides a digital rotation sensing function to prevent
damage to the actuator in a stall condition. The actuator may be stalled anywhere
in its normal rotation without the need of mechanical end switches.
Dimensions (Inches [mm])
1.97"
3.15" [80]
3.86" [98]
3.25" [82.7]
2.24"
[57]
[50]
1.93"
[49]
2.64"
[67]
0.26" [6.5]
5.85" [148.5]
10.47" [266]
0.35" [9]
0.39" [10]
0.65" [16.5]
0.19" [5]
K4-2 US (supplied)
1/2" Centered
(Default)
3/4" Centered
(Field Selectable)
1.05" Centered
(Field Selectable)
K4-1 US (optional)
3/4" to 1.05"
Adjustable
K4 US (optional)
3/8" to 3/4"
Adjustable
D001
AF24-SR US
Proportional Damper Actuator, Spring Return Fail-Safe,
24 V for 2 to 10 VDC and 4 to 20 mA Control Signal.Output Signal of 2 to 10 VDC for Position Indication.
