Belimo EPF+MP Series - Dimensions & Weight; Further Documentation

Service Tools connection
The actuator can be parameterised by ZTH AP via the service socket.
For an extended parameterisation the PC tool can be connected.
Connection ZTH AP / PC-Tool
1 32 5
AC 24 V
DC 24 V
– +
T
~
UY
Y
U
BELIMO
PC-Tool
USB
MP USB


i
esc OK
ZTH AP

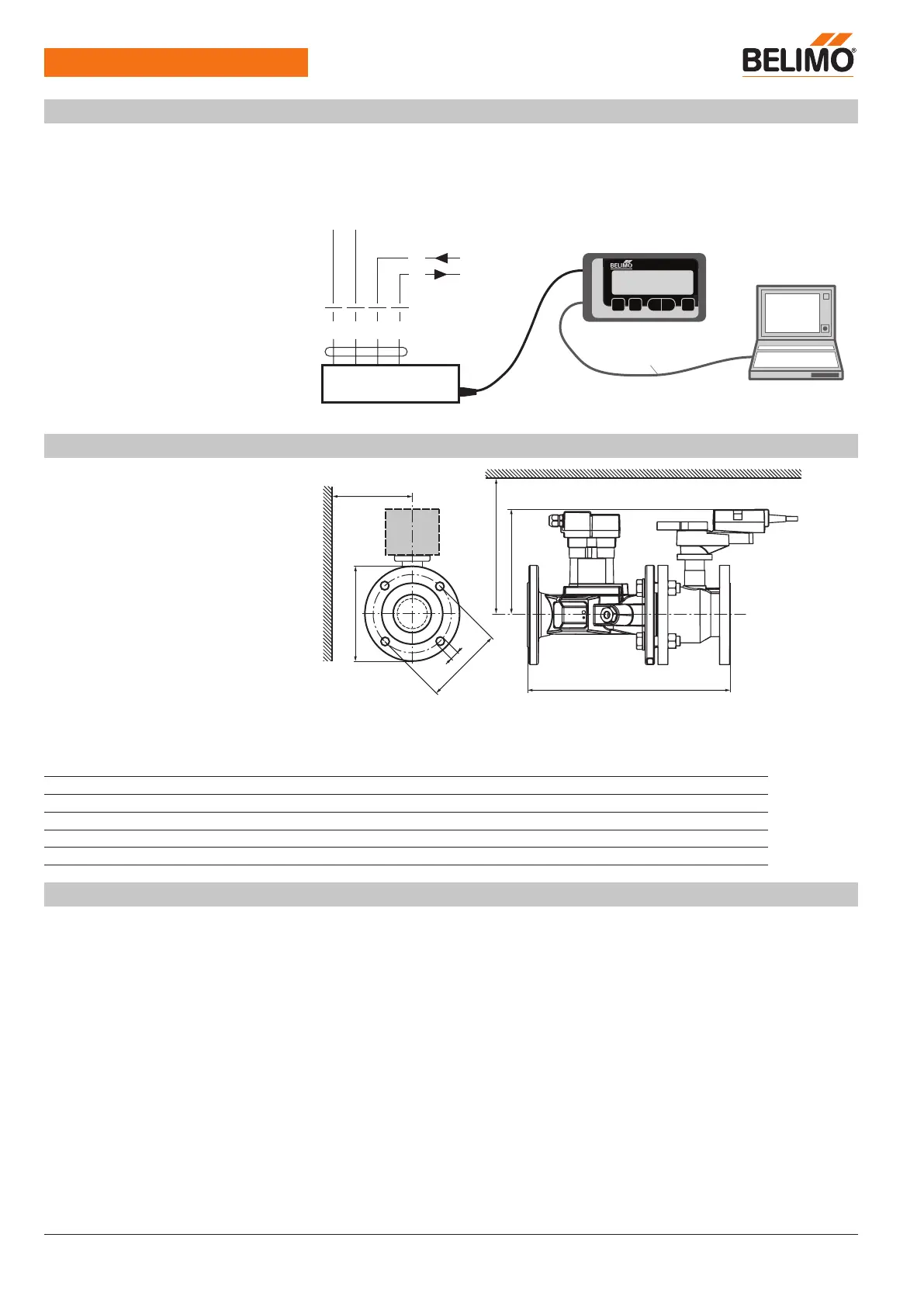

Dimensions / Weight
Dimensional drawings
L
H
min. X
min. Y
D
K
d
If Y <180 mm, the extension of the hand crank must be demounted as necessary.
Type DN
[ ]
L
[ mm]
H
[ mm]
D
[ mm]
d
[ mm]
K
[ mm]
X
[ mm]
Y
[ mm]
Weight
EP065F+MP 65 379 205 185 4 x 19 145 220 150
26 kg
EP080F+MP 80 430 205 200 8 x 19 160 220 160 35 kg
EP100F+MP 100 474 221 229 8 x 19 180 240 175 52 kg
EP125F+MP 125 579 249 252 8 x 19 210 260 190 70 kg
EP150F+MP 150 651 249 282 8 x 23 240 260 200 90 kg
Further documentation
• Overview MP Cooperation Partners
• Tool connections
• Introduction to MP-Bus Technology
• General notes for project planning
EP..F+MP
Electr. 2-way PI-CCV EPIV, Flange, PN 16
Service
www.belimo.com
EP..F+MP • en-ap • 2019-06-03 • subject to changes
