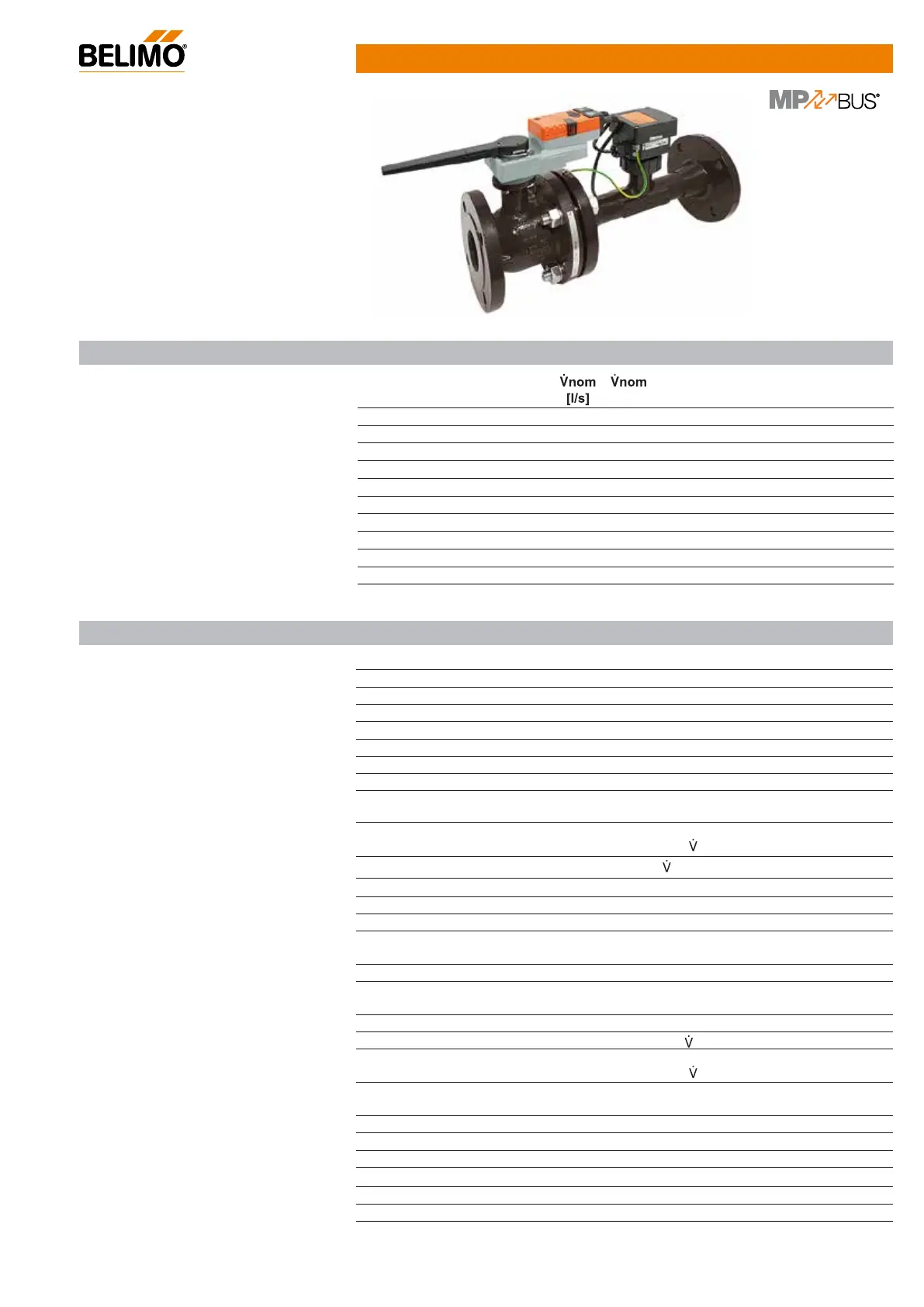

V3.3 07.2016•Subject to modifi cation
UL marked actuators is optional, please contact your local Sales Representative for details.
7
Characterised control valve (CCV) with
sensor-operated flow control, 2-way,
with flange PN16
Nominal voltage AC/DC 24V
Control modulating
For modulating water-side control of
air handling unit and heating systems
Communication via Belimo MP-Bus
or conventional control
Conversion of (active) sensor signals
and switching contacts
Model No. Frequency
[Hz] [l/min]
kvs theor.*
[m³/h]
DN
[mm]
Rp
[”]
PN
[bar]
n(gl)
[ ]
P6065W800E-MP 50
8 480 45 65 2 1/2 16 3.2
P6080W1100E-MP 50
11 660 65 80 3 16 3.2
P6100W2000E-MP 50
20 1200 115 100 4 16 3.2
P6125W3100E-MP 50
31 1860 175 125 5 16 3.2
P6150W4500E-MP 50
45 2700 270 150 6 16 3.2
P6065W806E-MP 60
8 480 45 65 2 1/2 16 3.2
P6080W1106E-MP 60
11 660 65 80 3 16 3.2
P6100W2006E-MP 60
20 1200 115 100 4 16 3.2
P6125W3106E-MP 60
31 1860 175 125 5 16 3.2
P6150W4506E-MP 60
45 2700 270 150 6 16 3.2
Electrical data
Nominal voltage AC/DC 24V
Nominal voltage frequency 50
/60Hz (upon request)
Nominal voltage range AC 19.2...28.8V / DC 21.6...28.8V
Power consumption in operation 9.5 W
Power consumption in rest position 6.5 W
Power consumption for wire sizing 1
3
V A
Connection supply / control Cable 1m, 4 x 0.75 mm²
Parallel operation Yes (note the performance data)
Flow
measurement Measuring principle Magnetic inductive volumetric flow
measurement
Measuring accuracy ±2%
(of 25...100%
nom at 20°C, Glycol 0% vol.)
Min. flow measurement
1.25% of
nom
Functional data
Torque motor 20Nm (DN 65...80) / 40Nm (DN 100...150)
Positioning signal Y DC 0...10V
Operating range Y DC 2...10V
Operating range Y variable Start point DC 0.5...24V
End point DC 8.5...32V
Position feedback U DC 2...10V
Position feedback U variable Start point DC 0.5...8V
End point DC 2…10V
Sound power level motor max. 45
dB(A)
Adjustable flow rate max
30...100% of
nom
Control accuracy ±5%
(of 25...100%
nom at 20°C, Glycol 0% vol. )
Media Cold and hot water, water with glycol up to max.
60% vol.
Media temperature -10°C...120°C
Closing pressure ∆ps 690 kPa
Differential pressure ∆pmax 340kPa
Flow characteristic Equal percentage (VDI/VDE 2178), linear
Leakage rate Air bubble-tight (Leakage rate A, EN12266-1)
Pipe connections Flange (ISO 7005-2 / EN 1092-1)
Technical data sheet P6..W..E-MP
Type overview
Technical data
: Theoretical kvs value for pressure drop calculation*
