BASIC SETUP
➧ Automatic Image Adjustment ....................................
You can adjust the image settings (such as image posi-
tion, phase, etc.) manually or by using the LCD monitor’s
automatic image adjustment feature. This will adjust the
image parameters to their optimal settings for the current
graphics mode. Press
AUTO (
in fig. 4) to launch the
automatic adjustment. The process will take a short while
until completed.
➧ Shortcut for adjusting contrast and brightness ......
You can adjust contrast and brightness directly by pressing
the < button (
in fig. 4) while the OSD menu is not
displayed. Press the >
button (
in fig. 4)
to increase
the contrast/brightness or the
< button
(
in fig. 4) to
decrease it.
➧ Setting the volume directly ...................................
You can adjust the volume directly by pressing button
>
(
in fig. 4) when the OSD menu is not displayed on
screen. You can then change the volume by pressing the
buttons
<
or
>
(
and
in fig. 4).
IMAGE SETTINGS USING THE OSD MENU
The OSD menu is a window on your screen that allows
you to view and change display settings. To change an
OSD setting:
1. Press the button MENU (
in fig. 4) to display the
OSD menu on the screen.
2. There are a total of 5 OSD submenus divided by
categories. Select the desired submenu by pressing
the OSD button
<
or
>
(
and
in fig. 4; see section
“OSD Menu Functions”).
3. Press the button MENU (
in fig. 4) to activate the
selected function or associated submenu.
4. If you selected a submenu, now select the subfunction
you want using the OSD buttons
<
or
>
(
and
in
fig. 4).
5. Set the desired value using the OSD buttons
<
or
>
(
and
in fig. 4).
6. The current settings are automatically saved when
you return to the previous level or exit the OSD menu.
Repeat steps 2–5 to make further adjustments as
needed.
7. The OSD menu automatically disappears if no changes
are made for more than 45 seconds (default setting).
The current settings will be saved. You can close it
manually by pressing the button
AUTO
(
in fig. 4).

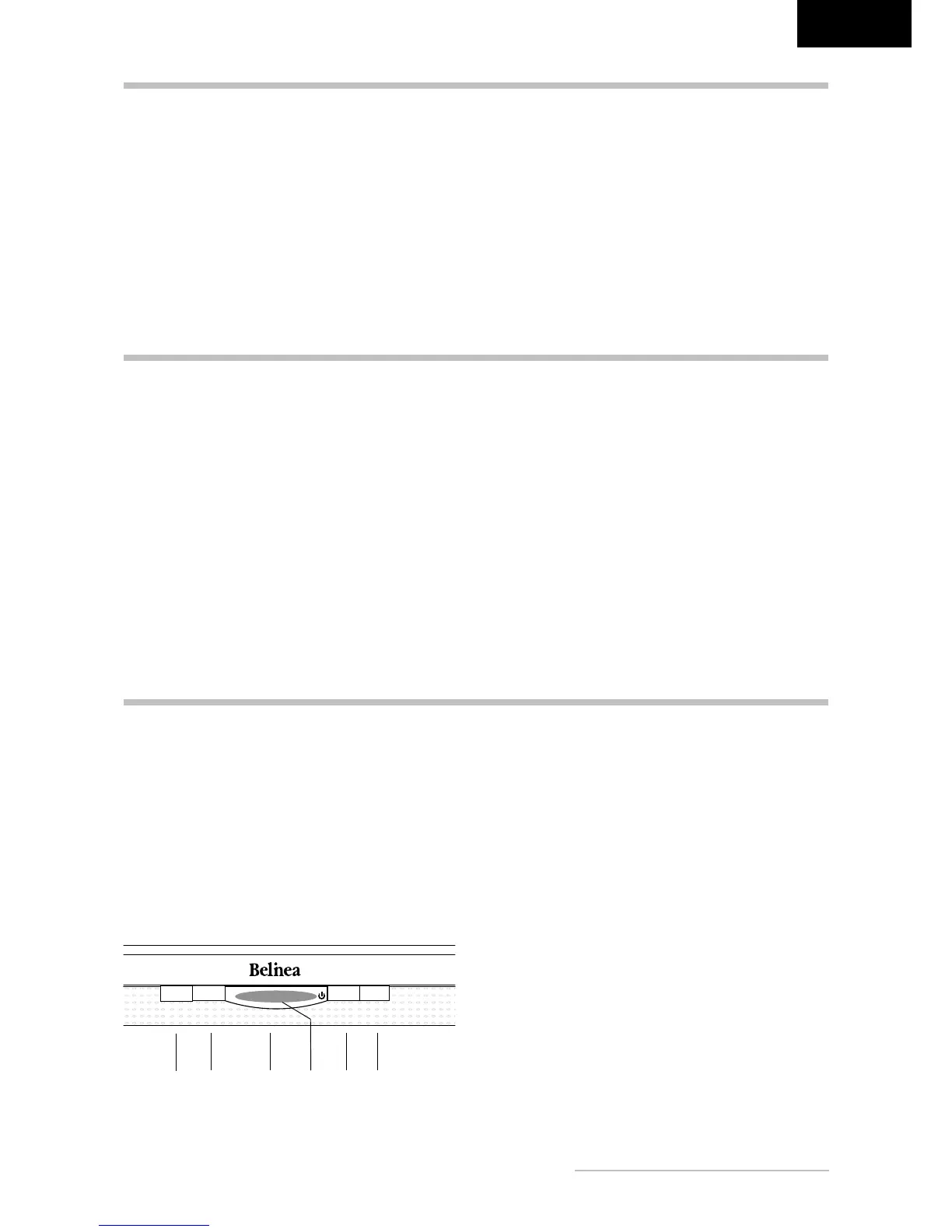

Figure 4. Monitor features
Monitor setup under Windows
®
9x/ME/2000
and XP:
If using the monitor under Windows
®
9x/ME/2000 or XP,
we strongly recommend installing the Belinea configura-
tion file. You can obtain this file from your Belinea dealer
or download it from the MAXDATA FTP server at ftp.
maxdata.com.
Here, click the “Belinea_Treiber_Driver” directory and
download the Belinea.inf and README_Belinea.TXT
files. Follow the installation instructions in the README_
Belinea.TXT file.
Monitor setup under Windows
®
NT 4.0:
Under Windows
®
NT 4.0 no separate setup file is required.
Select the vertical frequency and the number of colors
directly from within the “Settings” “Control Panel”
“Display” “Settings” menu.
